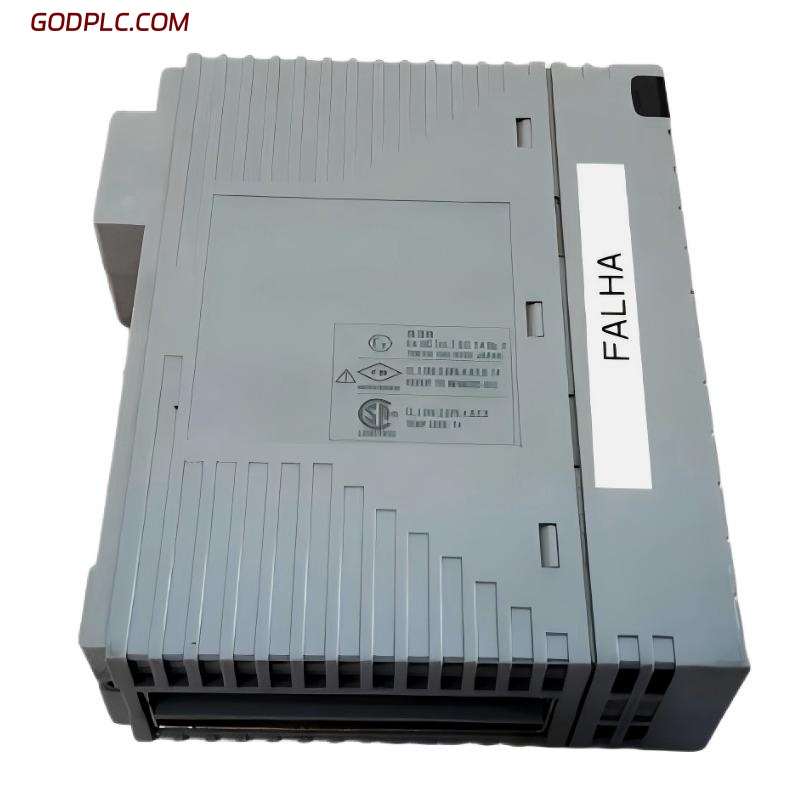

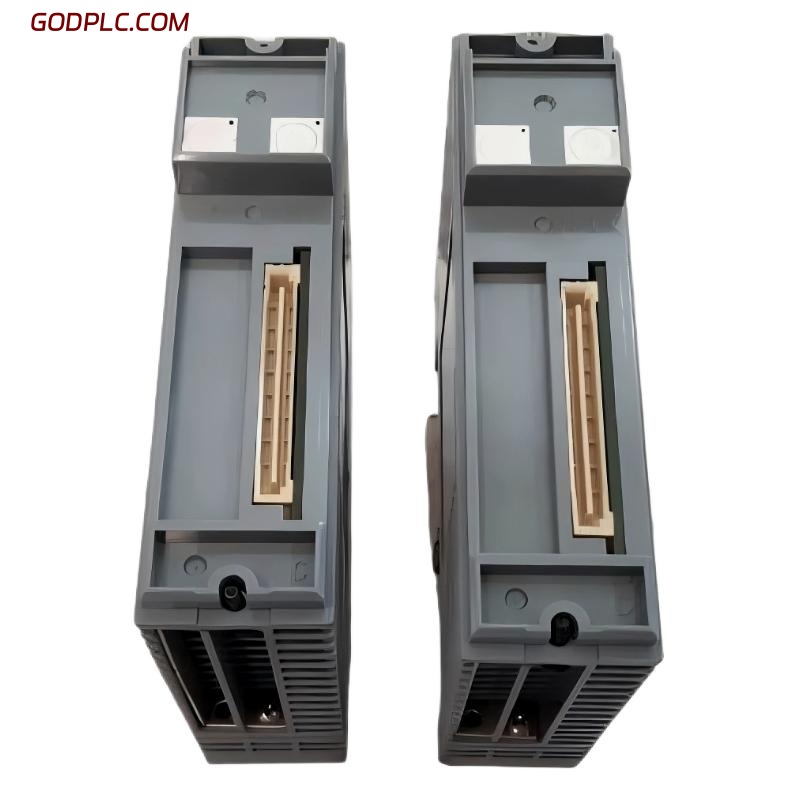

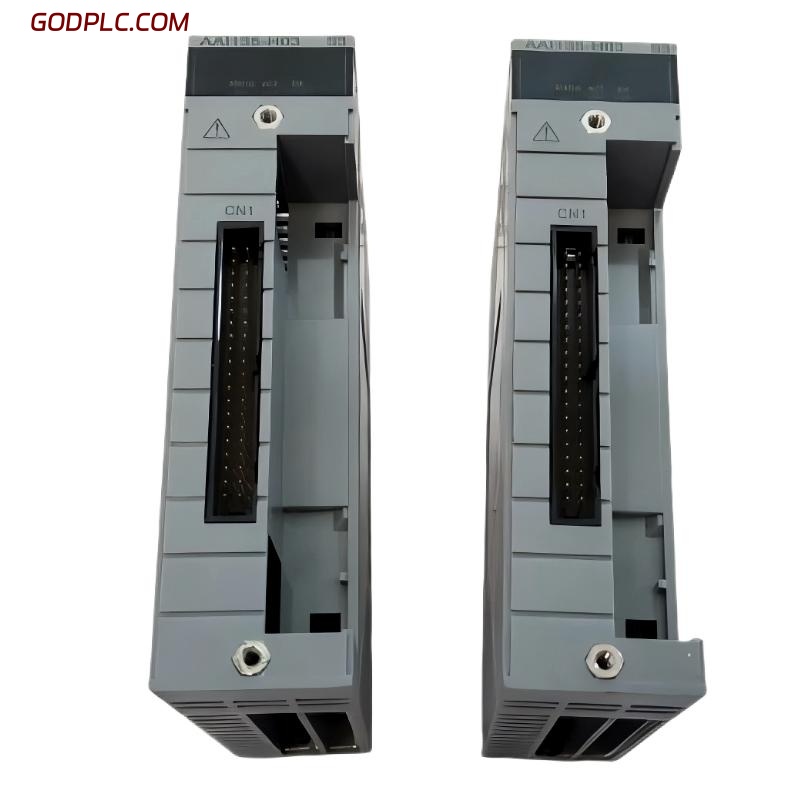

Yokogawa AAI135-S03 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | AAI135-S03 |
| Product Type | Analog Input Module |
| Input Channels | 8 channels |
| Input Signal Type | 4–20 mA DC (isolated) |
| Input Range | 4–20 mA |
| Input Resistance | 250 Ω (built-in resistor) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-system electrical isolation |
| Dielectric Strength | 1500 VAC (1 minute) |
| Power Supply | Supplied from base unit |
| Current Consumption | Approx. 350 mA |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | –25 to 75°C |
| Mounting Method | Rack-mounted (inside control cabinet) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
1. What type of input signals does the AAI135-S03 support?
The module supports 4–20 mA DC current input signals, commonly used with industrial transmitters.
2. Are the input channels electrically isolated?
Yes, the module provides electrical isolation between channels and between channels and the system to enhance noise immunity and operational safety.
3. What is the A/D conversion resolution of this module?
It features 16-bit analog-to-digital conversion for precise and stable signal acquisition.
4. Can voltage signals be connected directly?
This model is designed for current input. If voltage signals are required, they must be converted externally to a 4–20 mA signal before connection.
5. What are the typical application areas for this module?
It is widely used in DCS systems for monitoring process variables such as pressure, temperature, flow, and level.
6. How is the module powered?
The module receives power from the installed base unit or rack system and does not require a separate external power supply.
7. What protection features are included?
The module includes electrical isolation and overvoltage protection to ensure reliable operation in industrial environments.
8. Does the module support hot swapping?
Within compatible control system architectures, the module supports hot swapping, allowing replacement without shutting down the system.
Yokogawa AAI135-S03 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
