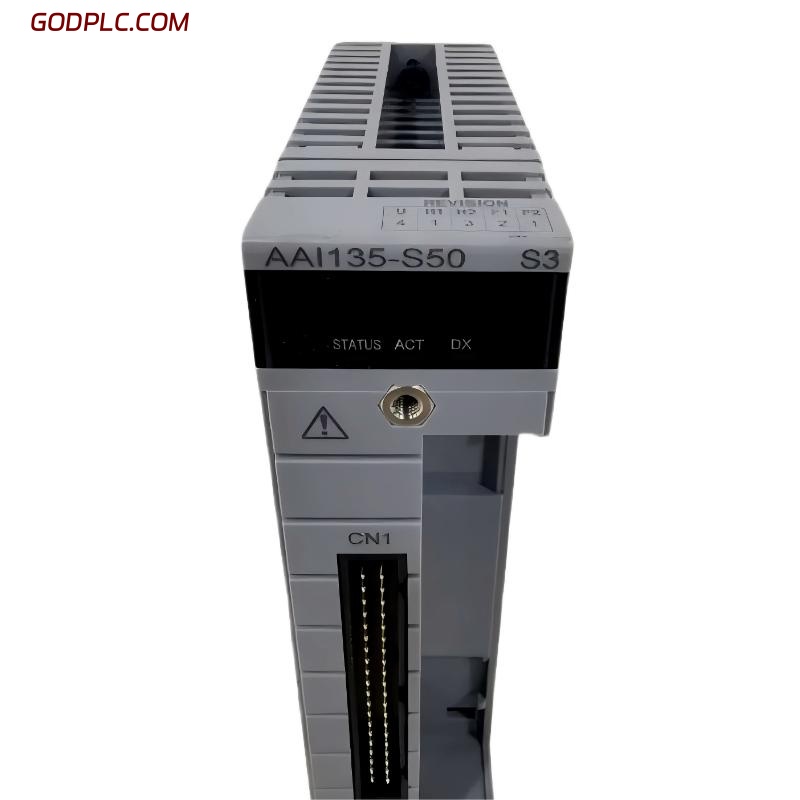

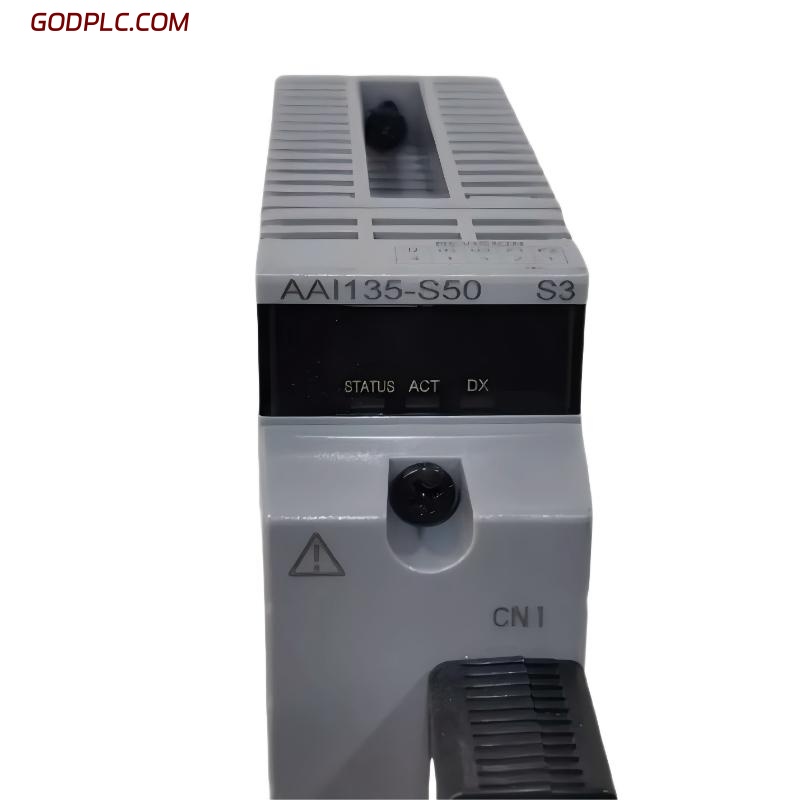

Yokogawa AAI135-S50 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | AAI135-S50 |
| Product Type | Analog Input Module |
| Input Channels | 8 channels |
| Input Signal Type | 4–20 mA DC (isolated) |
| Input Range | 4–20 mA |
| Input Resistance | 250 Ω (built-in resistor) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-system electrical isolation |
| Dielectric Strength | 1500 VAC (1 minute) |
| Power Supply | Supplied from base unit |
| Current Consumption | Approx. 350 mA |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | –25 to 75°C |
| Mounting Method | Rack-mounted (inside control cabinet) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
1. What type of signals does the AAI135-S50 accept?
The module accepts 4–20 mA DC analog current signals, typically used with field transmitters in process industries.
2. How many analog inputs are available?
The AAI135-S50 provides 8 independent input channels for simultaneous signal acquisition.
3. Are the input channels isolated from each other?
Yes, the module features electrical isolation between channels and between the channels and the system to improve reliability and noise resistance.
4. What level of measurement accuracy can be expected?
The module provides ±0.1% of full-scale accuracy, suitable for precise industrial process control applications.
5. What type of A/D conversion does this module use?
It utilizes 16-bit analog-to-digital conversion to ensure high-resolution and stable measurement performance.
6. How is the module powered within the system?
The module receives power directly from the compatible base unit or rack system; no external power supply is required.
7. Does the module include signal protection features?
Yes, it incorporates isolation and overvoltage protection to safeguard against electrical disturbances in industrial environments.
8. Is the module suitable for DCS integration?
Yes, the AAI135-S50 is designed for seamless integration into distributed control systems (DCS) for monitoring variables such as pressure, temperature, flow, and level.
Yokogawa AAI135-S50 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
