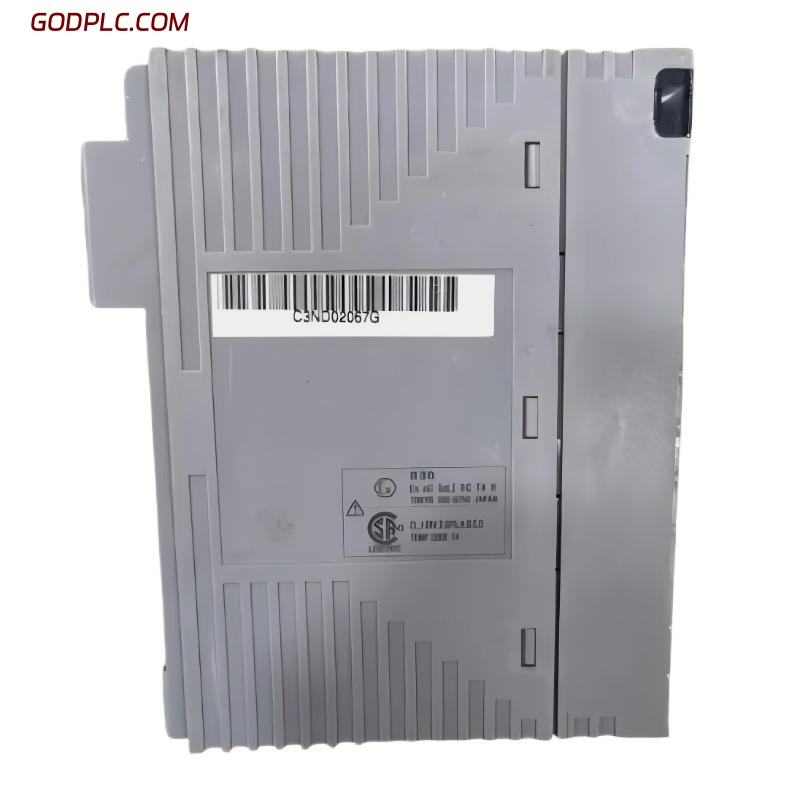

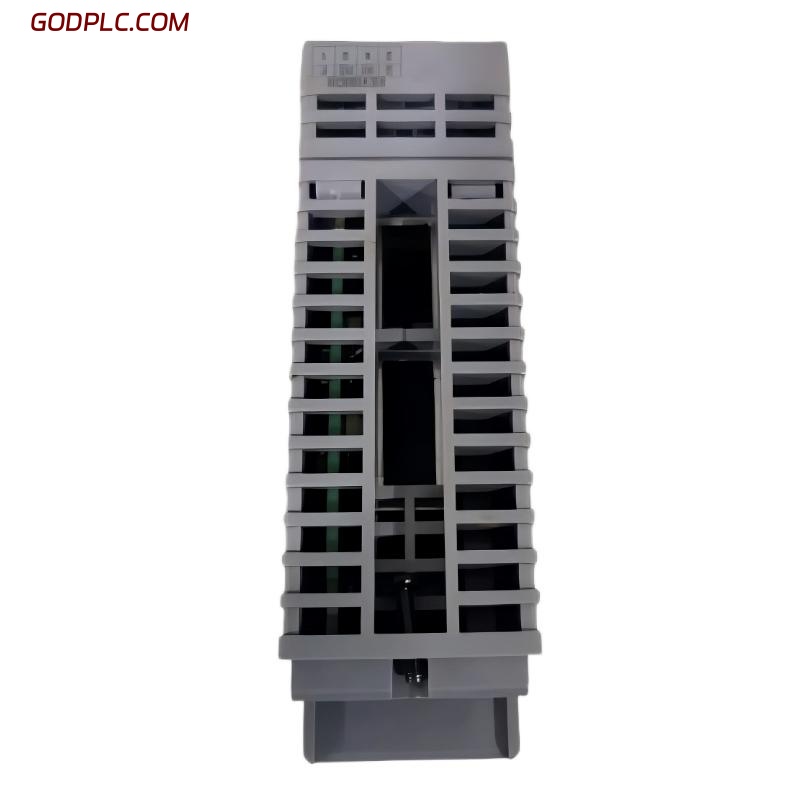

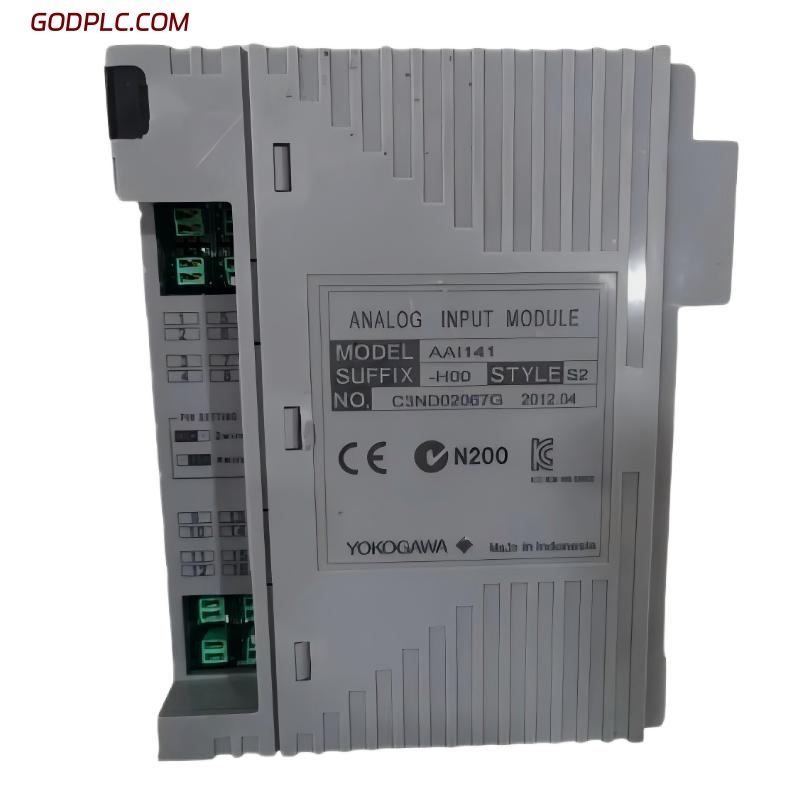

Yokogawa AAI141-H00 S2 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | AAI141-H00 S2 |
| Product Type | Analog Input Module |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA DC (isolated) |
| Input Range | 4–20 mA |
| Input Resistance | 250 Ω (built-in resistor) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-system electrical isolation |
| Dielectric Strength | 1500 VAC (1 minute) |
| Power Supply | Supplied from base unit |
| Current Consumption | Approx. 450 mA |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | –25 to 75°C |
| Mounting Method | Rack-mounted (inside control cabinet) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.2 kg |
FAQ
1. What type of input signals does the AAI141-H00 S2 support?
The module supports 4–20 mA DC analog current input signals widely used in industrial transmitters.
2. How many input channels are available on this module?
The AAI141-H00 S2 provides 16 independent analog input channels for high-density signal acquisition.
3. Are the channels electrically isolated?
Yes, the module features channel-to-channel and channel-to-system isolation to enhance signal reliability and reduce electrical interference.
4. What is the measurement accuracy of this module?
It offers ±0.1% of full-scale accuracy, suitable for precise process monitoring and control.
5. What A/D conversion resolution is used?
The module utilizes 16-bit analog-to-digital conversion to ensure stable and high-resolution measurements.
6. How is the module powered within the system?
Power is supplied directly from the compatible base unit or rack assembly, eliminating the need for an external power source.
7. Does the module provide protection against electrical disturbances?
Yes, it includes electrical isolation and overvoltage protection to maintain stable operation in industrial environments.
8. What applications is this module typically used for?
The AAI141-H00 S2 is commonly integrated into distributed control systems (DCS) for monitoring process variables such as pressure, temperature, flow, and level.
Yokogawa AAI141-H00 S2 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
