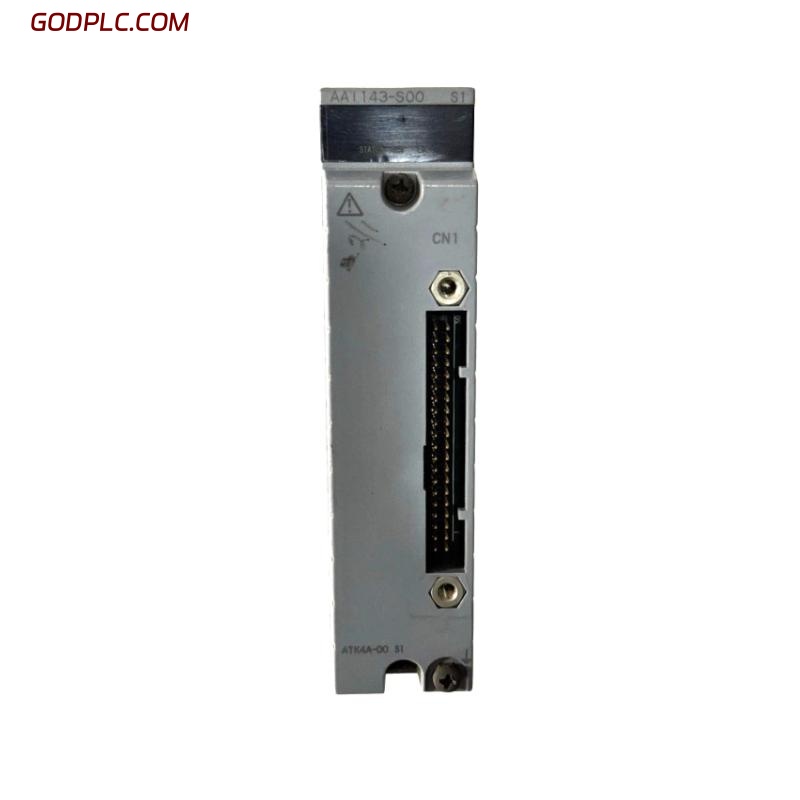

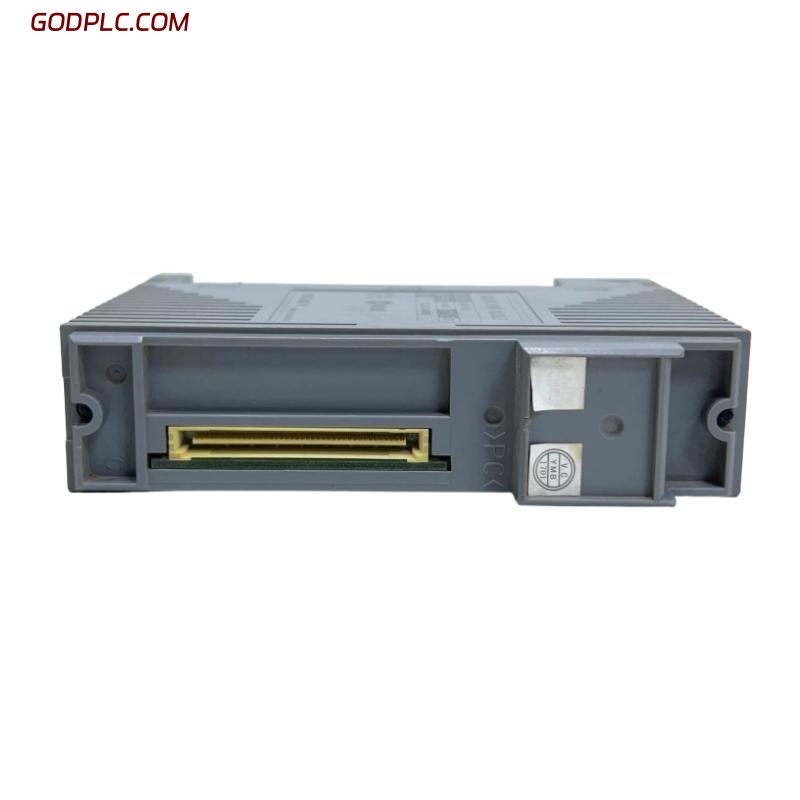

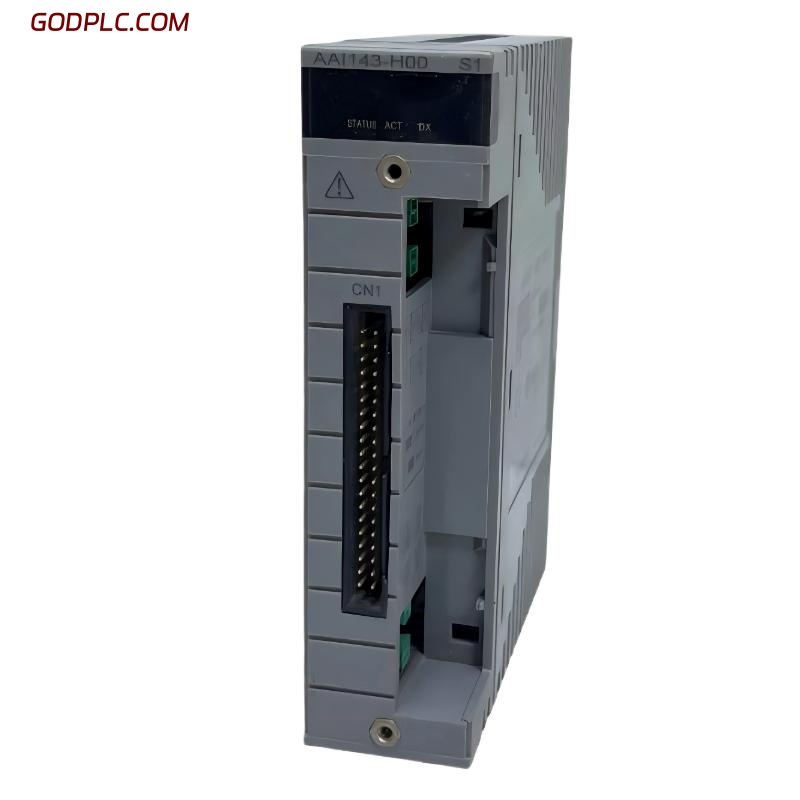

Yokogawa AAI143-H5 Analog input module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H5 |
| Product Type | Analog Input Module |
| Manufacturer | Yokogawa |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA analog current |
| Input Range | 4–20 mA |
| Resolution | 16-bit |
| Input Accuracy | ±0.1% of full scale |
| Isolation | Electrical isolation between field signals and system |
| Signal Conversion | High-precision A/D conversion |
| Data Update Rate | High-speed cyclic update supported |
| Communication Interface | Backplane communication with control system |
| Diagnostic Functions | Built-in self-diagnostics and signal monitoring |
| Redundancy Support | Compatible with redundant control systems |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −25°C to 75°C |
| Mounting Method | Rack-mounted installation |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Q1: What types of field signals can the module receive?
A1: It is designed to receive standard 4–20 mA analog current signals commonly used by industrial transmitters.
Q2: How many input signals can be connected to the module?
A2: The module supports up to 16 independent analog input channels for simultaneous signal acquisition.
Q3: Does the module provide electrical isolation?
A3: Yes. Electrical isolation is provided between field input circuits and the internal system electronics to reduce noise interference and enhance system protection.
Q4: Can the module be used in redundant control systems?
A4: Yes, it is compatible with redundant system architectures to improve system reliability and availability.
Q5: What diagnostic capabilities are included?
A5: The module includes built-in self-diagnostics that monitor internal circuitry, communication status, and input signal conditions.
Q6: How is measurement accuracy maintained?
A6: High-resolution A/D conversion and internal calibration mechanisms ensure stable and accurate signal acquisition over long-term operation.
Q7: What types of field devices are typically connected?
A7: Common devices include pressure transmitters, temperature transmitters, flow meters, level transmitters, and other instruments that output 4–20 mA signals.
Q8: In which industrial applications is this module commonly used?
A8: It is widely used in process automation industries such as power generation, oil and gas, petrochemical processing, metallurgy, and manufacturing systems.
Yokogawa AAI143-H5 Analog input module is in stock. Please contact us for a quick quote and competitive pricing.
