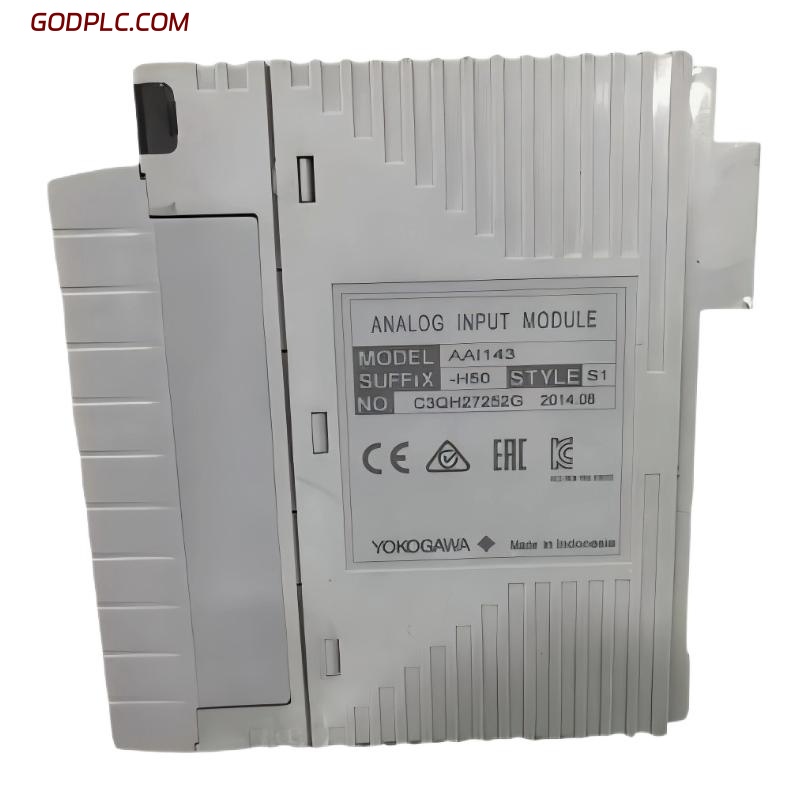

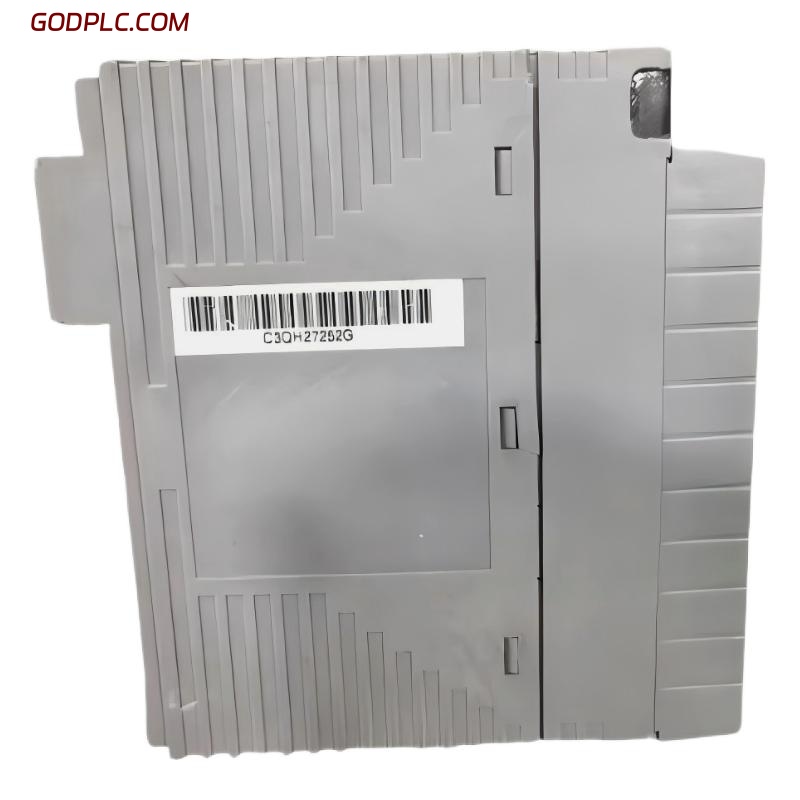

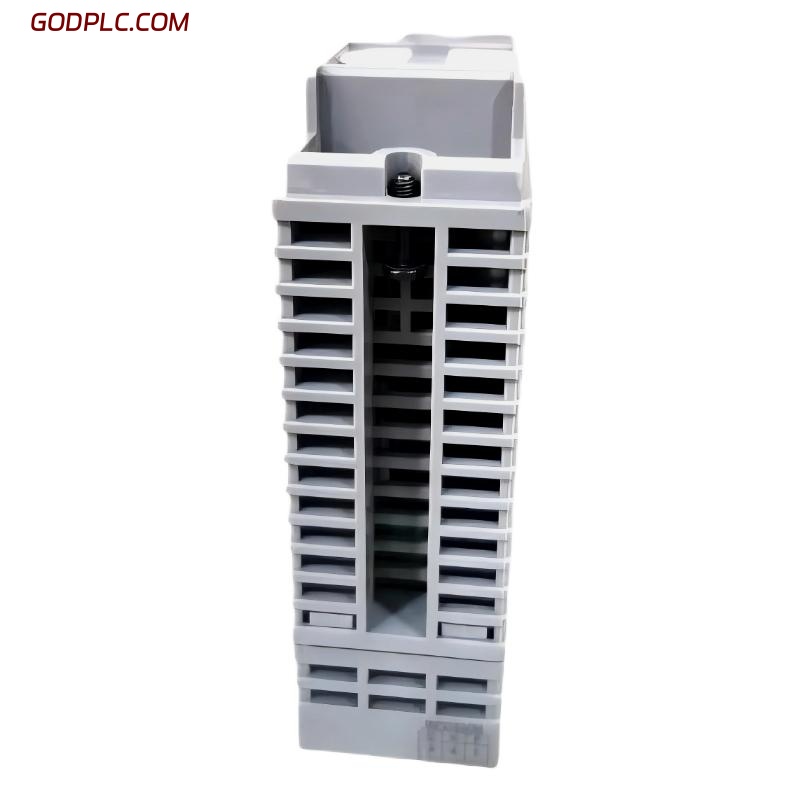

Yokogawa AAI143-H50/A4S10 Analog input module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H50/A4S10 |
| Product Type | Analog Input Module |
| Manufacturer | Yokogawa |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA analog current |
| Input Range | 4–20 mA |
| Resolution | 16-bit |
| Input Accuracy | ±0.1% of full scale |
| Electrical Isolation | Isolation between channels and system |
| Signal Conversion | Integrated high-precision A/D conversion |
| Communication Method | Communication via system backplane |
| Data Update Rate | High-speed cyclic scanning |
| Diagnostic Features | Channel status monitoring and module self-diagnostics |
| Redundancy Support | Compatible with redundant control systems |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +75°C |
| Mounting Method | Rack-mounted installation |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Q1: What type of field signals can this module acquire?
A1: It is designed to acquire standard 4–20 mA analog current signals commonly used by industrial transmitters and instrumentation.
Q2: How many input channels are available?
A2: The module provides 16 independent analog input channels for simultaneous signal acquisition.
Q3: How does the module ensure measurement stability in industrial environments?
A3: It incorporates electrical isolation, noise filtering, and high-precision analog-to-digital conversion to reduce interference and ensure stable measurements.
Q4: Can the module be used in redundant control system configurations?
A4: Yes, it supports redundant system architectures, helping improve overall control system reliability and availability.
Q5: What diagnostic capabilities are included?
A5: The module features built-in diagnostics that monitor channel status, internal operation, and communication conditions, allowing early detection of faults.
Q6: How are analog signals converted for system processing?
A6: The module uses a high-precision A/D converter to transform the incoming analog current signals into digital data that can be processed by the control system.
Q7: What types of field devices are typically connected to this module?
A7: Typical devices include pressure transmitters, temperature transmitters, flow meters, and level transmitters that output 4–20 mA signals.
Q8: In which industrial applications is this module commonly used?
A8: It is widely used in power generation, oil and gas processing, chemical plants, manufacturing automation, and other large-scale process control systems.
Yokogawa AAI143-H50/A4S10 Analog input module is in stock. Please contact us for a quick quote and competitive pricing.
