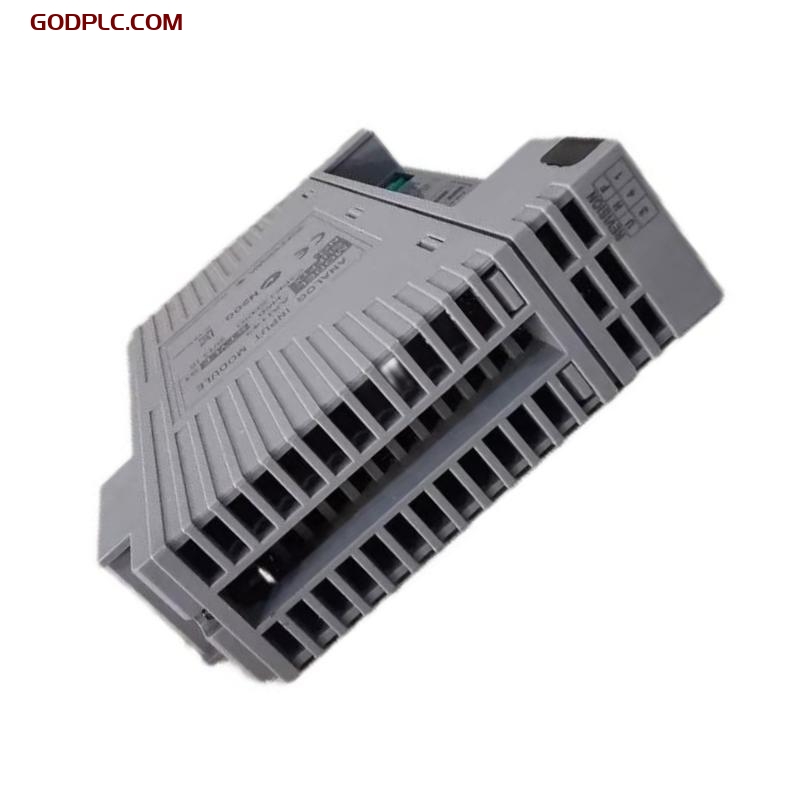

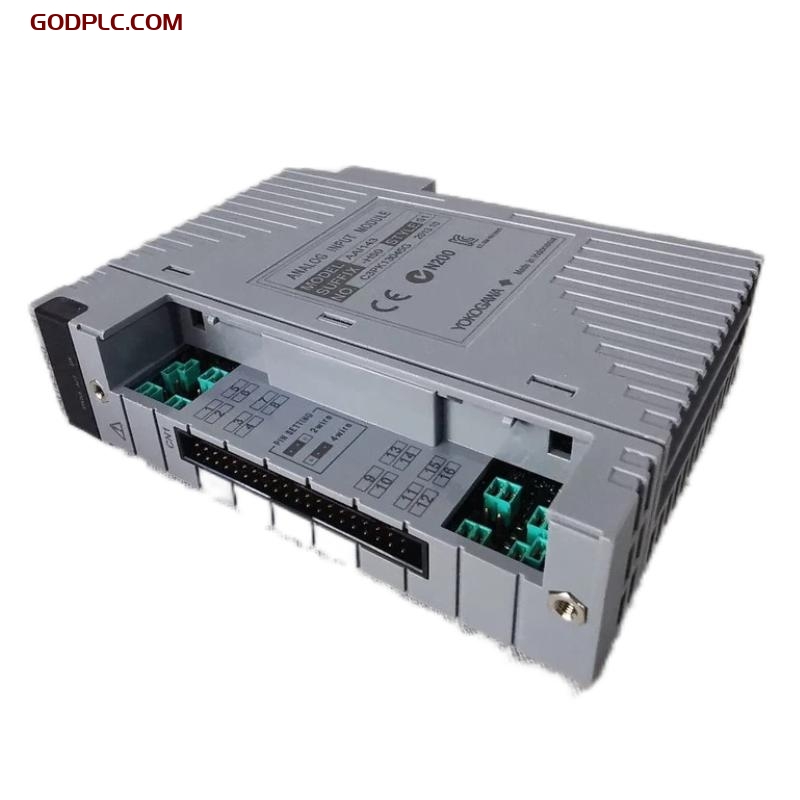

Yokogawa AAI143-H50/K4A00 Analog Input Module
Product Overview
The Yokogawa AAI143-H50/K4A00 Analog Input Module is a high-performance 16-channel module designed for accurate and stable analog signal acquisition within Yokogawa’s CENTUM series Distributed Control Systems (DCS). This module supports a variety of analog input types and is used to monitor critical process parameters in real-time, ensuring reliable performance in complex industrial environments.
With a focus on precision, flexibility, and robust integration, the AAI143-H50/K4A00 is well-suited for use in industries such as oil & gas, petrochemical, power, and water treatment. Its modular construction and diagnostics features provide efficient configuration and dependable operation over the long term.
Key Features
-
16-Channel Input: Supports simultaneous acquisition of up to 16 analog signals
-
Multi-Signal Compatibility: Accepts standard industrial signals including 4–20 mA and 1–5 V
-
High Accuracy & Stability: Delivers precise measurement for process optimization
-
Channel Isolation: Provides isolation between channels and from ground for safe operation
-
Online Replacement: Hot-swappable without system shutdown
-
System Integration: Fully compatible with Yokogawa’s CENTUM VP systems
-
Self-Diagnostics: Monitors module health and reports faults for improved maintainability
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model Number | AAI143-H50/K4A00 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Analog Input Module |
| Number of Channels | 16 Channels |
| Mounting Method | Mounted on N-IO base plate |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Signal Types | 4–20 mA, 1–5 V |
| Input Resistance | Approx. 250 Ω (for current input) |
| Accuracy | ±0.1% of span (typical) |
| Isolation | Channel-to-channel and channel-to-ground |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Supply | Supplied via base unit |
| Protection Class | IP20 |
Industry Applications
-
Oil & Gas: Captures precise analog data in pipelines, drilling rigs, and refineries
-
Chemical Processing: Monitors temperature, flow, and pressure for process safety and efficiency
-
Power Generation: Supports analog monitoring in turbines, boilers, and substations
-
Water & Wastewater: Tracks flow rates, pressure, and chemical dosing levels
-
Pharmaceuticals: Enables controlled monitoring of critical parameters in cleanroom environments
-
Food & Beverage: Assists in quality control and process automation by tracking analog variables
The Yokogawa AAI143-H50/K4A00 Analog Input Module is engineered to provide accurate and dependable analog signal monitoring in sophisticated industrial systems. Its high reliability, ease of integration, and robust diagnostics make it a preferred choice for control engineers across various sectors.
Yokogawa AAI143-H50/K4A00 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
