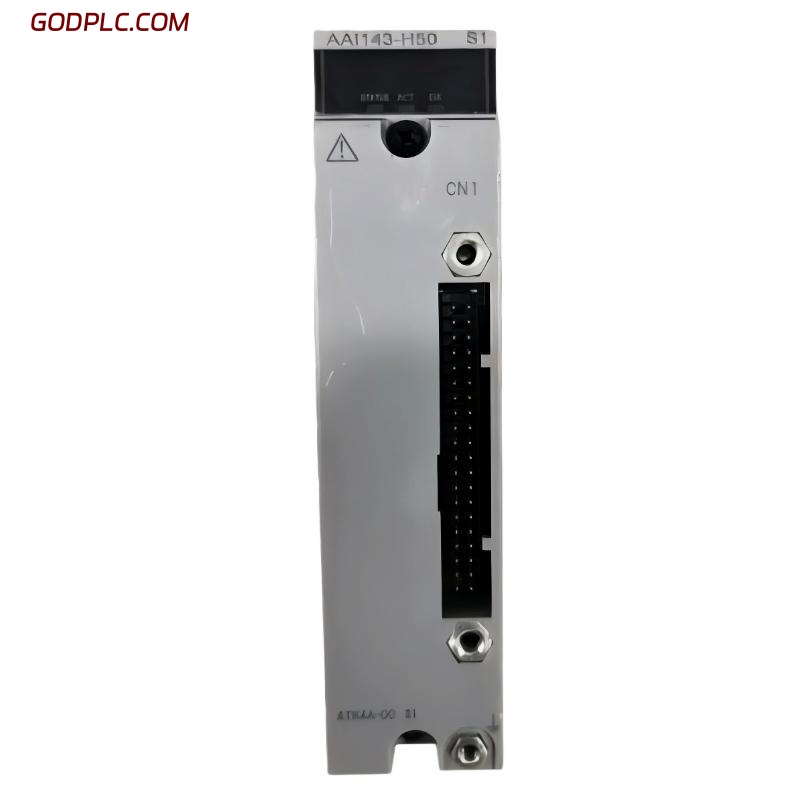

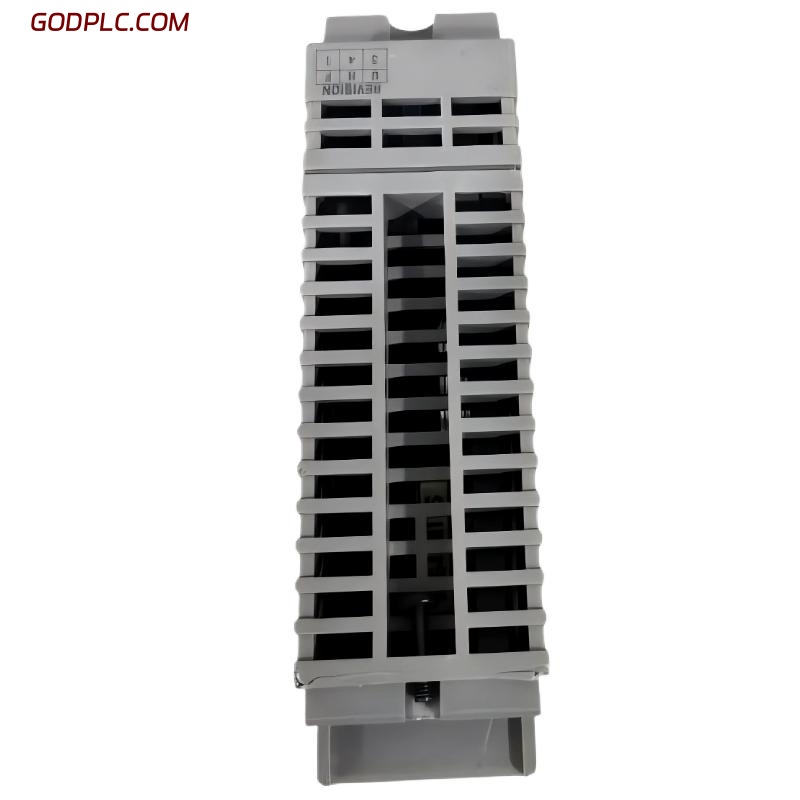

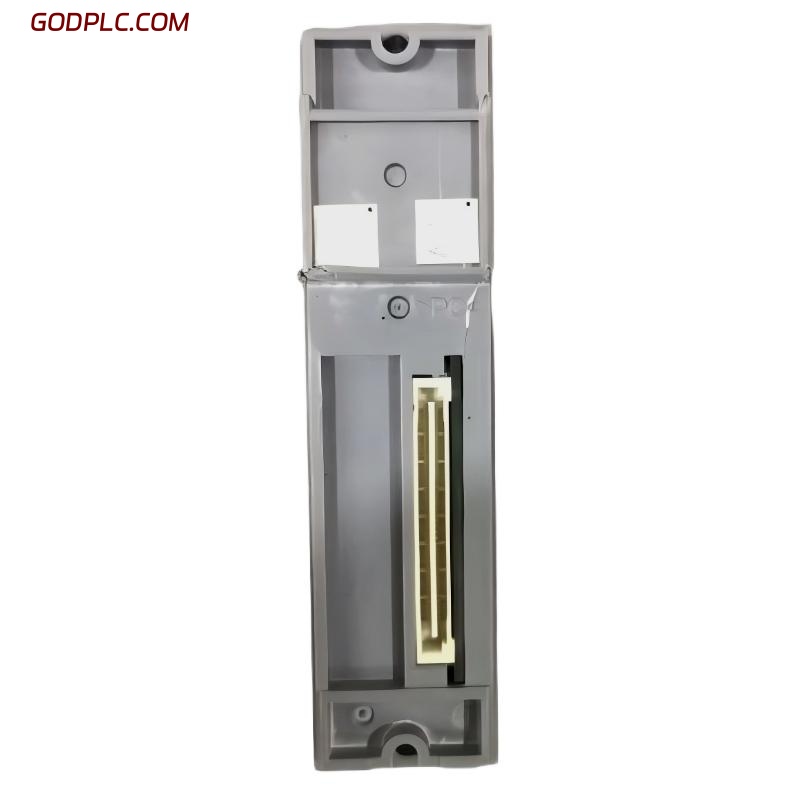

Yokogawa AAI143-H50 S1 Analog input module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H50 S1 |
| Product Type | Analog Input Module |
| Manufacturer | Yokogawa |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA analog current |
| Input Range | 4–20 mA |
| Resolution | 16-bit |
| Input Accuracy | ±0.1% of full scale |
| Isolation | Electrical isolation between field circuits and system |
| Signal Conversion | High-precision analog-to-digital conversion |
| Communication Interface | Backplane communication with the control system |
| Update Rate | High-speed cyclic data acquisition |
| Diagnostic Functions | Built-in self-diagnostics and signal status monitoring |
| Redundancy Compatibility | Supports redundant system configurations |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −25°C to 75°C |
| Mounting Method | Rack-mounted installation |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Q1: What type of analog signals can the module accept?
A1: The module is designed to accept standard 4–20 mA current signals commonly used by industrial transmitters and field instruments.
Q2: How many field devices can be connected simultaneously?
A2: Up to 16 independent analog input channels can be connected, allowing the module to collect multiple process signals at the same time.
Q3: How does the module ensure signal stability in industrial environments?
A3: Electrical isolation and internal filtering help reduce electrical noise and interference from field wiring and nearby equipment.
Q4: Can the module operate in redundant control architectures?
A4: Yes, it is compatible with redundant system configurations to enhance system availability and operational reliability.
Q5: What diagnostic capabilities are integrated into the module?
A5: The module includes built-in diagnostics that monitor channel status, internal circuits, and communication conditions with the control system.
Q6: How are analog signals converted into digital data?
A6: The module uses high-precision analog-to-digital converters to transform incoming current signals into digital values for processing by the control system.
Q7: What types of field instruments are typically connected to this module?
A7: Typical devices include pressure transmitters, flow transmitters, temperature transmitters, and level transmitters that output 4–20 mA signals.
Q8: In what types of industrial systems is this module commonly deployed?
A8: It is widely used in distributed control systems for industries such as power generation, oil and gas processing, petrochemical plants, and large-scale manufacturing automation.
Yokogawa AAI143-H50 S1 Analog input module is in stock. Please contact us for a quick quote and competitive pricing.
