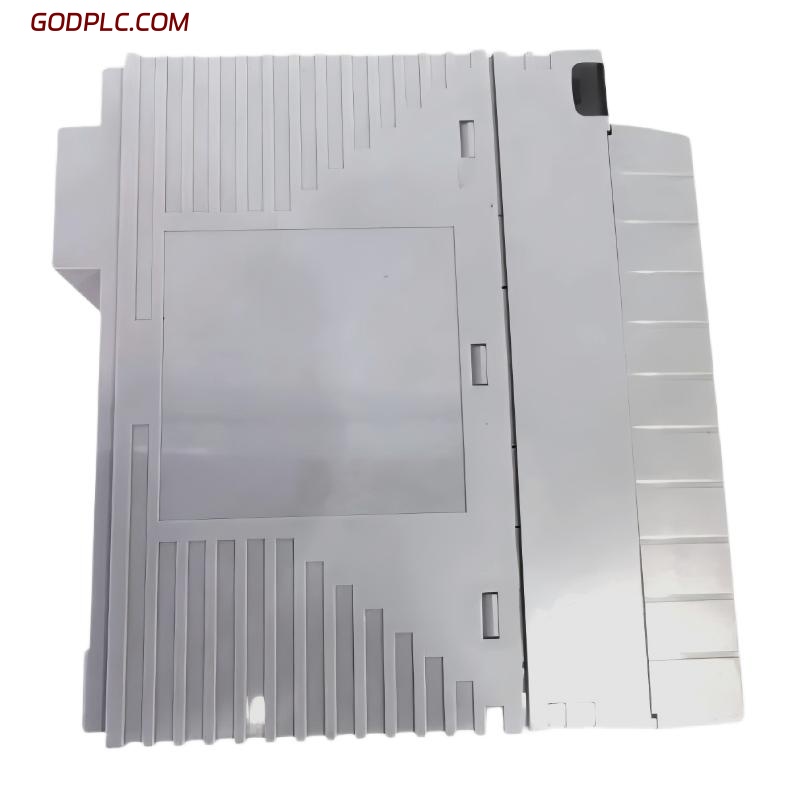

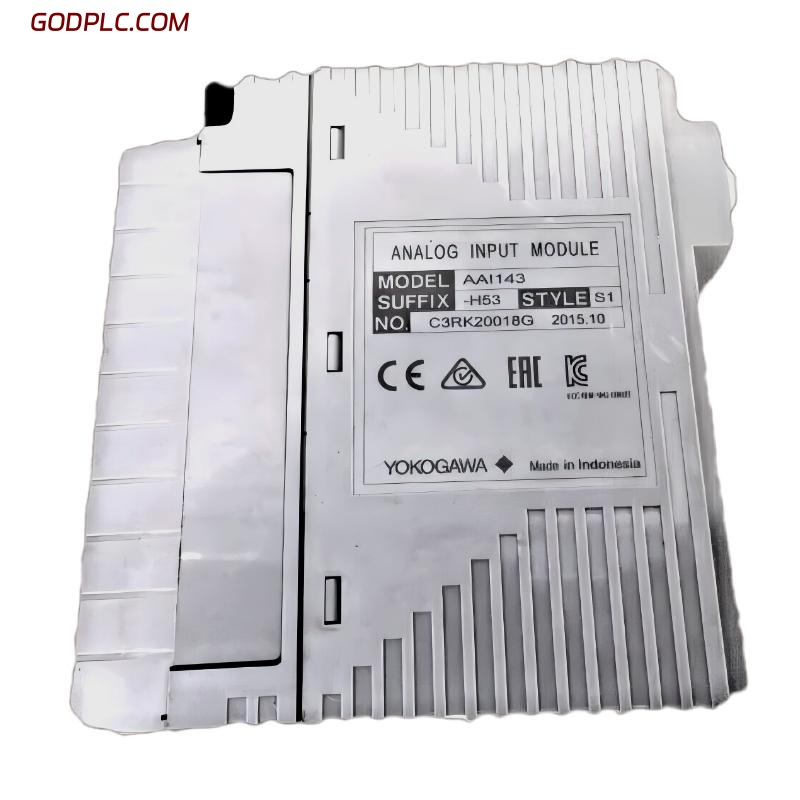

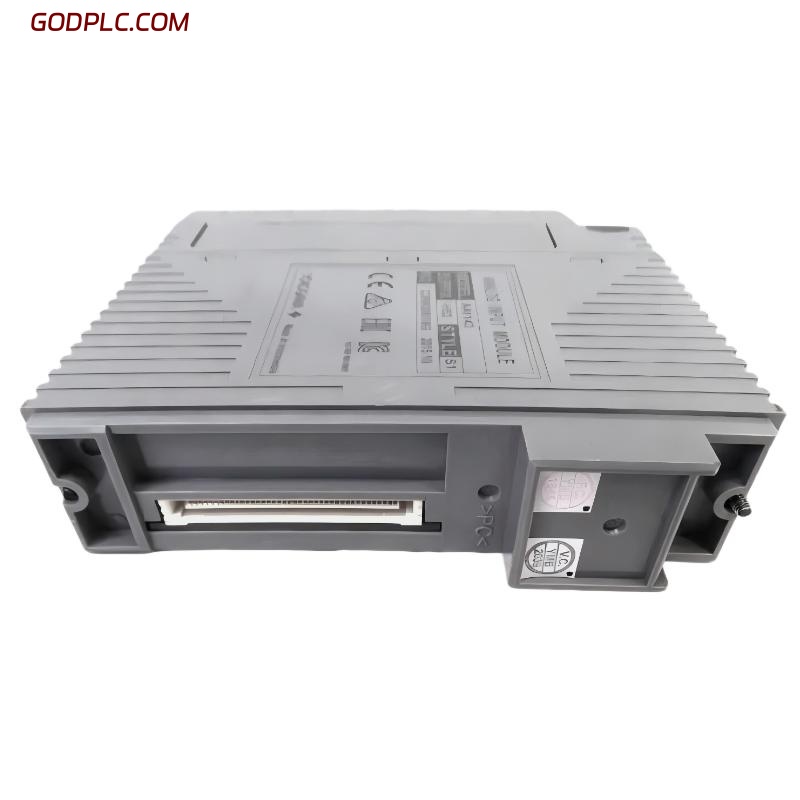

Yokogawa AAI143-H53/A4S00 Analog input module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H53/A4S00 |
| Product Type | Analog Input Module |
| Manufacturer | Yokogawa |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA analog current |
| Input Range | 4–20 mA |
| Resolution | 16-bit |
| Input Accuracy | ±0.1% of full scale |
| Electrical Isolation | Isolation between channels and system |
| Signal Conversion | Built-in high-precision A/D converter |
| Communication Method | Communication with the control system via system backplane |
| Data Processing | Real-time signal acquisition and conversion |
| Diagnostic Functions | Channel monitoring and internal self-diagnostics |
| Redundancy Support | Compatible with redundant control system configurations |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +75°C |
| Mounting Method | Rack-mounted installation |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Q1: What type of signals can this module receive from field devices?
A1: It is designed to receive standard 4–20 mA analog current signals generated by industrial transmitters and process instruments.
Q2: How many analog input channels are available on this module?
A2: The module provides 16 independent analog input channels, allowing simultaneous acquisition of multiple field signals.
Q3: How does the module ensure reliable signal measurement in industrial environments?
A3: It incorporates electrical isolation, noise suppression circuitry, and precision A/D conversion to maintain stable and accurate signal acquisition.
Q4: Can this module be used in redundant control system configurations?
A4: Yes, it supports operation in redundant control system architectures to improve system reliability and continuous operation.
Q5: What diagnostic capabilities are included in the module?
A5: The module features built-in diagnostics that monitor channel status, communication conditions, and internal module operation.
Q6: How are analog signals processed within the control system?
A6: Incoming current signals are converted into digital values through a high-precision A/D converter and transmitted to the controller through the system backplane.
Q7: What types of industrial instruments are typically connected to this module?
A7: Typical devices include pressure transmitters, temperature transmitters, flow transmitters, and level transmitters that provide 4–20 mA output signals.
Q8: In which industrial applications is this module commonly used?
A8: It is widely used in industries such as power generation, petrochemical processing, oil and gas facilities, manufacturing automation, and large-scale process control systems.
Yokogawa AAI143-H53/A4S00 Analog input module is in stock. Please contact us for a quick quote and competitive pricing.
