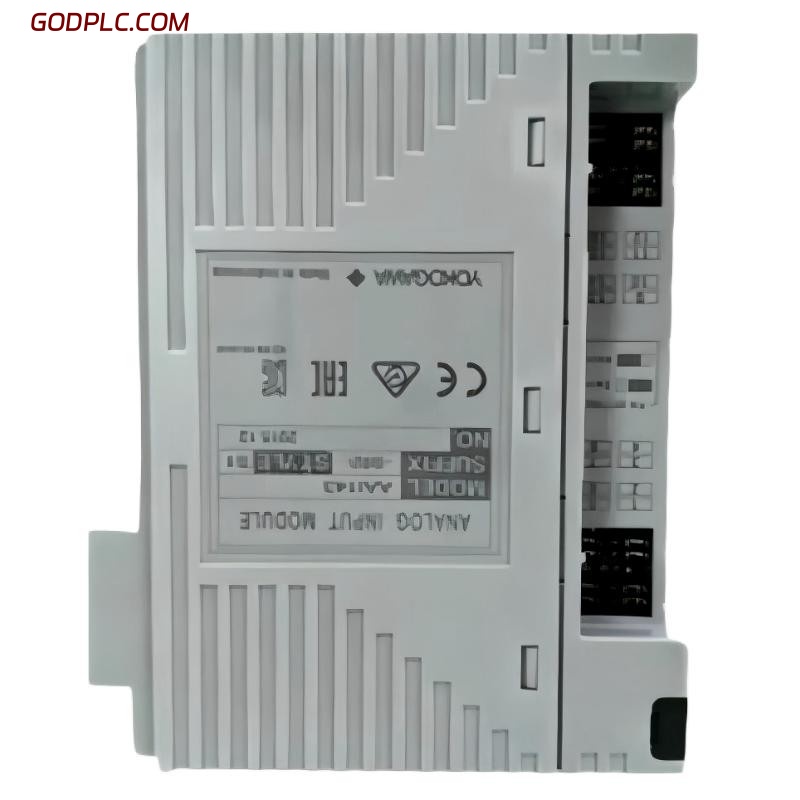

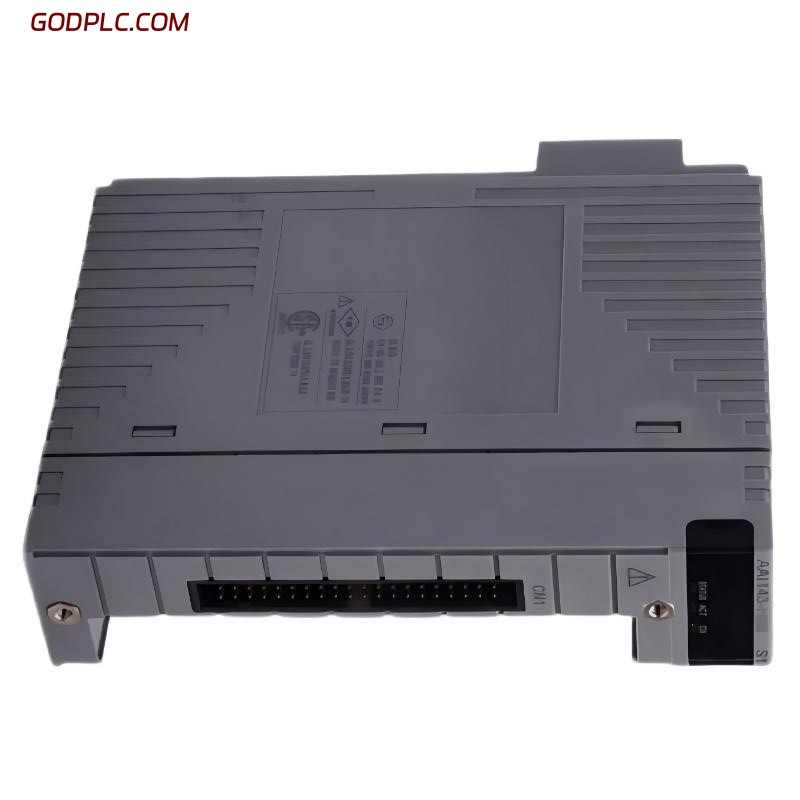

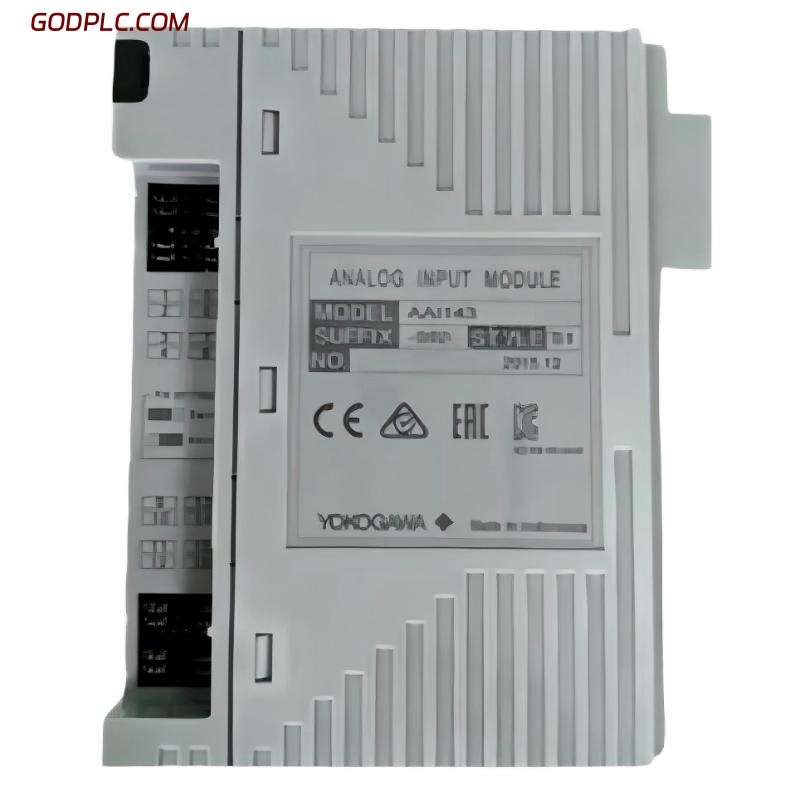

Yokogawa AAI143-S50/A4S10 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | AAI143-S50/A4S10 |
| Manufacturer | Yokogawa |
| Product Type | Analog Input Module |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA DC |
| Input Range | 4–20 mA |
| A/D Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Input Resistance | Approx. 250–350 Ω |
| Isolation | Electrical isolation between input and system |
| Data Update Time | Approx. 10 ms |
| Transmitter Supply | 24 V DC loop power |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Compatible Systems | Yokogawa CENTUM VP / CS 3000 |
| Mounting Method | Rack-mounted I/O module |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
1. What is the function of an analog input module in a control system?
It receives analog current signals from field instruments and converts them into digital data that can be processed by the distributed control system.
2. How many field transmitters can be connected at the same time?
The module provides sixteen independent channels, allowing up to sixteen transmitters or sensors with current outputs to be connected simultaneously.
3. What types of industrial instruments are typically connected to this module?
Commonly connected devices include pressure transmitters, temperature transmitters, flow meters, and level transmitters that output standard 4–20 mA signals.
4. How does the module maintain stable signal acquisition?
It uses high-resolution analog-to-digital conversion along with internal filtering and reference circuits to ensure stable and accurate signal processing.
5. Does the module help protect the control system from field interference?
Yes, electrical isolation between the input circuits and the system backplane helps reduce the impact of electrical noise and disturbances.
6. Can the module be used in systems with redundant architectures?
Yes, when installed in systems designed for redundancy, it can operate as part of a redundant I/O configuration to improve system reliability.
7. Is configuration required before commissioning the module?
The module must be configured through the control system engineering software to define channel parameters, signal types, and diagnostic functions.
8. In which industrial sectors is this module commonly applied?
It is widely used in industries such as oil and gas, power generation, chemical processing, water treatment, and other process automation environments.
Yokogawa AAI143-S50/A4S10 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
