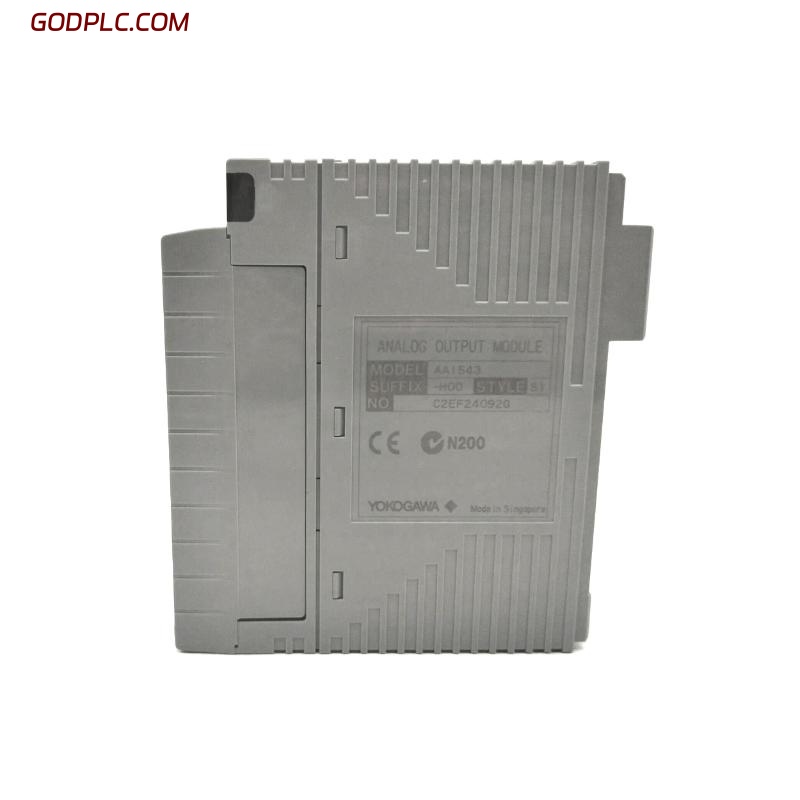

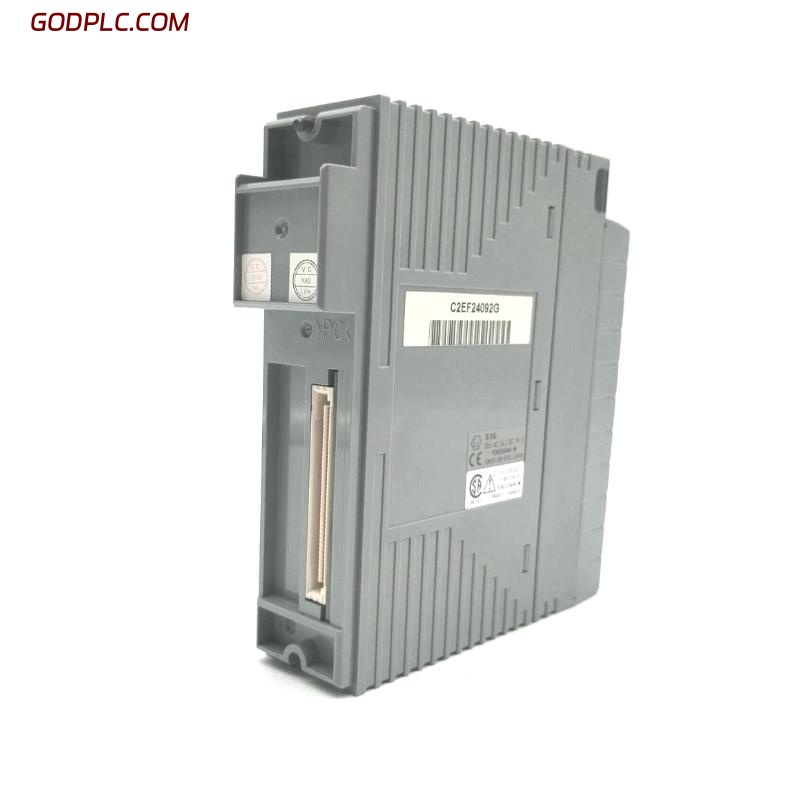

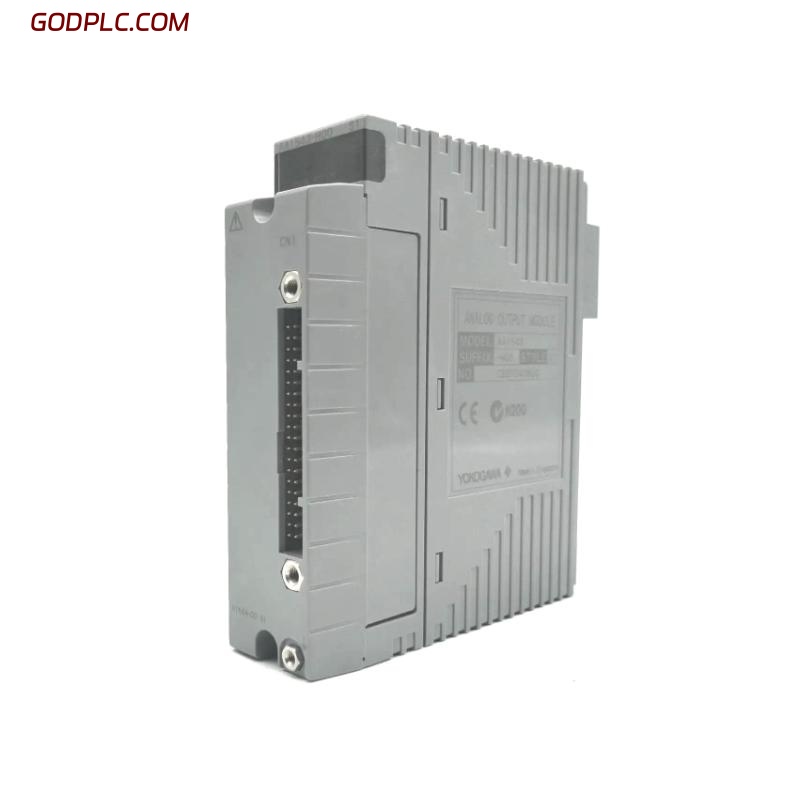

Yokogawa AAI543-H00/K4A00 Analog Output Modules
Product Overview
The Yokogawa AAI543-H00/K4A00 Analog Output Module is designed to provide reliable and accurate analog signal output for process control systems. This module supports a variety of output types, including 4–20 mA and 0–10 V signals, making it suitable for a wide range of industrial applications. With its high-resolution digital-to-analog conversion and built-in diagnostics, it ensures optimal signal transmission for controlling actuators, valves, and other process equipment. Compatible with Yokogawa’s Centum and ProSafe systems, it provides seamless integration and high reliability for critical process operations.
Key Features
-
Versatile Output Types – Supports 4–20 mA and 0–10 V output signals, making it adaptable to various applications
-
High Resolution – 16-bit digital-to-analog conversion for precise output signal control
-
Built-in Diagnostics – Monitors for faults, such as output errors or signal anomalies, to ensure system integrity
-
Channel-to-Channel Isolation – Prevents signal interference and cross-talk between channels
-
Seamless Integration – Fully compatible with Yokogawa Centum and ProSafe control systems
-
Hot-Swappable – Allows module replacement without system downtime, enhancing system availability and uptime
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 4 isolated analog output channels |
| Output Signal | 4–20 mA, 0–10 V |
| Resolution | 16-bit digital-to-analog conversion |
| Output Impedance | 250 Ω (current output) |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | 24 VDC (nominal), supplied via system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (Enclosed unit) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System | Yokogawa Centum, ProSafe systems |
| Application Type | Analog signal output for process control |
| Redundancy Support | Supported with redundant systems |
| Field Device Support | Actuators, valves, and other process equipment with standard input signals |
Industry Applications
-
Chemical Processing – Provides reliable output signals for controlling pumps, valves, and other critical process equipment
-
Power Generation – Analog output control for regulating turbines, compressors, and boiler systems
-
Oil & Gas – Signal output for controlling valves, actuators, and other devices in upstream and downstream operations
-
Pharmaceutical – Precision control of equipment such as mixers and flow regulators for pharmaceutical production processes
-
Water and Wastewater – Accurate analog output for regulating pumps, motors, and other equipment in water treatment plants
The Yokogawa AAI543-H00/K4A00 Analog Output Module ensures high-performance signal output for industrial process control. Its flexible output options, high-resolution conversion, and robust diagnostics make it a reliable choice for critical applications that require precise and continuous control.
Yokogawa AAI543-H00/K4A00 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
