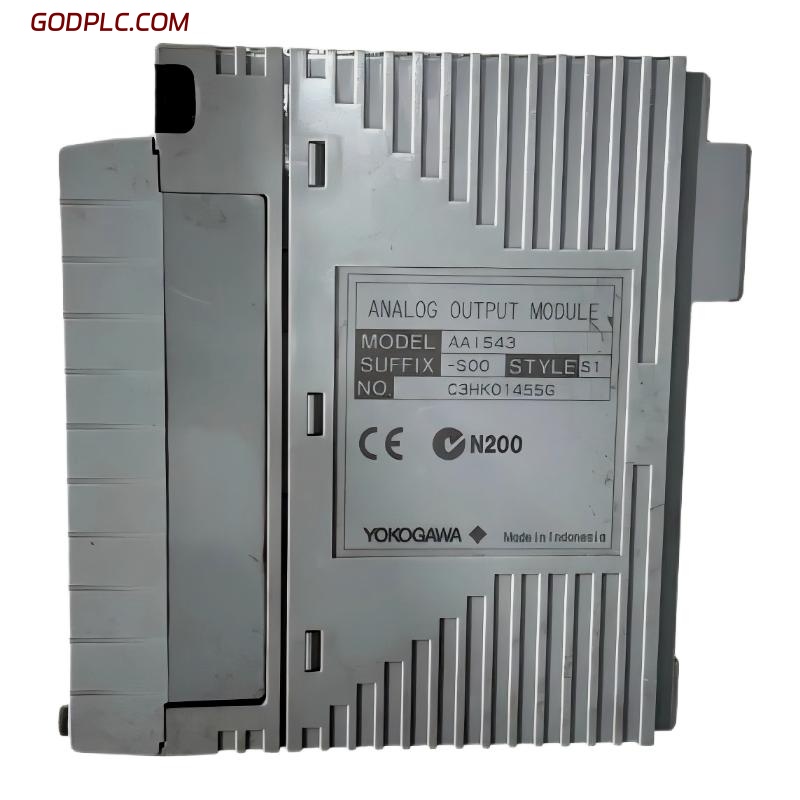

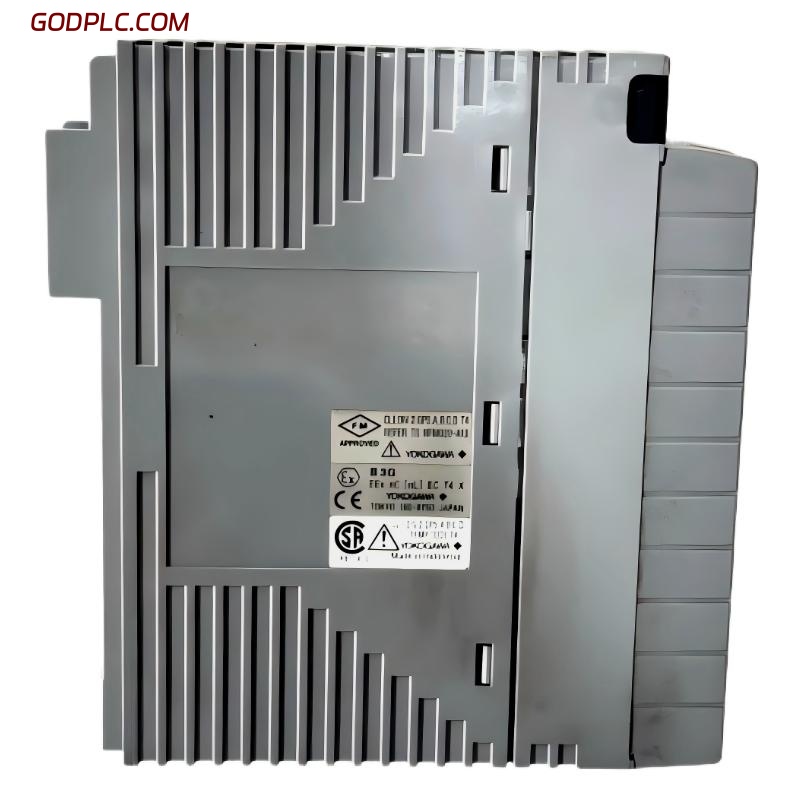

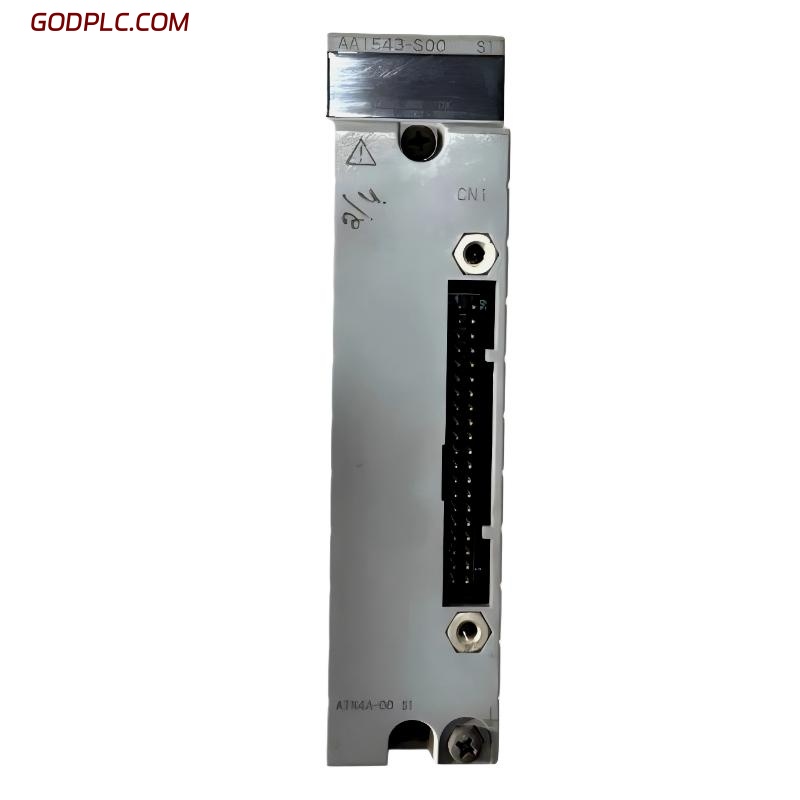

Yokogawa AAI543-H50/A4S10 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Product Model | AAI543-H50/A4S10 |
| Product Type | Analog Output Module |
| Output Channels | 16 channels |
| Output Signal Type | 4–20 mA analog current output |
| Output Range | 4 mA to 20 mA |
| Maximum Load Resistance | Up to 600 Ω |
| Signal Isolation | Channel-to-system isolation |
| Output Accuracy | ±0.1% of full scale |
| Data Update Method | Cyclic update from controller |
| Communication Interface | Internal I/O system bus |
| Compatible System | Yokogawa CENTUM distributed control system |
| Mounting Method | Base unit or rack mounting |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
1. What is the main function of this analog output module?
The module converts digital signals from the control system into analog current outputs used to control field devices in industrial automation processes.
2. What signal standard does the module support?
It provides a standard 4–20 mA analog current output signal commonly used in industrial control systems.
3. How are the module’s output channels controlled?
The control system sends commands through the internal I/O bus, and each channel independently generates the required analog output signal.
4. What field devices can be connected to this module?
It can control devices such as control valves, actuators, variable frequency drives, and other equipment requiring analog current input signals.
5. How does the module ensure reliable signal transmission?
The module uses electrical isolation and signal conditioning circuits to minimize electrical noise and maintain stable output performance.
6. Which automation systems typically use this module?
It is designed for use with Yokogawa CENTUM distributed control systems widely used in process automation industries.
7. How does the module help improve process control accuracy?
By delivering precise and stable analog current signals, the module allows the control system to regulate field equipment accurately.
8. Is the module suitable for continuous industrial operation?
Yes, it is designed for continuous operation in industrial environments and provides reliable performance in long-term automation systems.
Yokogawa AAI543-H50/A4S10 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
