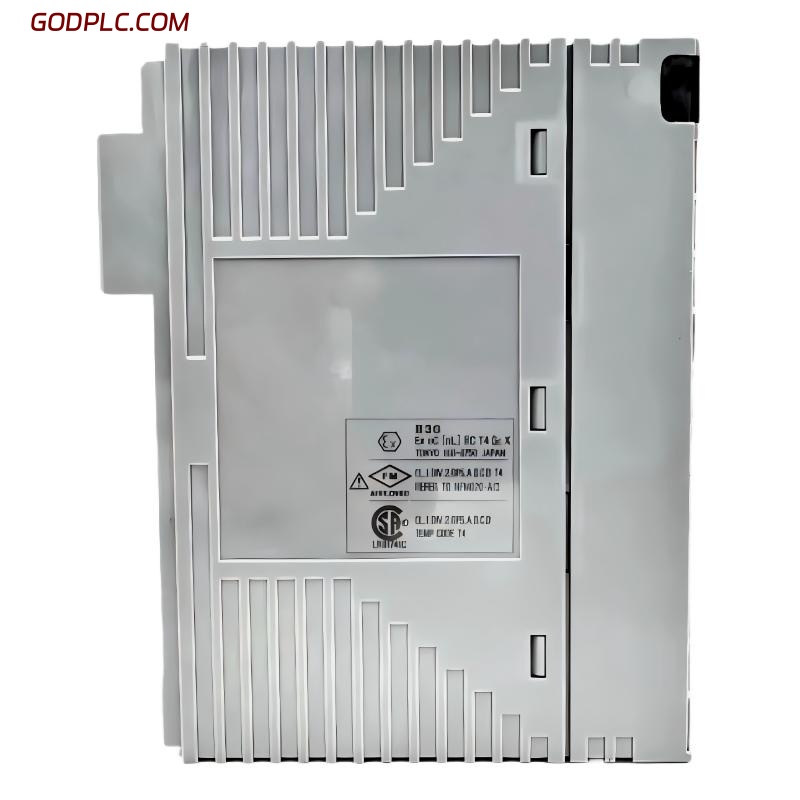

Yokogawa AAI543-H50/ATA4S-00 Analog Output Module With Terminal Blocks
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | AAI543-H50/ATA4S-00 |
| Product Type | Analog Output Module with Terminal Blocks |
| Manufacturer | Yokogawa |
| Output Channels | 16 channels |
| Output Signal Type | 4–20 mA analog output |
| Output Range | 4 to 20 mA |
| Output Accuracy | ±0.1% of full scale |
| Load Resistance | Up to 750 Ω |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Signal Update Time | Approx. 10 ms |
| Output Resolution | 16-bit |
| Diagnostic Functions | Output signal monitoring, open-circuit detection, module self-diagnostics |
| Connection Type | Removable terminal block |
| Mounting Method | Rack-mounted within control system chassis |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -25 to 75°C |
| Humidity | 5 to 95% RH (non-condensing) |
| Power Consumption | Approx. 5 W |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
1. What type of control systems is this analog output module designed for?
It is designed for use in distributed control systems (DCS), particularly industrial automation platforms where accurate analog signal output is required to control field devices.
2. How many field devices can be controlled simultaneously with this module?
The module provides 16 independent analog output channels, allowing it to control up to 16 field instruments such as control valves, actuators, or signal converters.
3. What type of signals can the module transmit to field equipment?
It transmits standard industrial 4–20 mA current signals, which are widely used for stable and noise-resistant signal transmission in process control environments.
4. Does the module include protection against wiring faults?
Yes, integrated diagnostic functions allow the system to detect abnormal conditions such as open circuits or irregular output signals, helping operators identify issues quickly.
5. How is electrical isolation implemented in the module?
Internal isolation is provided between individual channels and between the module and the system backplane to reduce electrical interference and improve operational reliability.
6. In what industrial applications is this type of module commonly used?
It is typically used to control final control elements including control valves, variable speed drives, and positioning devices in industries such as power generation, oil and gas, petrochemical, and manufacturing.
7. How are field cables connected to the module?
Field wiring is connected through detachable terminal blocks, which simplifies installation and allows modules to be replaced without rewiring the entire system.
8. How does the module support system reliability during operation?
The module performs continuous self-monitoring and communicates status and diagnostic information to the control system, enabling timely maintenance and stable long-term operation.
Yokogawa AAI543-H50/ATA4S-00 Analog Output Module With Terminal Blocks is in stock. Please contact us for a quick quote and competitive pricing.
