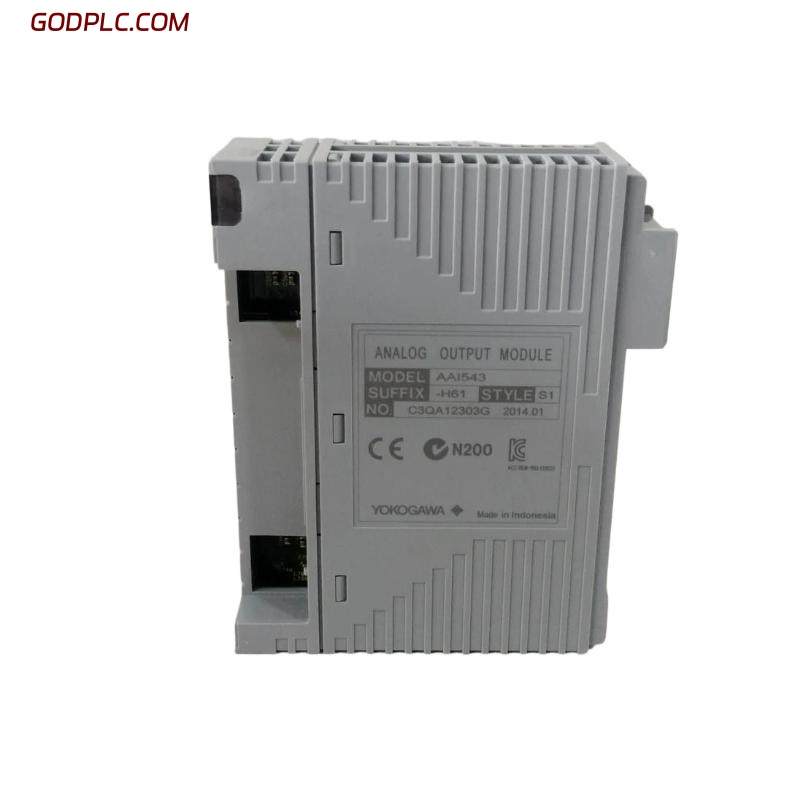

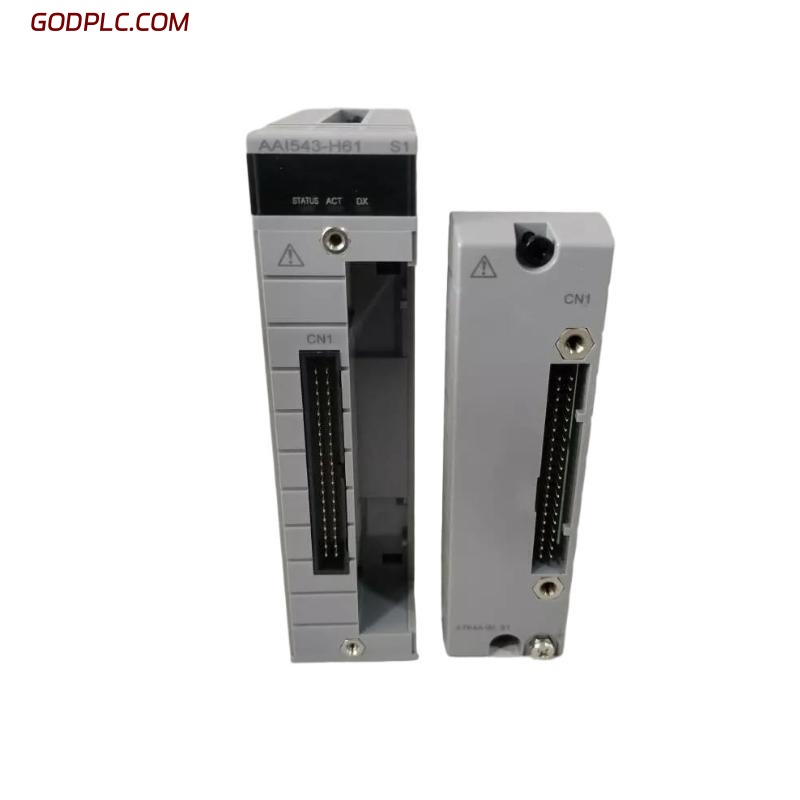

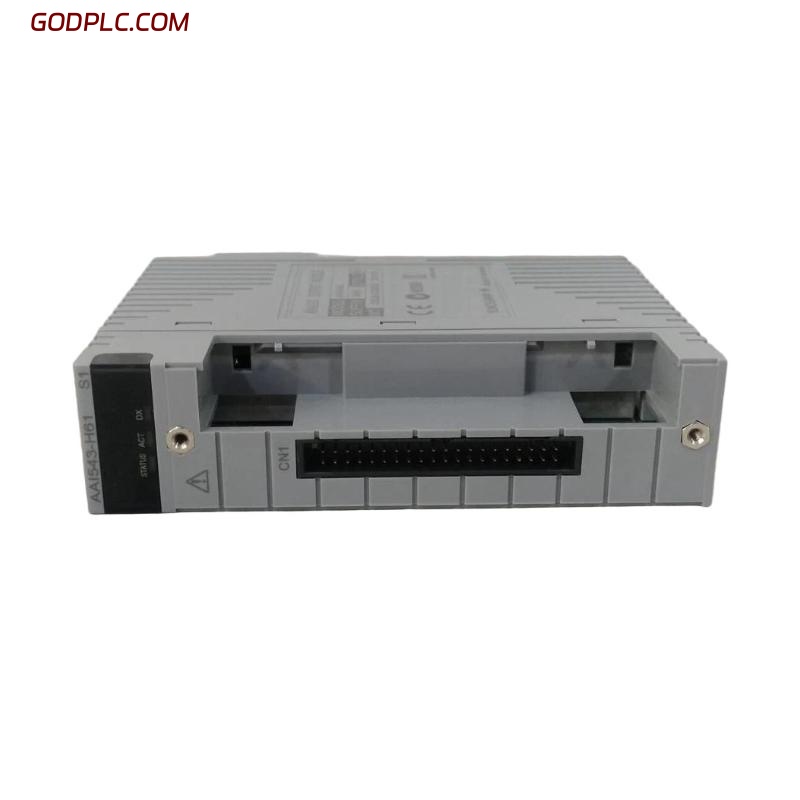

Yokogawa AAI543-H61 Analog Output Module
Product Overview
The Yokogawa AAI543-H61 is an 8-channel analog output module designed for integration with CENTUM VP and ProSafe-RS control systems. It provides precise 4–20 mA analog current outputs for controlling valves, actuators, and other process devices, ensuring stable and accurate signal transmission.
With enhanced diagnostics, robust isolation, and high reliability, the AAI543-H61 module is suitable for demanding industrial environments where continuous and safe operation is critical.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
Output Specifications
| Item | Specification |
|---|---|
| Number of Channels | 8 |
| Output Type | Analog current output (4–20 mA) |
| Load Resistance | 0 to 600 Ω |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Update Cycle | 20 ms (per channel) |
| Isolation | Channel-to-channel and channel-to-ground isolated |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 10 to 57 Hz, 0.075 mm amplitude |
| Shock Resistance | 15 G for 11 ms (half sine pulse) |
Power Requirements
| Item | Specification |
|---|---|
| Power Supply | Supplied from baseplate |
| Power Consumption | Approx. 4.5 W |
Industry Applications
| Industry | Use Case |
|---|---|
| Process Automation | Stable analog output for precise actuator and valve control |
| Oil & Gas | Reliable field device control in harsh environments |
| Power Generation | Accurate control outputs for turbines and auxiliary systems |
| Chemical Processing | Consistent analog output for reaction and flow control |
| Water and Wastewater | Control of pumps, valves, and treatment systems |
The Yokogawa AAI543-H61 Analog Output Module delivers high-accuracy, stable 8-channel analog current outputs for CENTUM VP and ProSafe-RS systems. Designed for reliability and safety in industrial applications, it ensures precise control of field devices with robust diagnostics and excellent noise immunity.
Yokogawa AAI543-H61 Analog Output Module 12-Month Warranty is in stock. Please contact us for a quick quote and competitive pricing.
