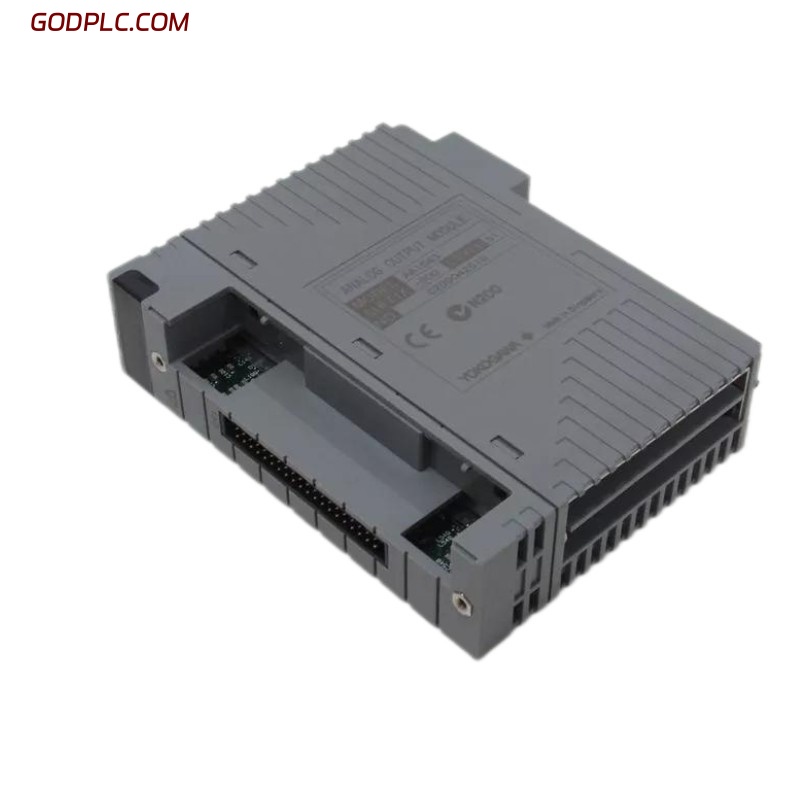

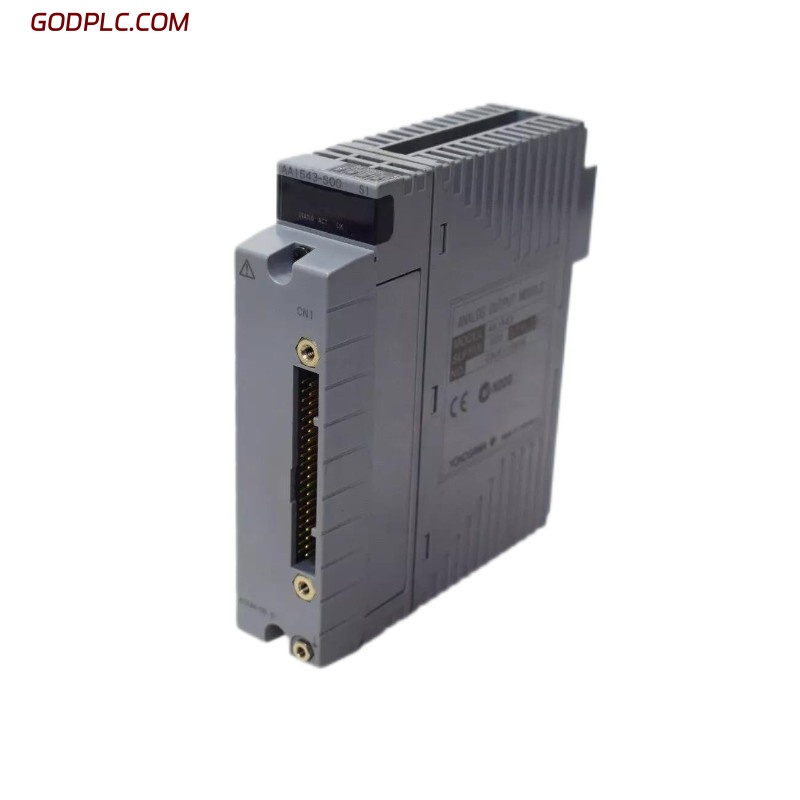

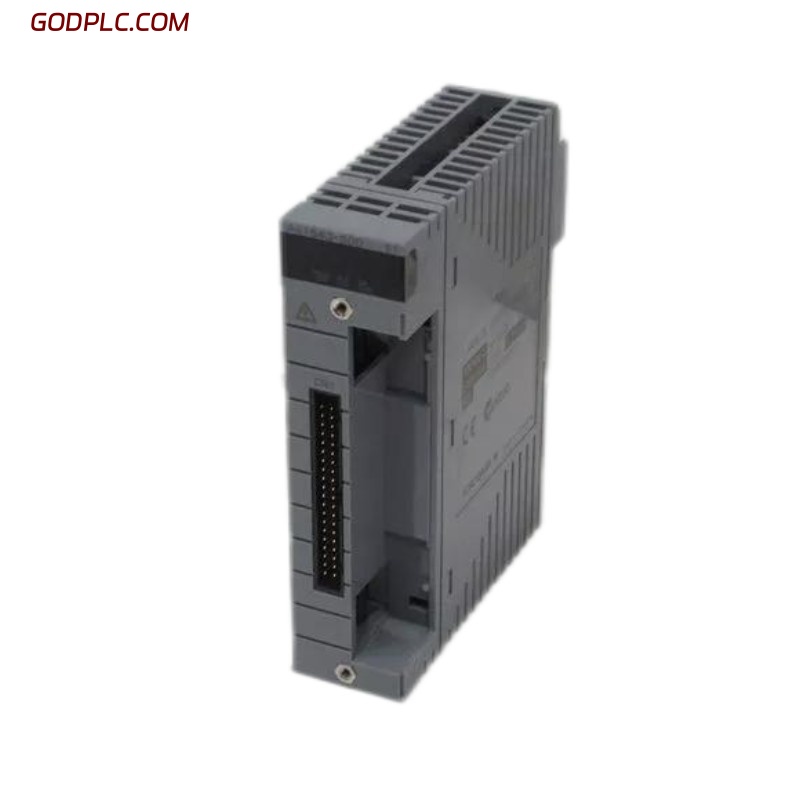

Yokogawa AAI543-S00 / A4S00 Analog Output Modules
Product Overview
The Yokogawa AAI543-S00 and A4S00 Analog Output Modules are high-performance I/O components designed for precise and reliable analog signal output in process automation systems. Compatible with Yokogawa’s CENTUM VP and other DCS platforms, these modules support multiple output channels with isolated outputs to prevent interference and ensure signal integrity. They offer configurable output ranges and advanced diagnostics to maintain system accuracy and uptime. Ideal for controlling valves, actuators, and other analog devices in mission-critical industrial environments.
Key Features
-
Multi-Channel Outputs – Supports multiple isolated analog output channels for flexible process control
-
High Accuracy – 16-bit digital-to-analog conversion ensures precise output signals
-
Configurable Output Ranges – Supports standard current (4–20 mA) and voltage (0–10 V) output signals
-
Output Isolation – Channel-to-channel isolation reduces noise and interference
-
Comprehensive Diagnostics – Built-in status and fault detection to ensure operational reliability
-
Robust Design – Suitable for harsh industrial environments with wide operating temperature range
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Channels | Multiple isolated analog output channels |
| Output Signal Types | 4–20 mA current, 0–10 V voltage |
| Resolution | 16-bit DAC |
| Output Isolation | Channel-to-channel isolation |
| Power Supply | 24 VDC nominal |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10%–90% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Shock/Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Yokogawa CENTUM VP and compatible DCS systems |
| Module Type | Analog Output Module |
Industry Applications
-
Petrochemical Plants – Precise control of valves and actuators for process optimization
-
Power Generation – Accurate analog output for turbine and boiler control systems
-
Water Treatment – Stable analog signals for dosing and treatment processes
-
Pharmaceutical Manufacturing – Ensures validated and precise analog control for critical processes
-
Food & Beverage – Supports consistent quality control through accurate output signals
The Yokogawa AAI543-S00 and A4S00 Analog Output Modules offer reliable, high-precision analog signal generation, enhancing control system performance across a wide range of industrial applications.
Yokogawa AAI543-S00/A4S00 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
