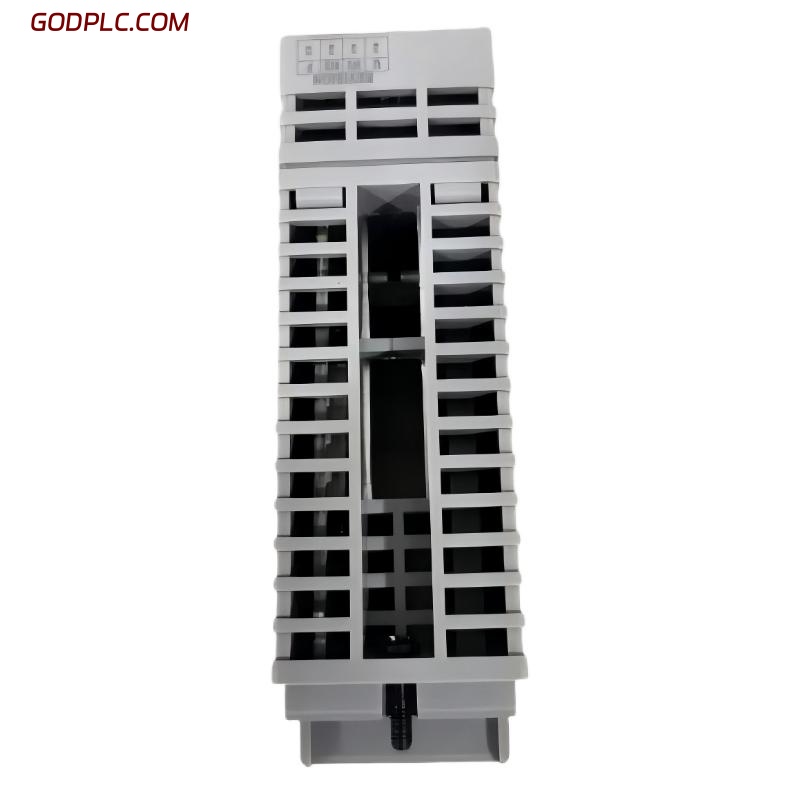

Yokogawa AAI543-S03/A4S00 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-S03/A4S00 |
| Product Type | Analog Output Module |
| Output Channels | 16 channels |
| Output Signal Type | 4–20 mA DC |
| Output Range | 4–20 mA configurable per channel |
| Resolution | 16-bit |
| Output Accuracy | ±0.1% of full scale |
| Maximum Load Resistance | 750 Ω |
| Isolation | Electrical isolation between system and field circuits |
| Open Circuit Detection | Supported |
| Update Time | 10 ms typical |
| Power Supply | 24 V DC from system |
| Current Consumption | Approx. 230 mA (5 V DC), 540 mA (24 V DC) |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −25 °C to +75 °C |
| Relative Humidity | 5–95% RH, non-condensing |
| Mounting Method | Installed on compatible DCS I/O base unit |
| Field Wiring | Terminal block or dedicated system cable connection |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
1. What is the purpose of an analog output module in a control system?
An analog output module converts digital commands from the control processor into continuous current signals. These signals are used to regulate field devices such as control valves, actuators, or drives in process control systems.
2. What type of signal is provided by the output channels?
The module delivers standard 4–20 mA DC analog current signals, which are widely used in industrial automation for transmitting control commands to field instruments.
3. How many devices can be controlled simultaneously?
With 16 independent output channels, the module can control multiple field instruments or control loops at the same time within a distributed control system.
4. Can each output channel operate independently?
Yes. Each channel is individually controlled by the system software, allowing separate configuration, scaling, and control parameters for different field devices.
5. How does the module help maintain signal integrity in industrial environments?
The module incorporates electrical isolation between the control system and field circuits. This design helps reduce electrical noise, ground loop interference, and potential damage from external disturbances.
6. What happens if an output loop becomes open or disconnected?
The module supports loop monitoring functions that allow the control system to detect abnormal current conditions, such as an open circuit, and trigger diagnostic alarms for maintenance.
7. What types of equipment typically receive the output signal?
Common devices include valve positioners, I/P converters, variable frequency drives, and other industrial instruments that accept a 4–20 mA control signal.
8. Is the module suitable for continuous operation in process industries?
Yes. It is designed for reliable operation in industrial automation environments such as power generation, chemical processing, oil and gas facilities, and manufacturing plants where stable analog control signals are required.
Yokogawa AAI543-S03/A4S00 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
