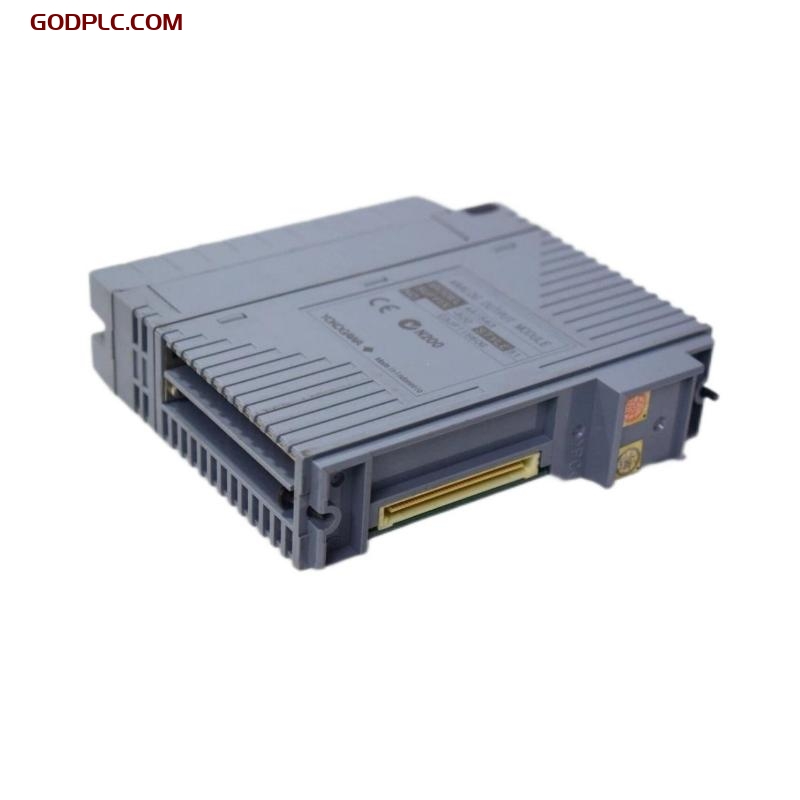

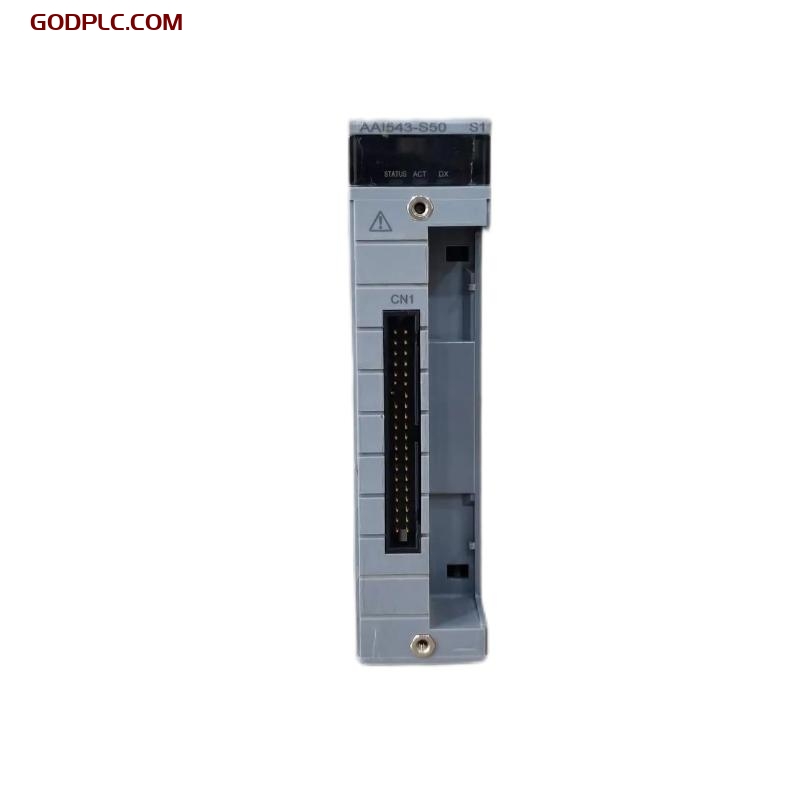

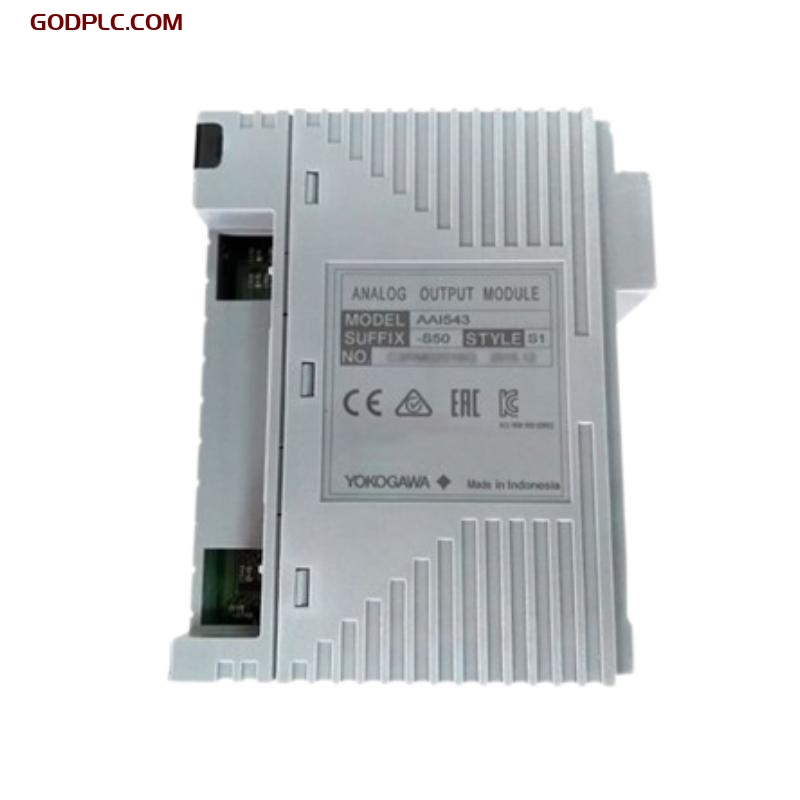

Yokogawa AAI543-S50 Analog Output Module
Product Overview
The Yokogawa AAI543-S50 Analog Output Module is a precision component designed for use in Yokogawa’s advanced industrial control systems, particularly in the CENTUM VP platform. This module is used for providing high-quality analog output signals to control various field devices, such as actuators, valves, and motor controllers, in industrial applications. By delivering accurate and stable output signals, the AAI543-S50 ensures efficient and reliable operation of automated processes in critical industries like chemical, power, and manufacturing.
Key Features
-
High-Accuracy Analog Output: Provides precise analog outputs (4-20 mA, 0-10 V) for controlling field devices, ensuring high accuracy and stability in operations.
-
Wide Output Range: Supports flexible output types, making it compatible with a wide range of field devices, including actuators, flow controllers, and motor drives.
-
Seamless Integration with CENTUM VP: Fully compatible with the Yokogawa CENTUM VP Distributed Control System (DCS), ensuring smooth communication and system performance.
-
Modular Design: Designed to fit into Yokogawa’s modular control racks, simplifying system installation, maintenance, and expansion.
-
Enhanced Reliability: Built to endure harsh industrial environments with exceptional resistance to temperature extremes, vibrations, and electrical noise.
-
Built-In Diagnostics: Features diagnostic LEDs for easy monitoring of output status, aiding in faster troubleshooting and system maintenance.
-
Wide Temperature Range: Capable of operating in a broad temperature range from -20°C to +60°C, making it suitable for various industrial settings.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | AAI543-S50 |
| Module Type | Analog Output Module |
| Compatibility | Yokogawa CENTUM VP |
| Mounting | Standard Yokogawa controller rack |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Type | 4-20 mA, 0-10 V |
| Output Voltage | 0-10 V DC, 4-20 mA |
| Power Consumption | < 3 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Yokogawa CENTUM VP |
| Communication Interface | Yokogawa DCS network |
| Software Configuration | Yokogawa CENTUM VP Engineering Tools |
Industry Applications
-
Process Automation: Ideal for controlling parameters such as flow, temperature, and pressure in industries like oil & gas, chemical processing, and power generation.
-
Energy Management: Used in energy control systems to regulate output signals to devices like pumps, fans, and valves, ensuring energy efficiency.
-
Manufacturing Automation: Controls machinery and equipment on production lines, helping to regulate variables like speed, pressure, and temperature for optimized manufacturing.
-
Water and Wastewater Treatment: Ensures proper operation of field devices like pumps, actuators, and valves in water and wastewater treatment plants.
-
Pharmaceutical and Biotechnology: Facilitates the accurate control of chemical reactions and process variables in pharmaceutical and biotechnology production environments.
The Yokogawa AAI543-S50 Analog Output Module is an essential component for industries requiring precise control of analog outputs. Its robust design, wide temperature range, and seamless integration with the CENTUM VP platform ensure high reliability and performance in critical automation and control applications.
Yokogawa AAI543-s50 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
