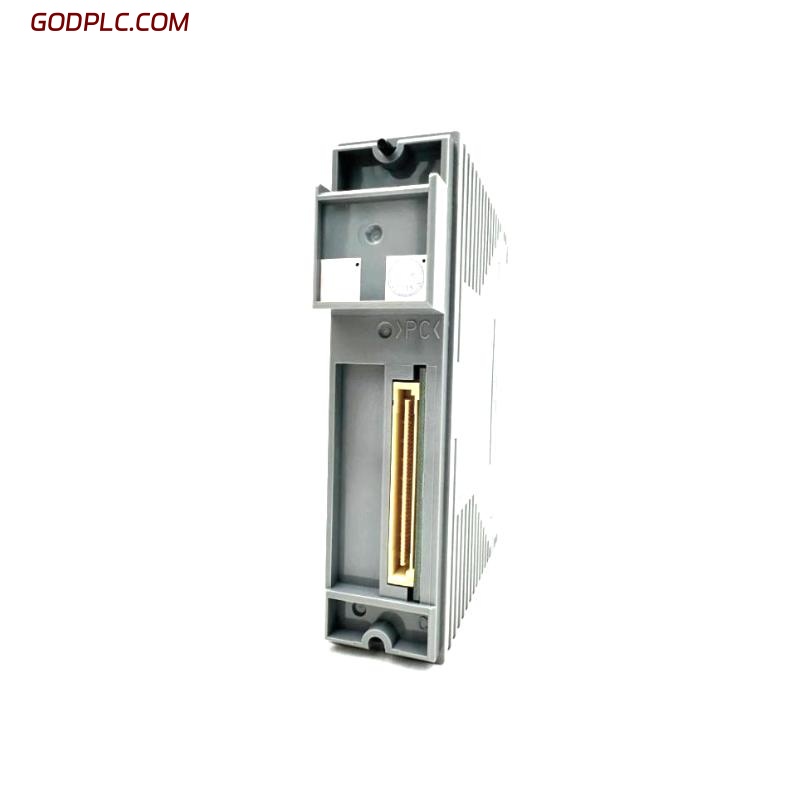

Yokogawa AAI543-S53/K4A00 Analog Input Module
Product Overview
The Yokogawa AAI543-S53/K4A00 is a high-performance analog input module developed for distributed control systems (DCS) in demanding industrial environments.
It is designed to handle multiple channels of analog signals, converting them into precise digital data for monitoring and control applications.
With robust construction, advanced signal filtering, and high accuracy, it ensures stable and reliable process data acquisition, supporting efficient plant operations and safety compliance.
Main Features
-
16-channel analog input module for high-density installation.
-
Supports standard industrial signals including 4–20 mA DC and DC voltage.
-
High resolution and accuracy for critical process measurements.
-
Compact design allowing efficient use of rack space.
-
Hot-swappable module for reduced maintenance downtime.
-
Built-in self-diagnostics to enhance system reliability.
-
Fully compatible with Yokogawa CENTUM VP and CS 3000 DCS platforms.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | Approx. 0.4 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | AAI543-S53/K4A00 |
| Product Type | Analog Input Module |
| Mounting | Installed in I/O system rack |
| System Support | CENTUM VP, CS 3000 |
| Operating Temp. | 0°C to +55°C |
| Storage Temp. | -40°C to +70°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 channels |
| Signal Types | 4–20 mA DC, 1–5 V DC |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale typical |
| Conversion Rate | 10 ms/channel |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply | 24V DC ±10% |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5% – 95% RH, non-condensing |
| Vibration | 5–150 Hz, 2 G |
| Shock Resistance | 15 G, 11 ms |
| Cooling Method | Natural air circulation |
| Protection Class | IP20 |
Industry Applications
The Yokogawa AAI543-S53/K4A00 is applied across multiple industries where precise analog signal acquisition is required:
-
Oil & Gas: Monitoring wellhead, refinery, and pipeline process signals.
-
Chemical & Petrochemical: Accurate measurement in reactors, distillation, and batch operations.
-
Power Generation: Turbine, boiler, and auxiliary equipment monitoring.
-
Pharmaceutical: Maintaining precision in production and quality control processes.
-
Water & Wastewater: Monitoring flow, pressure, and treatment parameters.
Yokogawa AAI543-S53/K4A00 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
