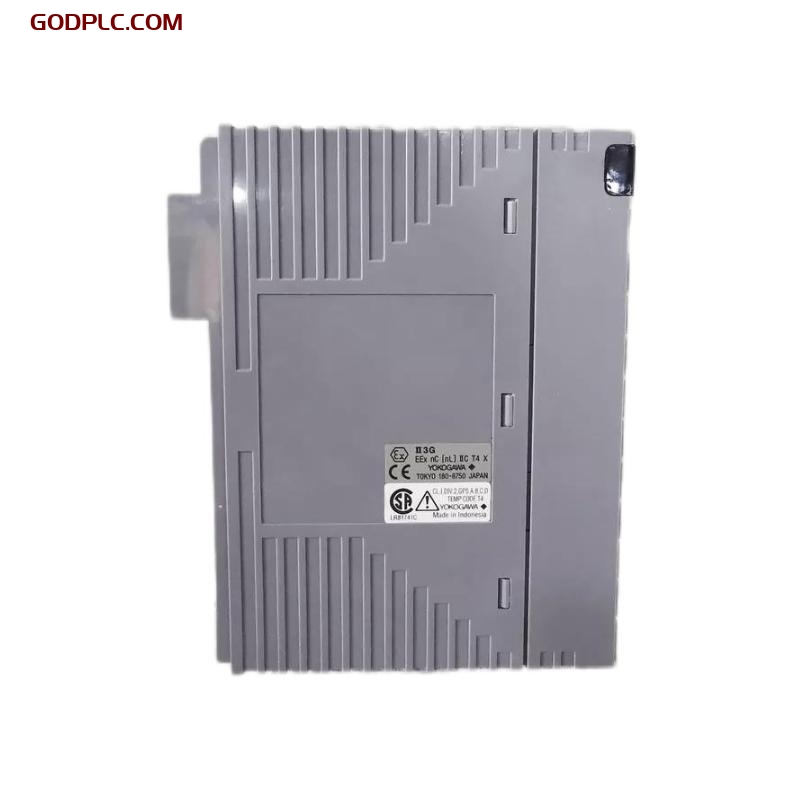

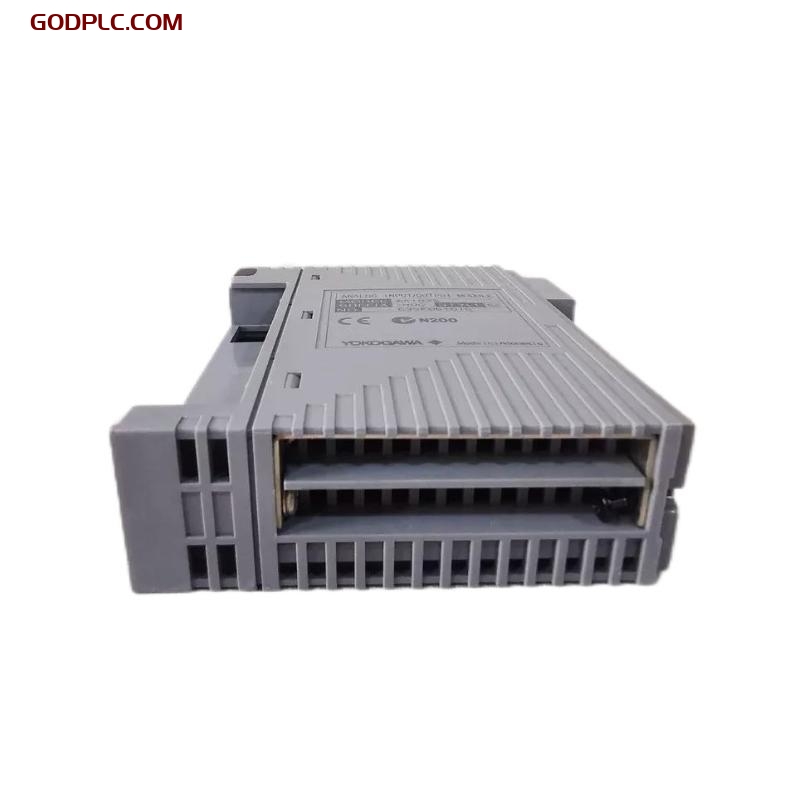

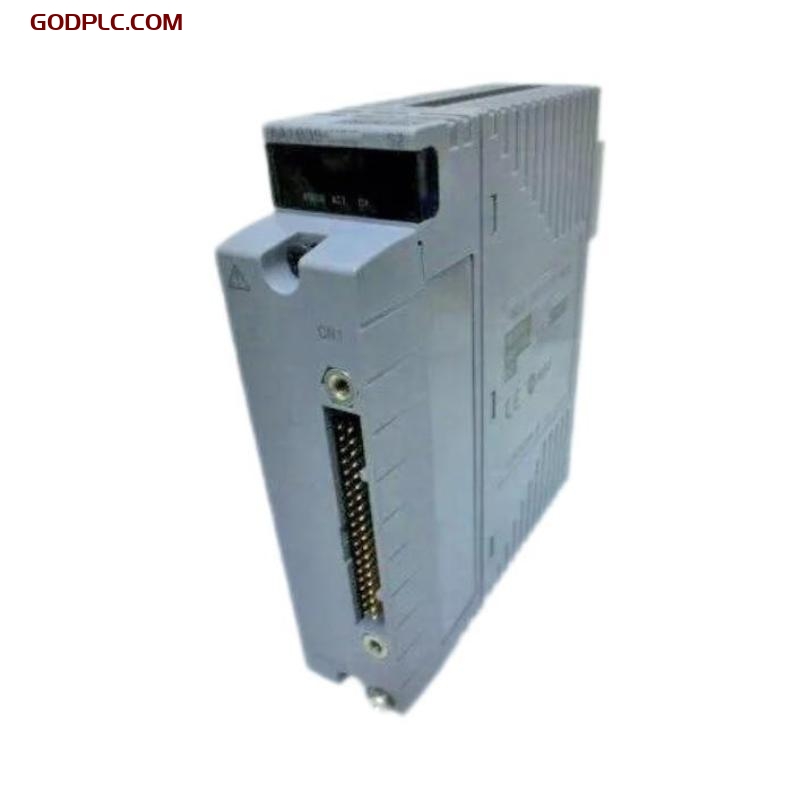

Yokogawa AAI835 Analog I/O Modules
1. Product Overview
The Yokogawa AAI835 Analog I/O Module is a high-performance module designed to handle both analog inputs and outputs within distributed control systems (DCS). This module provides precise signal acquisition and control, enabling the monitoring and regulation of critical process variables in industries such as chemical processing, oil & gas, power generation, and water treatment.
The AAI835 module supports a wide range of industry-standard analog signals, including 4-20 mA and 1-5V, and is known for its accuracy, reliability, and flexibility. Its ability to perform under demanding industrial conditions makes it ideal for integration with Yokogawa’s CENTUM VP and ProSafe-RS systems. It also features built-in diagnostics and high channel isolation for improved safety and operational reliability.
2. Key Features
-
Dual Functionality: Supports both analog inputs and outputs in a single module for simplified wiring and system design.
-
High Accuracy: Utilizes 16-bit A/D and D/A converters for precise measurement and control.
-
Wide Signal Compatibility: Supports 4-20 mA, 1-5V, and 0-10V signal types, ensuring flexibility in process control.
-
Electrical Isolation: All channels are electrically isolated to improve safety and prevent interference.
-
Hot Swappable: Modules can be replaced without shutting down the system, enhancing operational uptime.
-
Built-in Diagnostics: Real-time monitoring of faults and operational anomalies to ensure continuous reliability.
-
Seamless Integration: Compatible with Yokogawa’s DCS platforms such as CENTUM VP and ProSafe-RS, enabling easy system integration.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | AAI835 |
| Manufacturer | Yokogawa Electric Corporation |
| Installation | DIN rail or rack-mounted |
| Power Supply | Supplied via system backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Input/Output Performance
| Item | Specification |
|---|---|
| Analog Inputs | 8 channels |
| Analog Outputs | 8 channels |
| Signal Types | 4-20 mA, 1-5V, 0-10V |
| Resolution | 16-bit A/D and D/A |
| Accuracy | ±0.1% F.S. |
| Input Impedance | Approx. 250 Ω (current input) |
| Output Load | Up to 750 Ω (current output) |
| Channel Isolation | Yes |
| Update Rate | ≤100 ms |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% (via backplane) |
| Power Consumption | Max 3.5 W |
| Operating Current | ≤ 0.15 A |
| Status Indicators | LEDs for power, run, fault |
4. Industry Applications
The Yokogawa AAI835 Analog I/O Module is widely used in various industrial applications that require high reliability, accuracy, and safety for process monitoring and control:
-
Oil & Gas: Enables precise monitoring and control of upstream and downstream processes in oil fields and refineries.
-
Chemical & Pharmaceutical: Used in complex reaction environments where accuracy in dosing and control is critical.
-
Power Generation: Facilitates measurement and regulation of analog signals in turbines, boilers, and grid interfaces.
-
Water Treatment: Ensures real-time monitoring and regulation of flow, pressure, and chemical levels in water treatment plants.
-
Manufacturing & Metallurgy: Supports automation control in manufacturing plants, enhancing product quality and production efficiency.
The AAI835 is an integral component of Yokogawa’s automation solutions, ensuring high-precision signal handling and continuous reliability in demanding industrial environments.
Yokogawa AAI835 Analog I/O Modules is in stock. Please contact us for a quick quote and competitive pricing.
