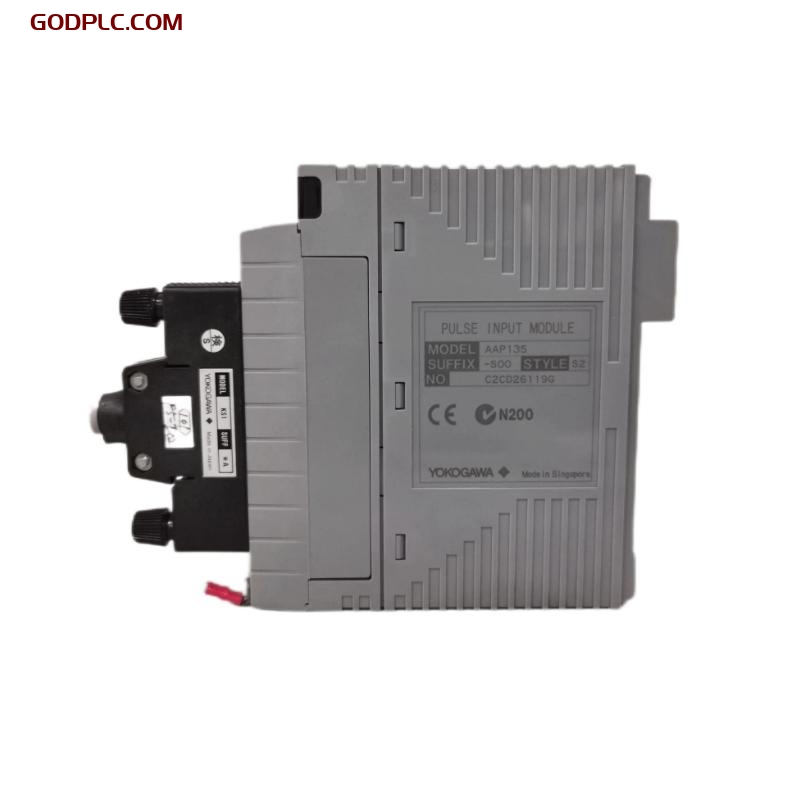

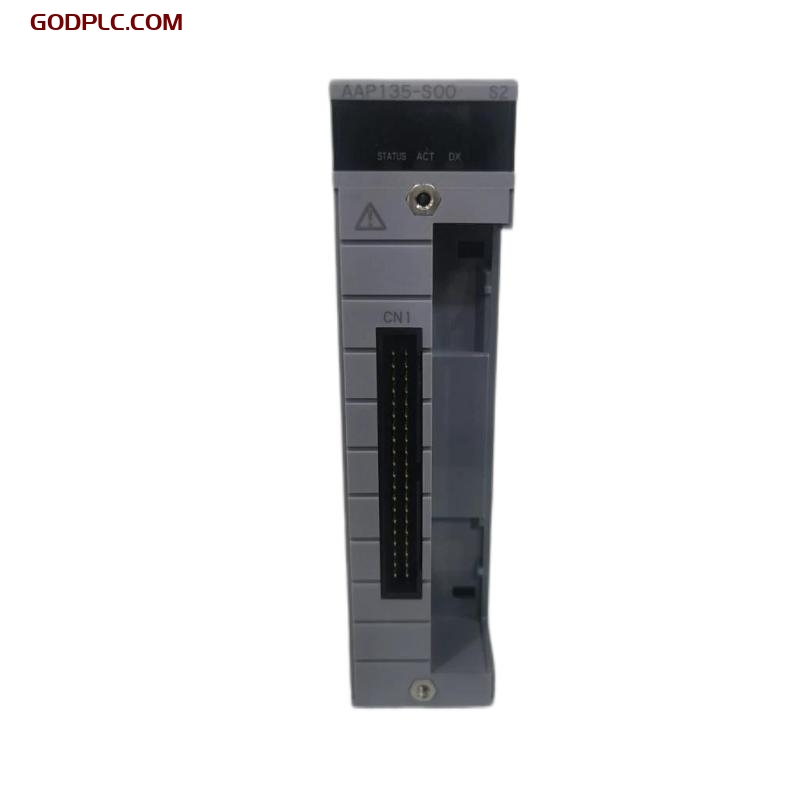

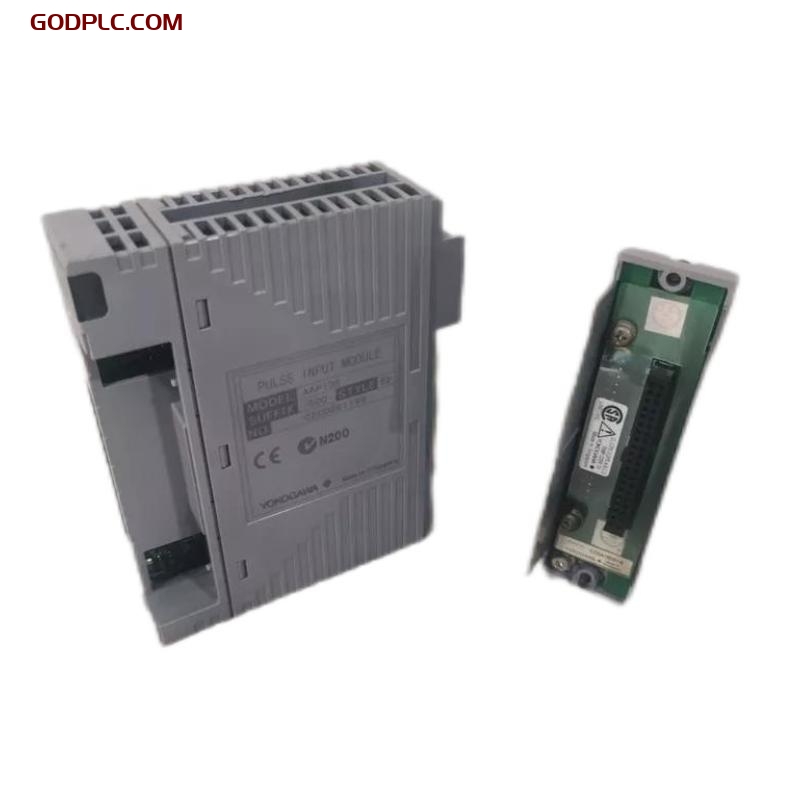

Yokogawa AAP135-S00 S2 Pulse Input Module
Product Overview
The Yokogawa AAP135-S00 S2 Pulse Input Module is designed to accurately capture pulse signals from a variety of field devices in industrial automation systems. This module is particularly useful in applications where pulse-based measurements are required, such as flow, speed, or counting systems. With its high reliability and precision, the AAP135-S00 enables seamless integration into Yokogawa’s control platforms, enhancing data acquisition and overall system performance. It is engineered for use in demanding environments, providing stable and accurate input readings in real-time operations.
Key Features
-
Pulse Signal Input: Designed to receive and process pulse signals for monitoring parameters such as flow, count, and speed.
-
High Accuracy: Delivers precise pulse count and frequency measurement for critical industrial processes.
-
Easy Integration: Compatible with Yokogawa’s control systems, enabling efficient integration and configuration for diverse applications.
-
Compact Design: Small and space-efficient, ensuring easy installation in panels with limited space.
-
Durable Construction: Built to withstand harsh industrial environments, ensuring long-lasting operation in extreme conditions.
-
Real-Time Diagnostics: Equipped with diagnostic LEDs for monitoring pulse input status and simplifying troubleshooting.
-
Flexible Input Range: Supports a wide range of input signal frequencies, accommodating various industrial requirements.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | AAP135-S00 |
| Module Type | Pulse Input Module |
| Pulse Input Type | Frequency, Pulse Count |
| Mounting | DIN Rail Mountable |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Type | Pulse Frequency / Count |
| Operating Voltage | 24 V DC |
| Power Consumption | < 3 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Yokogawa Control Systems |
| Communication Interface | Pulse Signal |
| Software Configuration | Yokogawa configuration tools |
Industry Applications
-
Flow Measurement: Commonly used in flowmeter applications for monitoring liquid or gas flow by counting pulses from a flow sensor.
-
Process Control: Integrates with systems to measure quantities and process rates in industries such as oil & gas, chemical processing, and water treatment.
-
Energy Management: Used for measuring pulse outputs from energy meters, providing critical data for energy monitoring and management.
-
Manufacturing Automation: Measures pulse signals from equipment like conveyors, providing essential data for system monitoring and control.
-
Water and Wastewater Treatment: Used for counting pulses from flow sensors, helping maintain operational efficiency and ensure system compliance.
The Yokogawa AAP135-S00 S2 Pulse Input Module provides high-precision pulse measurement and counting capabilities, ideal for applications in flow measurement, process control, and automation. Its reliability, ease of integration, and versatile input options make it an indispensable part of Yokogawa’s control solutions for demanding industrial environments.
Yokogawa AAP135-S00 S2 Pulse Input Module is in stock. Please contact us for a quick quote and competitive pricing.
