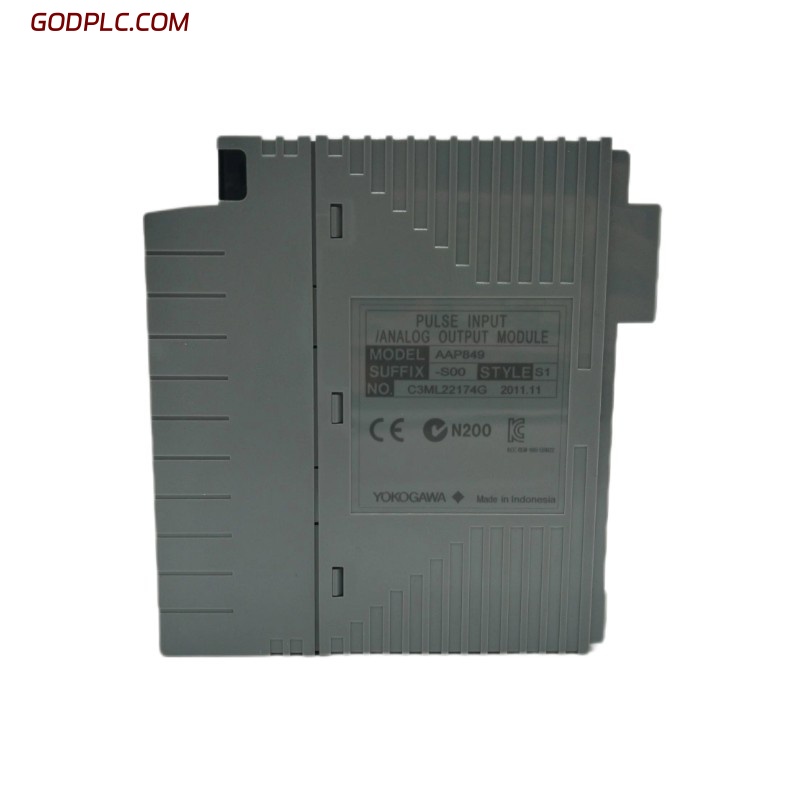

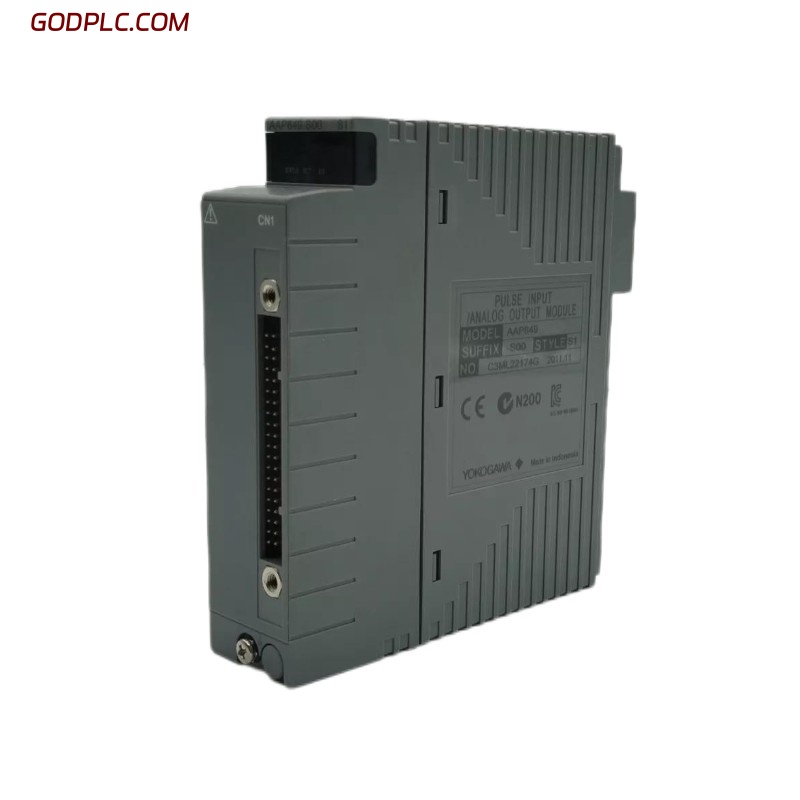

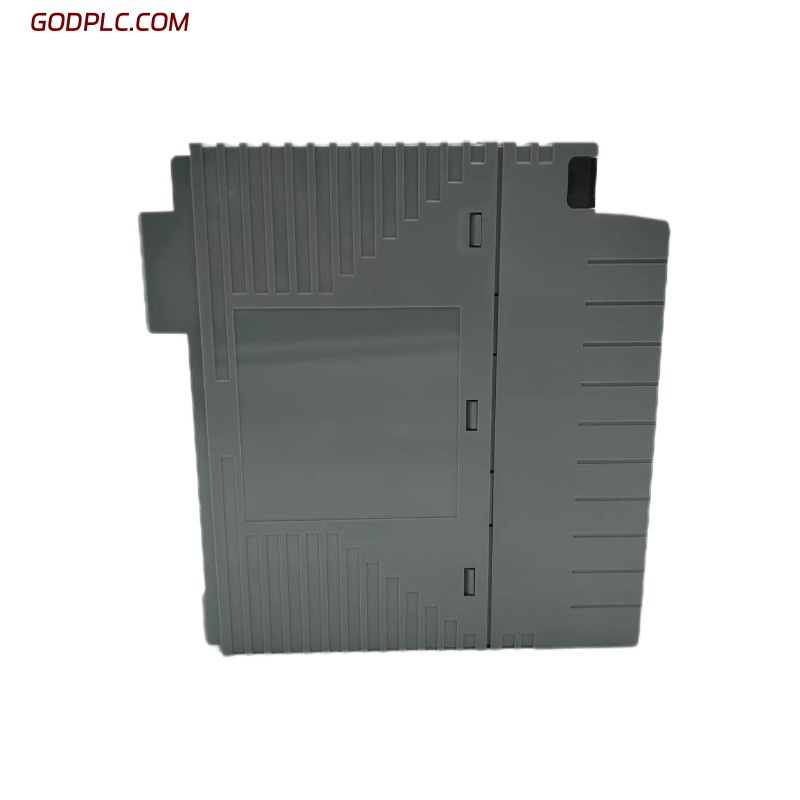

Yokogawa AAP849 Pulse Input / Analog Output Module
Product Overview
The Yokogawa AAP849 module provides combined pulse input and analog output functionality designed for integration within Yokogawa’s CENTUM series distributed control systems (DCS). This module enables accurate counting and measurement of pulse signals, such as flow meters or event counters, while simultaneously providing precise analog output signals for process control or monitoring. Engineered for robust performance and reliability in industrial environments, the AAP849 supports diverse process applications requiring flexible I/O configurations.
Key Features
-
Dual-function module with pulse input and analog output channels
-
High-accuracy pulse counting for flow, level, and event measurements
-
Precision analog output supporting 4–20 mA or voltage signals
-
Supports various pulse types including open collector and voltage pulses
-
Advanced diagnostics for input and output signal monitoring
-
Compatible with Yokogawa CENTUM DCS architecture
-
Rugged design suitable for harsh industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 × 32.8 × 127.2 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Pulse Input | Up to 1 MHz frequency |
| Pulse Types | Open collector, voltage pulse inputs |
| Analog Output | 4–20 mA current loop or 0–10 V voltage output |
| Output Resolution | 16-bit |
| Response Time | < 10 ms |
| Isolation | Channel-to-channel and system isolation |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -10°C to +55°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | Designed for industrial environments |
3.4 System Integration
| Item | Specification |
|---|---|
| System Compatibility | Yokogawa CENTUM DCS |
| Installation | Standard module rack mounting |
| Configuration Tool | CENTUM engineering software |
Industry Applications
-
Oil & Gas – Pulse counting for flow measurement and analog output control
-
Chemical Processing – Flexible I/O for process instrumentation and control
-
Power Generation – Event counting and analog control for plant equipment
-
Pharmaceutical – Precise measurement and output for validated processes
-
Water Treatment – Meter pulse counting and actuator control
The Yokogawa AAP849 Pulse Input / Analog Output Module offers a flexible and reliable solution for combined pulse and analog signal processing in demanding industrial control systems, ensuring precise measurement and control capabilities.
Yokogawa AAP849 Pulse Input/analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
