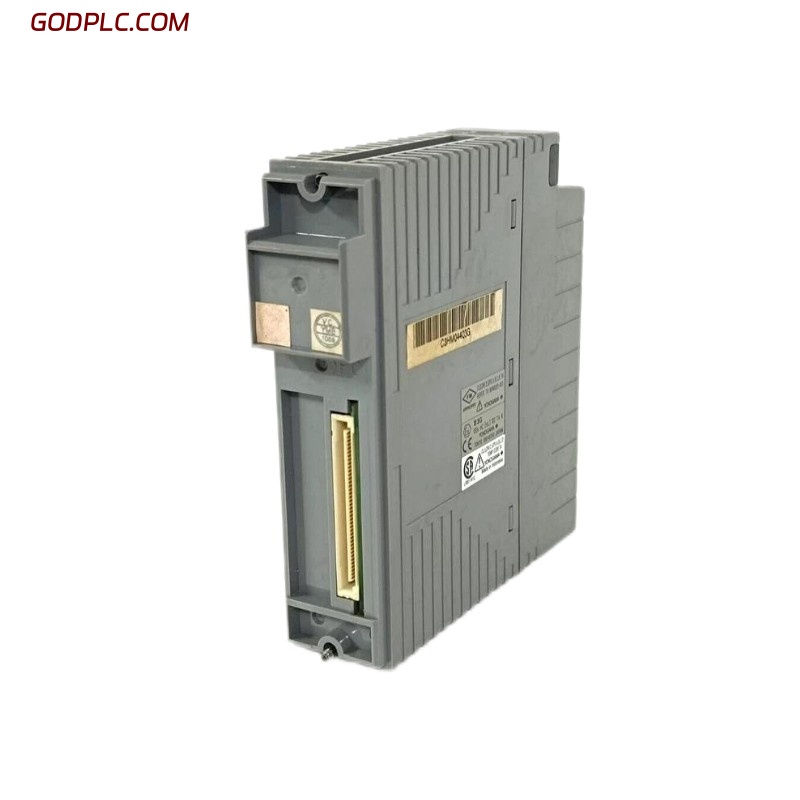

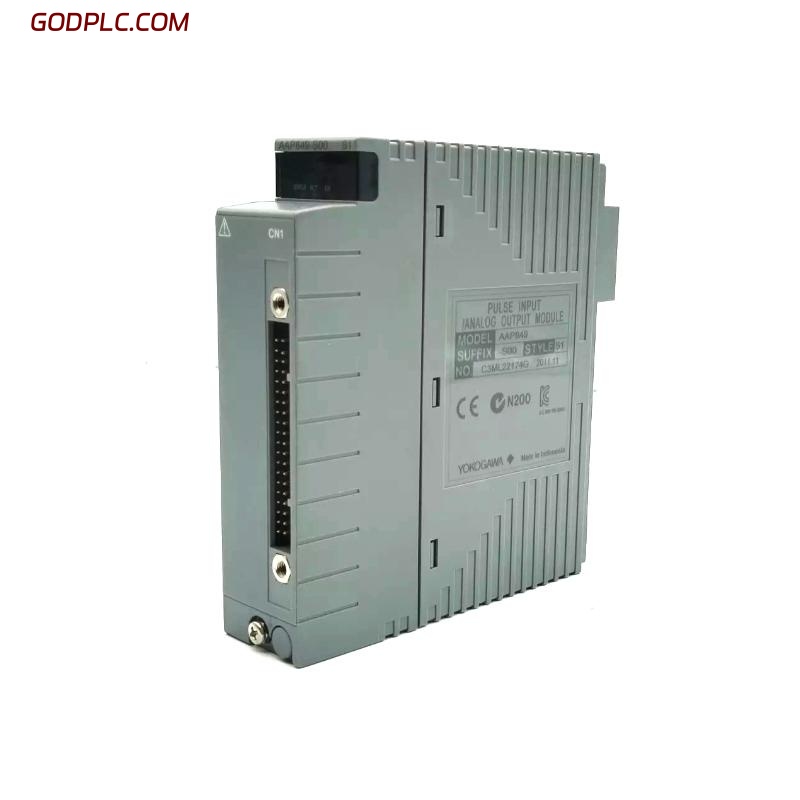

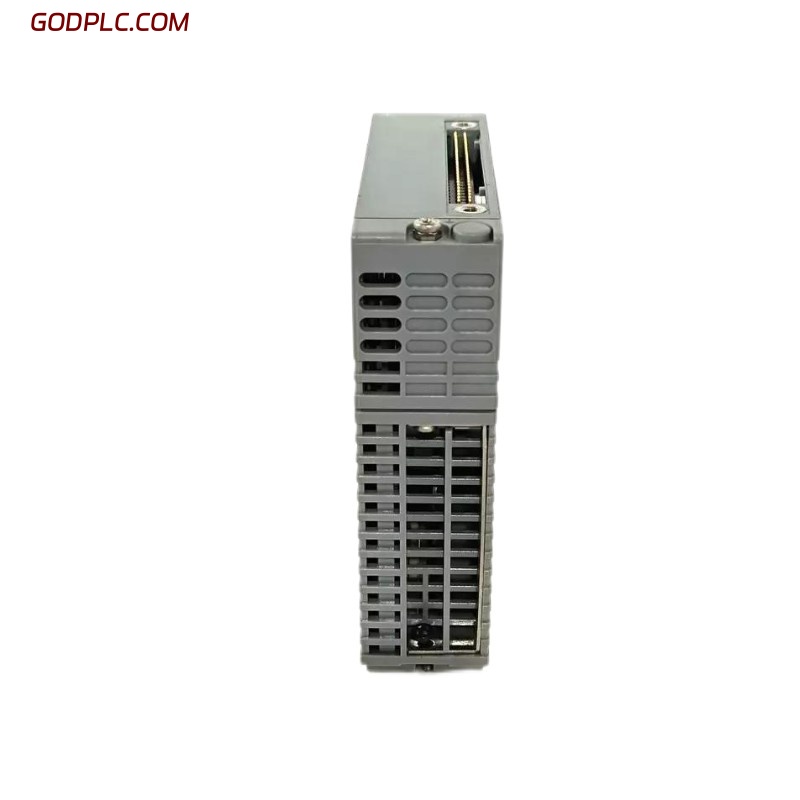

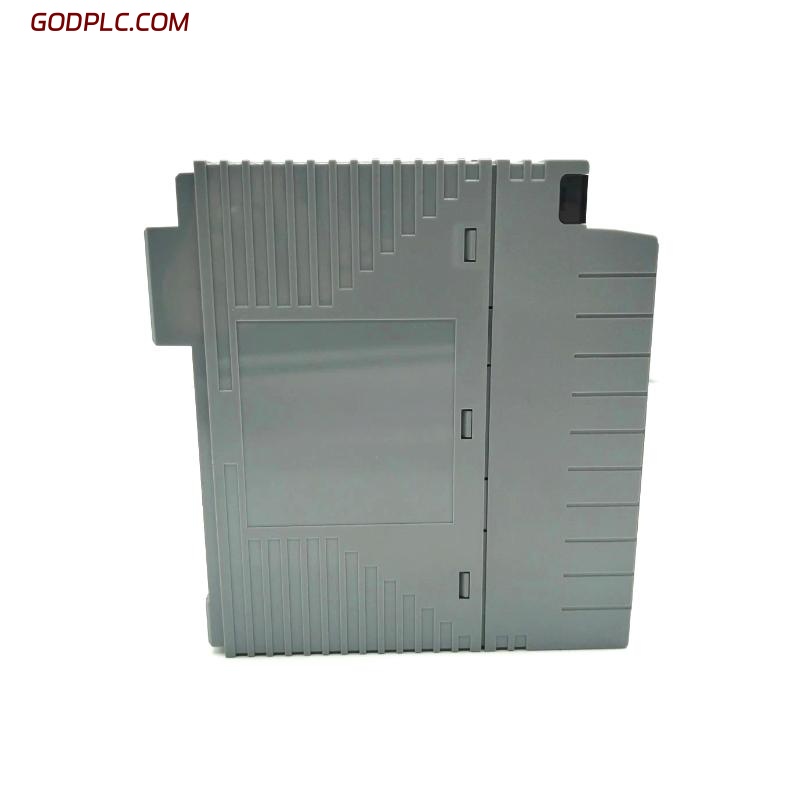

Yokogawa AAP849-S00 Pulse Input / Analog Output Module
Product Overview
The Yokogawa AAP849-S00 module is an advanced pulse input and analog output module designed for use with Yokogawa CENTUM distributed control systems (DCS). It enables precise pulse counting from flow meters and other pulse-generating devices, along with high-accuracy analog output for control and monitoring. Featuring improved signal processing and diagnostic capabilities, the AAP849-S00 supports reliable operation in industrial process control applications requiring versatile and robust I/O functions.
Key Features
-
Combined pulse input and analog output functionality
-
Supports pulse frequencies up to 1 MHz for accurate counting
-
Analog output configurable for 4–20 mA or 0–10 V signals
-
Compatible with various pulse input types including open collector and voltage pulses
-
Enhanced diagnostics for input/output signal integrity and fault detection
-
Designed for hot-swappable installation without system interruption
-
Rugged construction suitable for harsh industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 × 32.8 × 127.2 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Pulse Input | Up to 1 MHz frequency |
| Pulse Types | Open collector, voltage pulse inputs |
| Analog Output | 4–20 mA current loop or 0–10 V voltage output |
| Output Resolution | 16-bit |
| Response Time | < 10 ms |
| Isolation | Channel-to-channel and system isolation |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -10°C to +55°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | Designed for industrial environments |
3.4 System Integration
| Item | Specification |
|---|---|
| System Compatibility | Yokogawa CENTUM DCS |
| Installation | Standard module rack mounting |
| Configuration Tool | CENTUM engineering software |
Industry Applications
-
Oil & Gas – Accurate pulse counting and analog control for flow measurement
-
Chemical Processing – Versatile I/O for process instrumentation and control
-
Power Generation – Event counting and analog output for plant monitoring
-
Pharmaceutical – Reliable measurement and control for validated processes
-
Water Treatment – Pulse input for meter reading and analog actuator control
The Yokogawa AAP849-S00 Pulse Input / Analog Output Module delivers precise and reliable combined pulse and analog signal processing capabilities, enhancing the flexibility and robustness of Yokogawa CENTUM control systems in demanding industrial environments.
Yokogawa AAP849-S00 Pulse Input/analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
