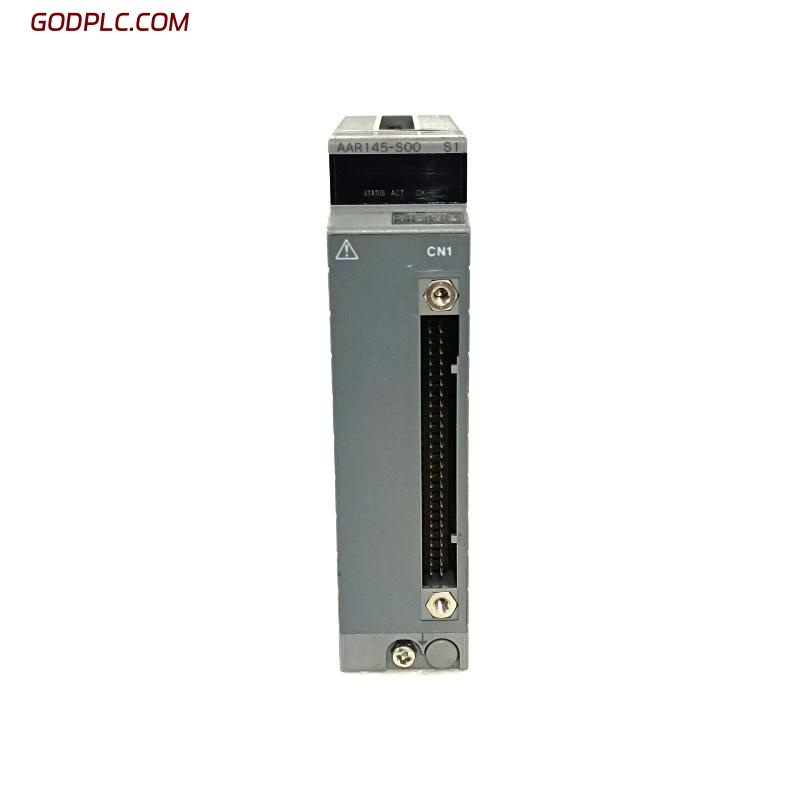

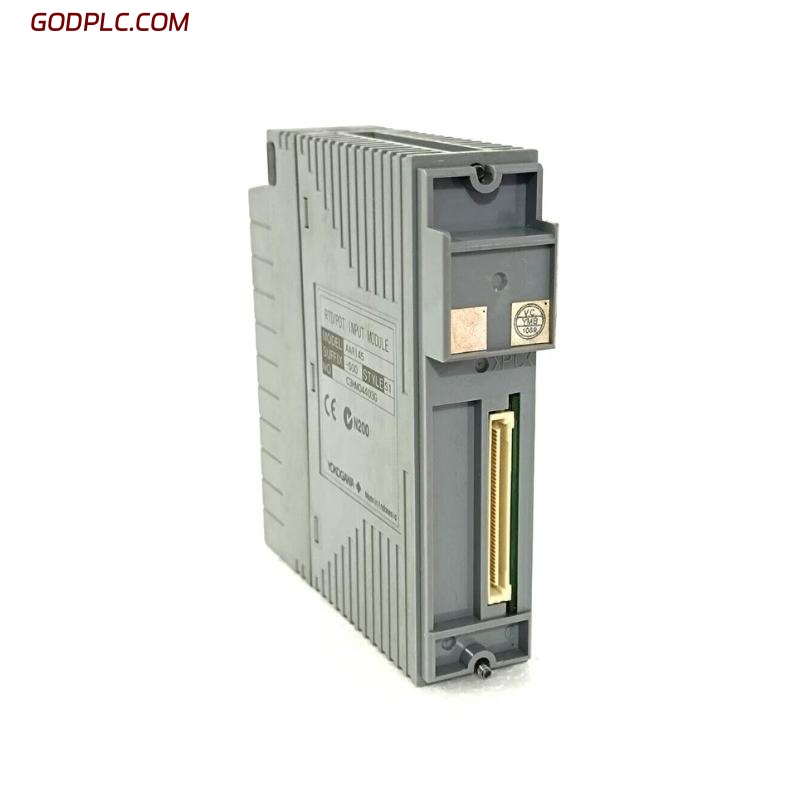

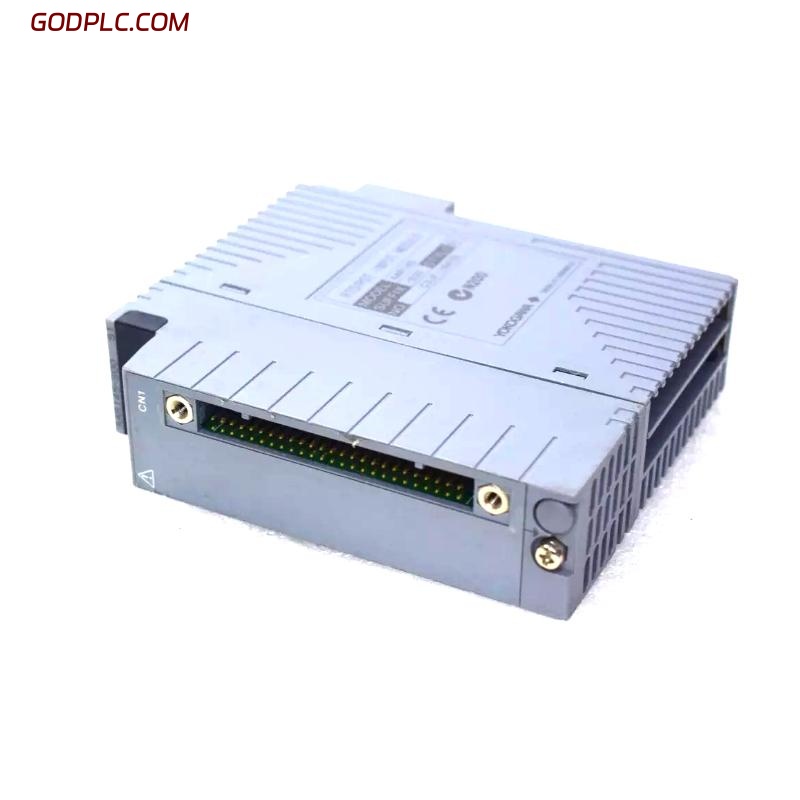

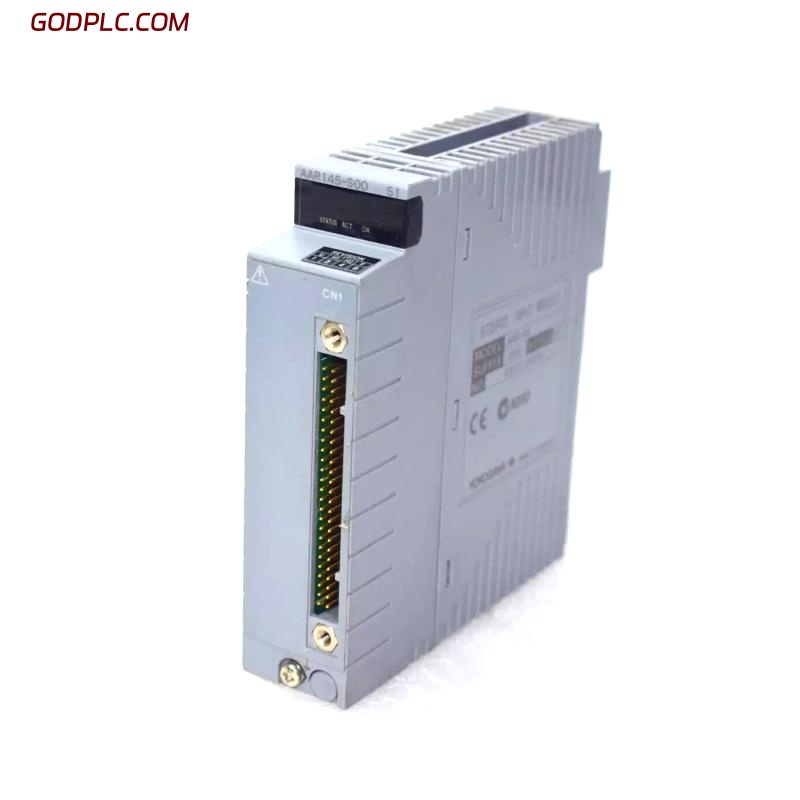

Yokogawa AAR145-S00 S1 RTD/POT 16-Channel Input Module
Product Overview
The Yokogawa AAR145-S00 S1 module is a 16-channel input module designed for measuring Resistance Temperature Detectors (RTDs) and potentiometers (POT) within Yokogawa CENTUM distributed control systems (DCS). This module enables precise temperature and position measurements through accurate signal conditioning of RTD and potentiometer inputs. It supports high channel density, reducing system footprint while maintaining reliability and measurement accuracy in demanding industrial environments.
Key Features
-
Supports up to 16 channels for RTD and potentiometer inputs
-
High accuracy temperature measurement with RTD sensors
-
Compatible with various RTD types and potentiometer ranges
-
Advanced signal conditioning for noise reduction and signal stability
-
Hot-swappable design for easy maintenance without system shutdown
-
Conformal coating for protection against harsh industrial conditions
-
Compatible with Yokogawa CENTUM DCS platform
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 RTD/POT inputs |
| Supported RTD Types | Pt100, JPt100, Cu50, Ni120, others |
| Potentiometer Range | Configurable up to 10 kΩ |
| Input Accuracy | ±0.1°C typical |
| Response Time | < 500 ms |
| Isolation | Channel-to-channel and system isolation |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -10°C to +55°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | Conformal coated |
3.4 System Integration
| Item | Specification |
|---|---|
| System Compatibility | Yokogawa CENTUM DCS |
| Installation | Standard module rack mounting |
| Configuration Tool | CENTUM engineering software |
Industry Applications
-
Oil & Gas – Accurate temperature and position measurement for process control
-
Chemical Processing – Reliable RTD and potentiometer inputs for monitoring reactors and vessels
-
Power Generation – Temperature sensing for turbine and boiler control
-
Pharmaceutical – Precise process measurement for validated environments
-
Water Treatment – Position and temperature inputs for pump and valve control
The Yokogawa AAR145-S00 S1 RTD/POT 16-Channel Input Module offers high-density, accurate measurement capabilities for RTD and potentiometer signals, enhancing the flexibility and reliability of Yokogawa CENTUM control systems.
Yokogawa AAR145-S00 S1 RTD/POT 16-Channel Input Module is in stock. Please contact us for a quick quote and competitive pricing.
