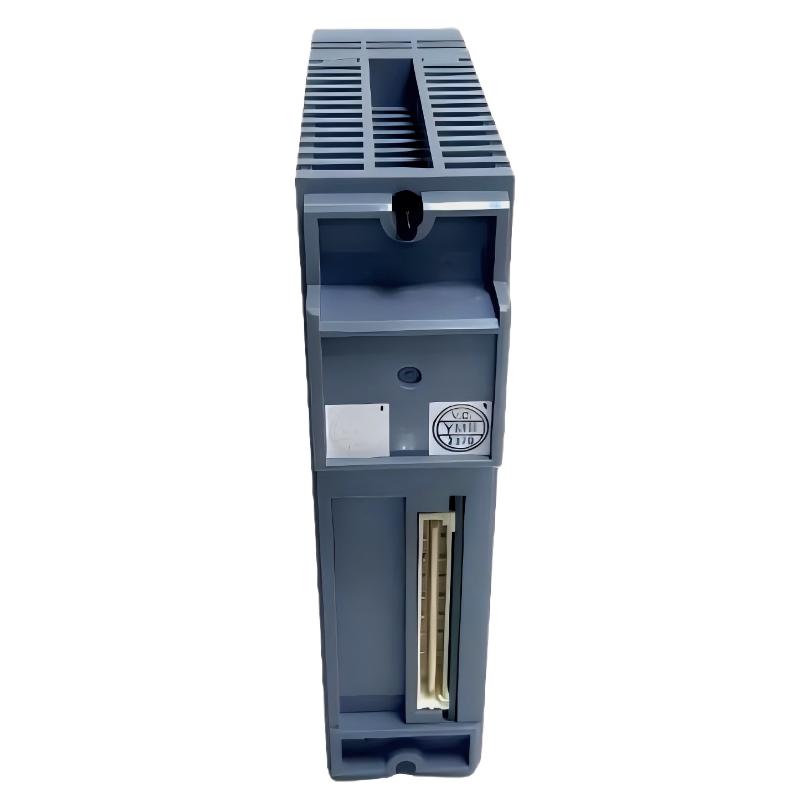

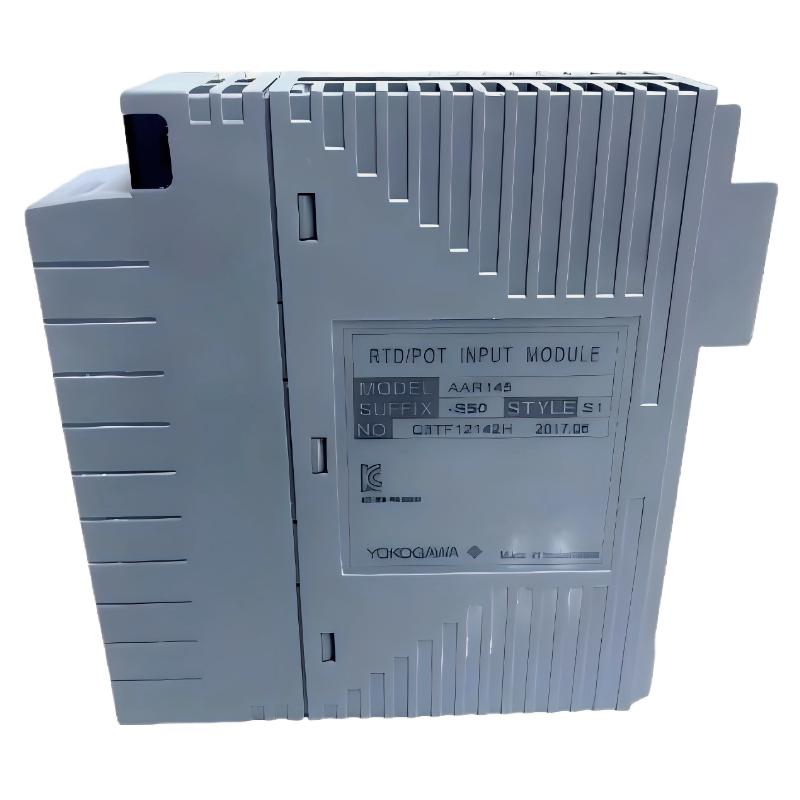

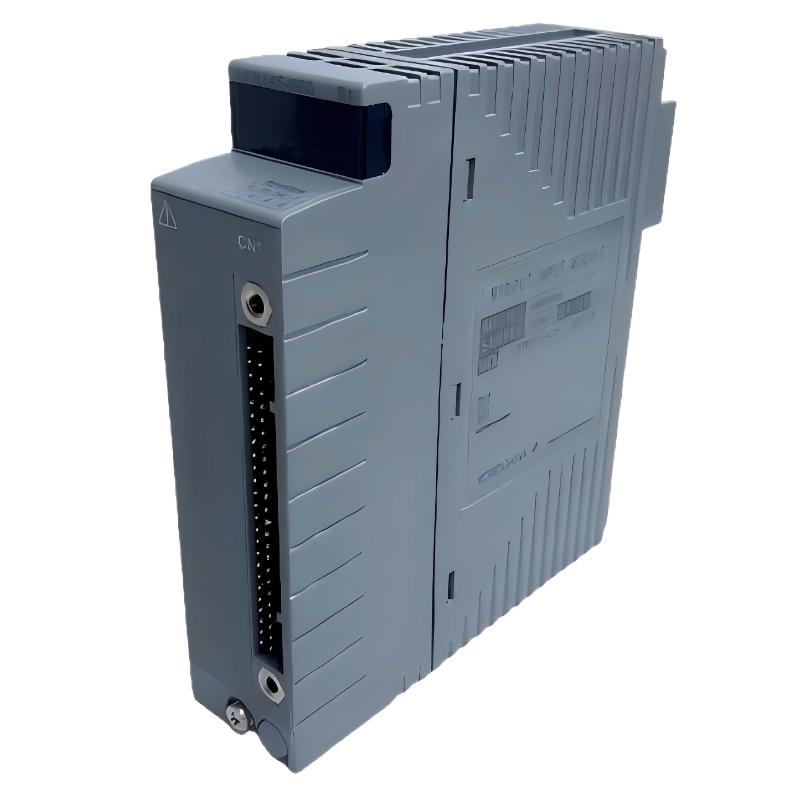

Yokogawa AAR145-S50 S1 RTD/POT 16-Channel Input Module Isolation
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAR145-S50 S1 |
| Product Type | RTD/POT 16-Channel Input Module (Isolated) |
| Input Channels | 16 channels (channel-to-channel isolated, individually configurable) |
| Input Signal Types | RTD (Pt100, supports 2/3/4-wire) / Potentiometer (POT) |
| RTD Measurement Range | -200 to 850°C (Pt100) |
| Potentiometer Range | 0 to 10 kΩ |
| Lead Resistance | ≤150 Ω per wire (RTD measurement) |
| Measurement Current | Approx. 1 mA (RTD) |
| Accuracy | RTD: ±0.1% FS; POT: ±0.2% FS |
| Temperature Drift | RTD: ±0.3 Ω/10°C; POT: ±0.4%/10°C |
| Input Voltage Tolerance | ±5 V |
| Isolation | Channel-to-channel and channel-to-ground: 500 V AC (1 min) |
| Data Update Period | 1 s |
| Burn-out Detection | Supported (approx. 60 s detection time) |
| Power Consumption | Approx. 350–500 mA @ 5 V DC |
| External Connection | KS8/AKB335 cable or 40-pin connector |
| Operating Temperature | -20°C to 60°C |
| Dimensions | 130 × 127.2 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What types of RTDs are supported?
The module supports standard Pt100 RTDs and is compatible with 2-wire, 3-wire, and 4-wire configurations.
2. Can RTD and potentiometer inputs be mixed?
Yes, each channel can be independently configured, allowing mixed RTD and potentiometer inputs on the same module.
3. What kind of isolation does the module provide?
It provides electrical isolation between channels and between channels and ground to minimize noise and improve system safety.
4. What are the wiring requirements for RTD inputs?
Each lead wire resistance should not exceed approximately 150 Ω to maintain measurement accuracy.
5. Are there any limitations for potentiometer inputs?
The supported range is 0 to 10 kΩ, and it is recommended that the effective measurement span be at least 50% of the total resistance.
6. What is the data acquisition speed?
The module has a typical data update period of 1 second, suitable for standard process monitoring.
7. Does the module support fault detection?
Yes, it includes burn-out (open circuit) detection to identify sensor disconnection or failure.
8. What systems is this module typically used in?
It is commonly used in Yokogawa DCS systems such as CENTUM VP and FIO for temperature and position measurement applications.
Yokogawa AAR145-S50 S1 RTD/POT 16-Channel Input Module Isolation is in stock. Please contact us for a quick quote and competitive pricing.
