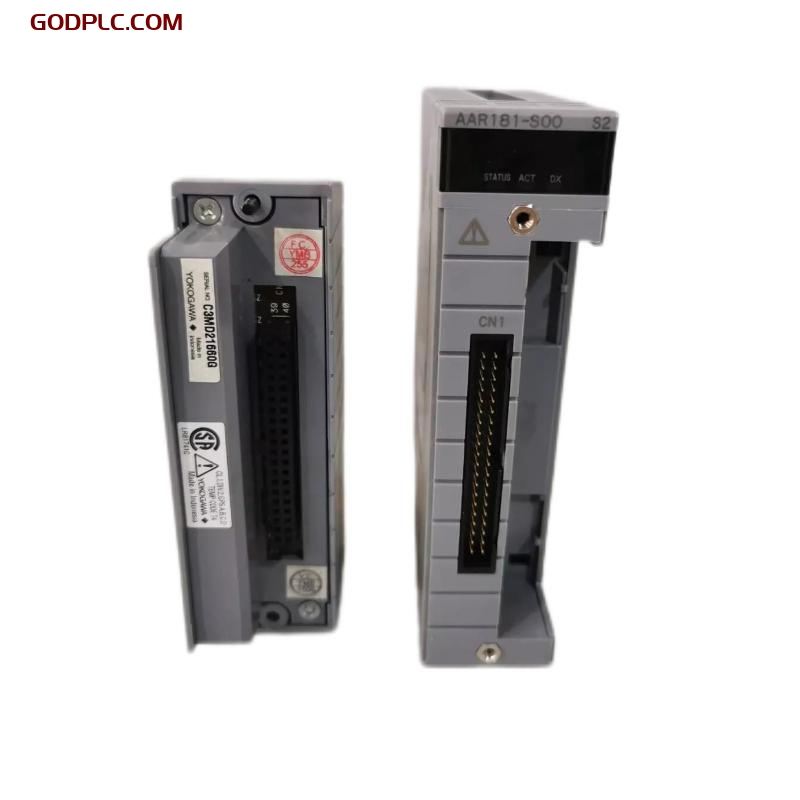

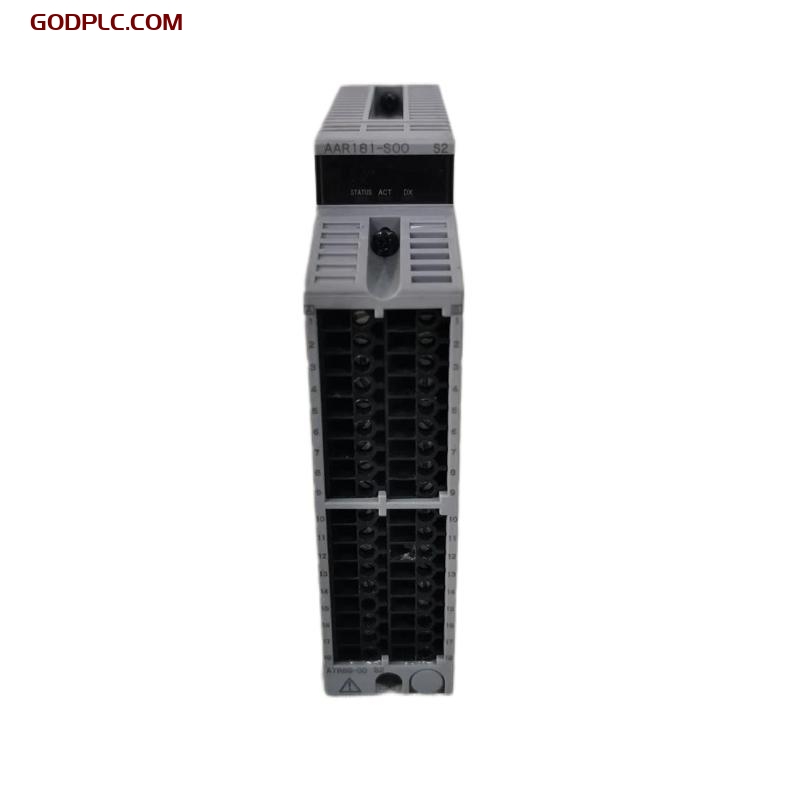

Yokogawa AAR181-S00 S2 RTD Input Module

Product Overview

The Yokogawa AAR181-S00 S2 RTD Input Module is engineered to support high-precision temperature measurement applications by accepting signals from RTD (Resistance Temperature Detector) sensors. Designed for integration with Yokogawa’s automation platforms, this module ensures accurate and reliable acquisition of temperature data critical for industrial processes. With multiple input channels and comprehensive diagnostic capabilities, it supports a wide range of RTD types and is suitable for deployment in process control environments requiring high safety and accuracy.

Key Features

• Multi-Channel RTD Input: Supports up to 8 independent RTD input channels, allowing efficient temperature monitoring across multiple points.

• Wide Sensor Compatibility: Compatible with various RTD types, including Pt100, Pt1000, and other standard sensors, providing flexibility in deployment.

• High Accuracy: Delivers precise temperature measurements with minimal error, ensuring optimal process control and monitoring.

• Open-Circuit Detection: Built-in diagnostics for open wire or sensor failure detection to enhance system reliability and safety.

• Isolated Channels: Electrical isolation between channels helps prevent interference and ensures signal integrity.

• Industrial Durability: Designed for continuous operation in harsh environments, with robust build quality and extended temperature tolerance.

• Easy Integration: Seamlessly integrates into Yokogawa’s control systems for straightforward configuration and deployment.

Technical Specifications

3.1 Dimensions and Weight

3.2 Module Information

3.3 Electrical and Physical Characteristics

3.4 System Compatibility

Industry Applications

• Process Automation: Monitors temperature in reactors, distillation columns, and furnaces with precision and reliability.

• Power Plants: Measures critical thermal parameters in turbines, boilers, and heat exchangers.

• Chemical and Petrochemical: Ensures accurate thermal control in sensitive chemical processing environments.

• Pharmaceutical Manufacturing: Supports validation and monitoring of temperature in cleanroom and batch production.

• Food and Beverage: Helps maintain compliance and quality through accurate thermal control in processing and storage areas.

The Yokogawa AAR181-S00 S2 RTD Input Module offers a robust and precise solution for high-reliability temperature measurement in a variety of demanding industrial environments. Its compatibility with multiple RTD types, advanced diagnostics, and seamless system integration make it a trusted choice for mission-critical automation applications.
