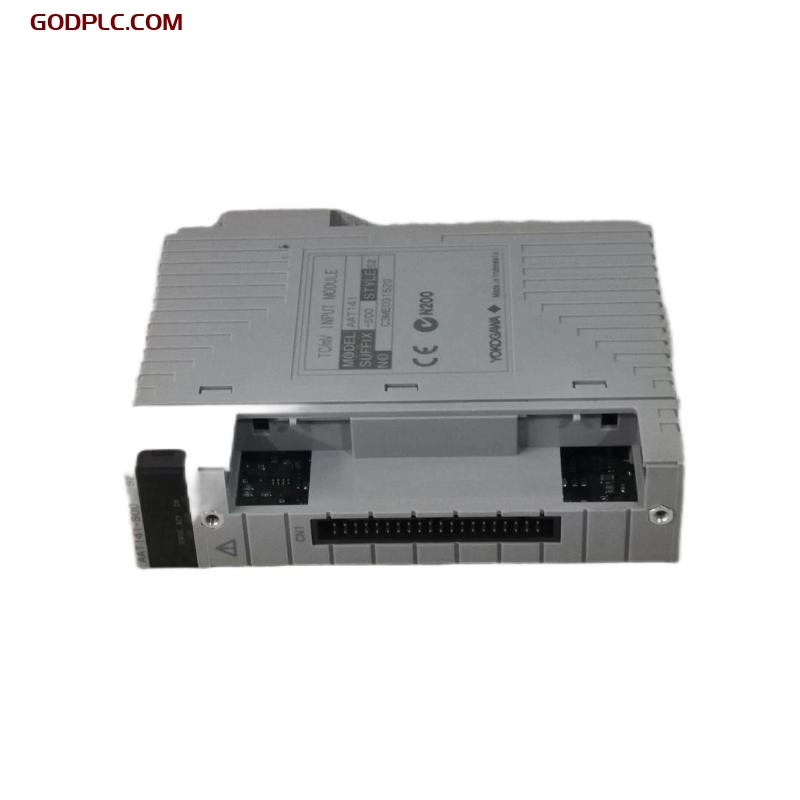

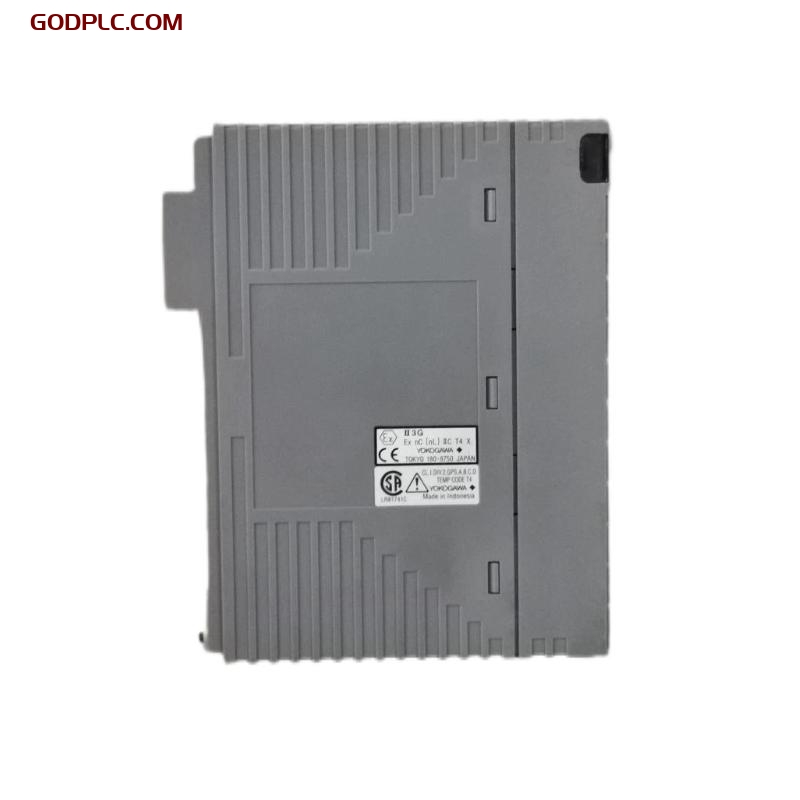

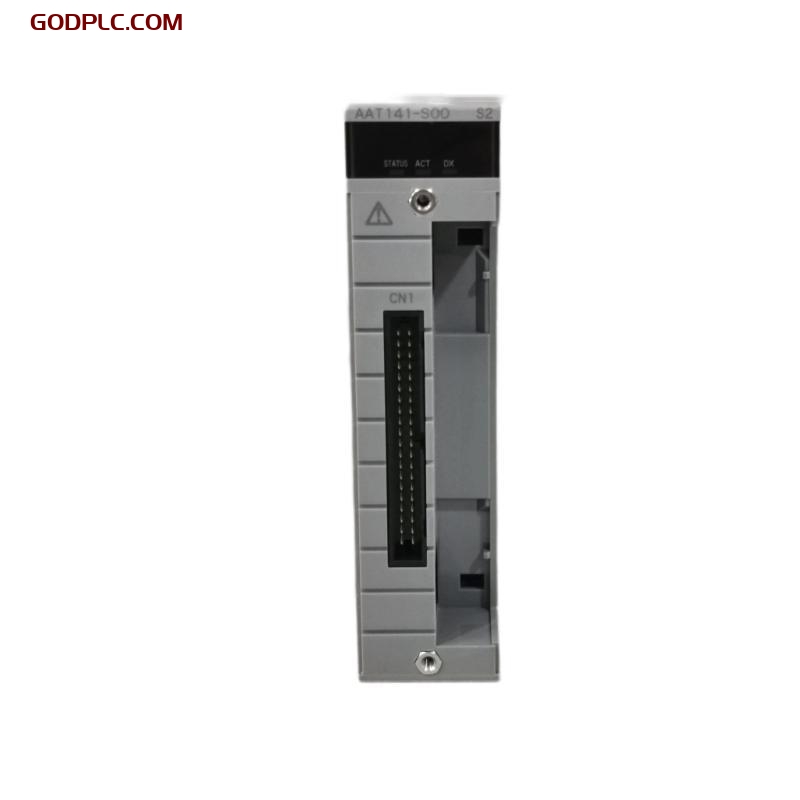

Yokogawa AAT141-S00 S2 TC/mV Input Module

Product Overview

The Yokogawa AAT141-S00 S2 TC/mV Input Module is an advanced input module designed to provide high-precision measurement of temperature using thermocouples (TC) and millivolt (mV) signals. Ideal for a variety of industrial automation systems, this module ensures seamless integration with Yokogawa’s control platforms, delivering reliable and accurate data for temperature monitoring and control. It is equipped with features like automatic cold-junction compensation and multiple input channel support, making it a versatile solution for temperature sensing applications.

Key Features

• Supports Thermocouple and mV Inputs: Compatible with a wide range of thermocouples (Type K, J, T, E, R, S, B) and millivolt (mV) signals for flexible temperature measurement.

• Cold-Junction Compensation: Automatically compensates for cold-junction effects, ensuring accurate readings for thermocouple inputs.

• Multiple Input Channels: Provides several input channels to simultaneously measure temperature at multiple points, ideal for complex systems.

• Diagnostics: Built-in diagnostics for detecting sensor faults, input errors, and open circuits, increasing system reliability.

• Compact and Robust Design: Optimized for use in space-constrained environments and capable of operating in harsh industrial conditions.

• High Measurement Accuracy: Offers high precision in temperature readings, ensuring reliable performance for safety-critical applications.

Technical Specifications

3.1 Dimensions and Weight

3.2 Module Information

3.3 Electrical and Physical Characteristics

3.4 System Compatibility

Industry Applications

• Process Automation: Used in temperature monitoring of critical process environments such as reactors and kilns.

• Energy Management: Ideal for temperature monitoring in energy generation equipment like turbines and boilers.

• Chemical and Petrochemical: Provides precise temperature measurements in chemical processes, ensuring safety and process integrity.

• Food and Beverage: Ensures temperature control in cooking, sterilization, and cold storage processes.

• Manufacturing and Metallurgy: Key in controlling temperatures in furnaces, heat treatment processes, and material testing.

The Yokogawa AAT141-S00 S2 TC/mV Input Module offers a high level of accuracy and flexibility for industrial temperature monitoring. Its advanced features such as cold-junction compensation, multiple input channels, and diagnostics make it an excellent choice for applications where precise temperature measurement is critical. Whether for process control, energy management, or safety systems, this module provides the reliability and performance needed in demanding industrial environments.
