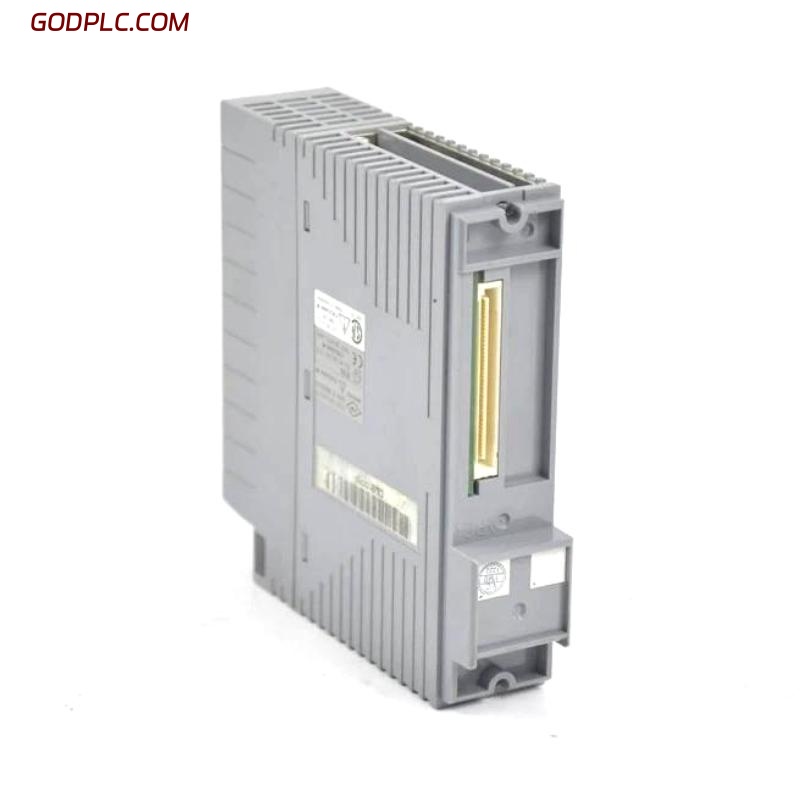

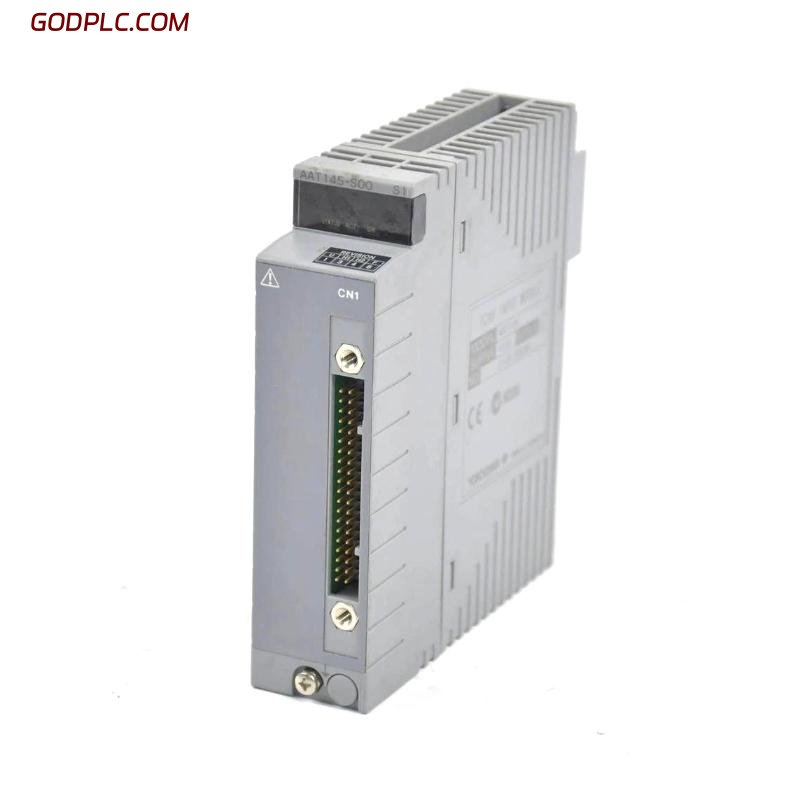

Yokogawa AAT145-S00 TC/mV Input Module
Product Overview
The Yokogawa AAT145-S00 TC/mV Input Module is designed for high-performance temperature measurement and signal processing. It supports a wide range of thermocouples (J, K, T, E, etc.) and millivolt signals, offering exceptional accuracy and reliability in industrial process control applications. The module is engineered for use in harsh environments and integrates seamlessly with Yokogawa’s Centum and ProSafe systems, providing enhanced diagnostics, stability, and ease of use. It is ideal for applications requiring precise temperature monitoring, such as in chemical plants, power generation, and petrochemical facilities.
Key Features
-
Wide Thermocouple Compatibility – Supports various thermocouple types, including J, K, T, E, and others, ensuring flexibility across different temperature ranges
-
Millivolt Input Support – Handles millivolt signals for applications needing high-resolution voltage measurements
-
High Precision – 16-bit resolution for superior accuracy in signal conversion and temperature measurement
-
Built-in Diagnostics – Provides fault detection capabilities, including open circuit and wiring issues, to ensure system reliability
-
Channel Isolation – Prevents cross-channel interference for accurate signal processing
-
System Integration – Seamlessly integrates with Yokogawa Centum and ProSafe control systems for simplified configuration and reliable operation
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 32.8 × 130 × 127.2 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 isolated thermocouple or millivolt input channels |
| Input Signal | Thermocouples (J, K, T, E, etc.), Millivolt signals |
| Resolution | 16-bit analog-to-digital conversion |
| Input Impedance | 1 MΩ (for voltage inputs) |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | 24 VDC (nominal), supplied via system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (Enclosed unit) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System | Yokogawa Centum, ProSafe systems |
| Application Type | Temperature and voltage signal acquisition |
| Redundancy Support | Supported with redundant systems |
| Field Device Support | Thermocouples, voltage sensors, and other input devices |
Industry Applications
-
Chemical Processing – High-precision temperature monitoring and signal processing in reactors, distillation columns, and other chemical production systems
-
Power Generation – Temperature measurement in turbines, boilers, and generators for efficient and safe power production
-
Oil & Gas – Reliable monitoring of temperature in drilling, refining, and offshore platforms
-
Pharmaceutical – Accurate temperature control in sensitive pharmaceutical manufacturing processes
-
Water and Wastewater – Monitoring of pumps, filtration systems, and other critical equipment in water treatment plants
The Yokogawa AAT145-S00 TC/mV Input Module is designed to meet the demanding requirements of precision temperature monitoring in a variety of industrial environments. With its robust diagnostics, high accuracy, and compatibility with Yokogawa control systems, it ensures reliable performance and ease of integration in critical processes.
Yokogawa AAT145-S00 TC/mV Input Module is in stock. Please contact us for a quick quote and competitive pricing.
