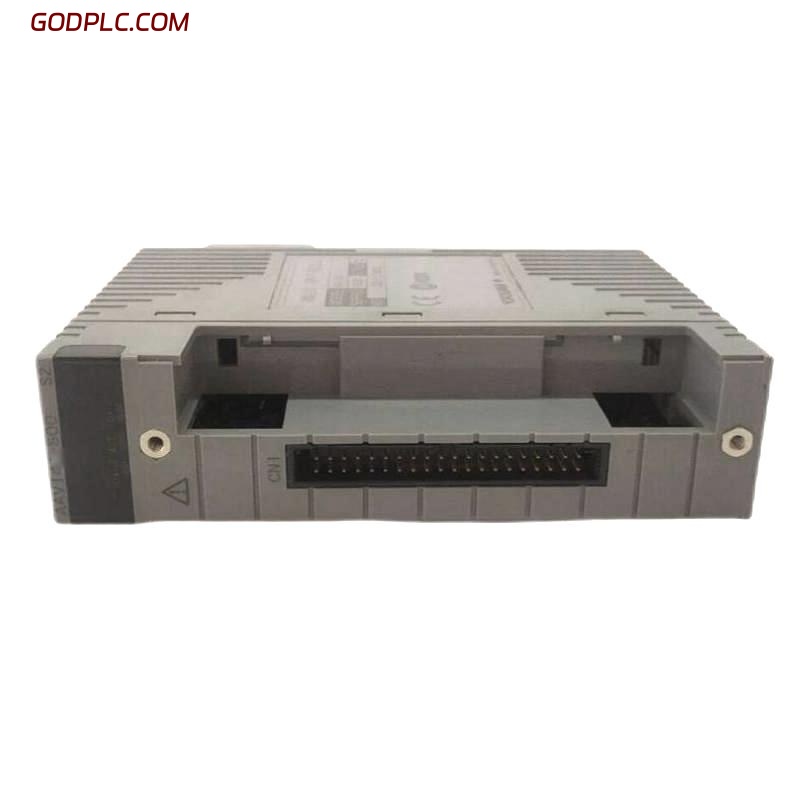

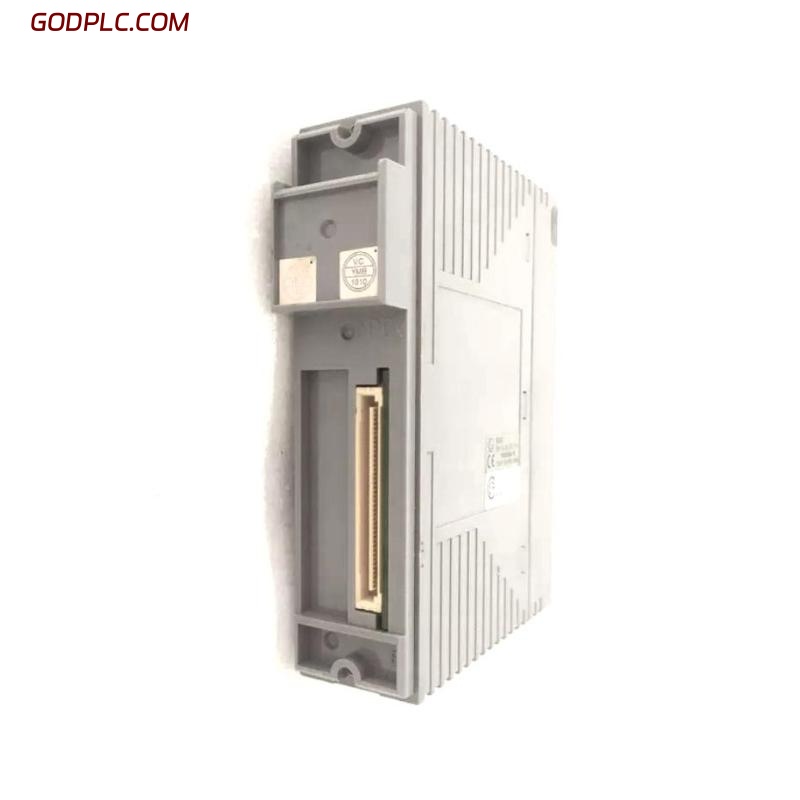

Yokogawa AAV142-S00 Analog Input Module
Product Overview
The Yokogawa AAV142-S00 Analog Input Module is designed to provide precise and reliable measurement of analog signals in industrial automation systems. It supports a variety of input types, including voltage, current, and temperature inputs, making it versatile for a range of applications in industries such as process control, energy, and manufacturing. The module is engineered for high accuracy and fast response, ensuring optimal performance in real-time monitoring and control.
Key Features
-
Multi-Input Type Support – Compatible with a wide range of analog inputs including voltage, current, and thermocouples for diverse applications
-
High Accuracy – Provides high-precision measurements with a resolution of up to 16 bits, ensuring reliable signal conversion
-
Wide Input Range – Supports a broad input range from 0 to 20 mA, 0 to 10 V, and various thermocouple types (J, K, T, E, etc.)
-
Isolated Inputs – Offers galvanic isolation between input channels, preventing electrical interference and enhancing signal integrity
-
Built-In Diagnostics – Features diagnostic indicators to monitor module health, alerting users to potential issues before they impact system performance
-
Compact Design – Optimized for space efficiency, the module can be easily integrated into existing control systems without taking up excessive space
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 32.8 × 130 × 107.5 mm |
| Weight | 0.2 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 independent channels |
| Input Range | 0–20 mA, 0–10 V, thermocouples (J, K, T, E) |
| Resolution | 16-bit digital-to-analog conversion |
| Accuracy | ±0.1% of full scale |
| Input Impedance | ≥2 MΩ for voltage inputs, 250 Ω for current inputs |
| Isolation | 1500 V RMS (field to system) |
| Power Supply Voltage | 24 VDC ± 10% |
| Power Consumption | 1.5 W (typical) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Yokogawa industrial control systems |
| Compatible Modules | Integrated with Yokogawa control systems |
| Module Type | Analog Input Module |
Industry Applications
-
Process Control – Monitors and controls process variables such as pressure, flow, temperature, and level in chemical, pharmaceutical, and food processing industries
-
Energy and Utilities – Used in power generation plants and electrical substations for precise monitoring of analog signals from field instruments
-
Manufacturing Automation – Supports real-time monitoring and control of production lines, providing accurate data for machinery and equipment operation
-
Environmental Monitoring – Measures and controls environmental parameters in water treatment plants, air quality monitoring, and waste management facilities
-
Building Automation – Integrated into HVAC and lighting control systems for efficient energy management and monitoring
The Yokogawa AAV142-S00 Analog Input Module offers high-accuracy measurements with versatile input types and strong isolation, making it an ideal solution for industrial automation and control systems. With its advanced features and reliability, it ensures seamless integration and precise data acquisition across a wide range of applications.
Yokogawa AAV142-S00 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
