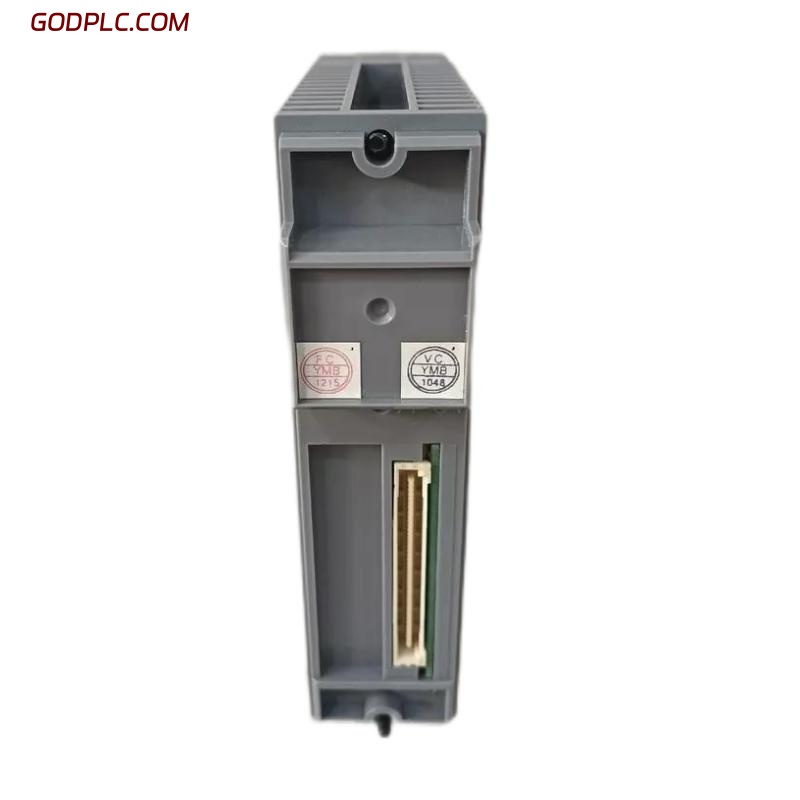

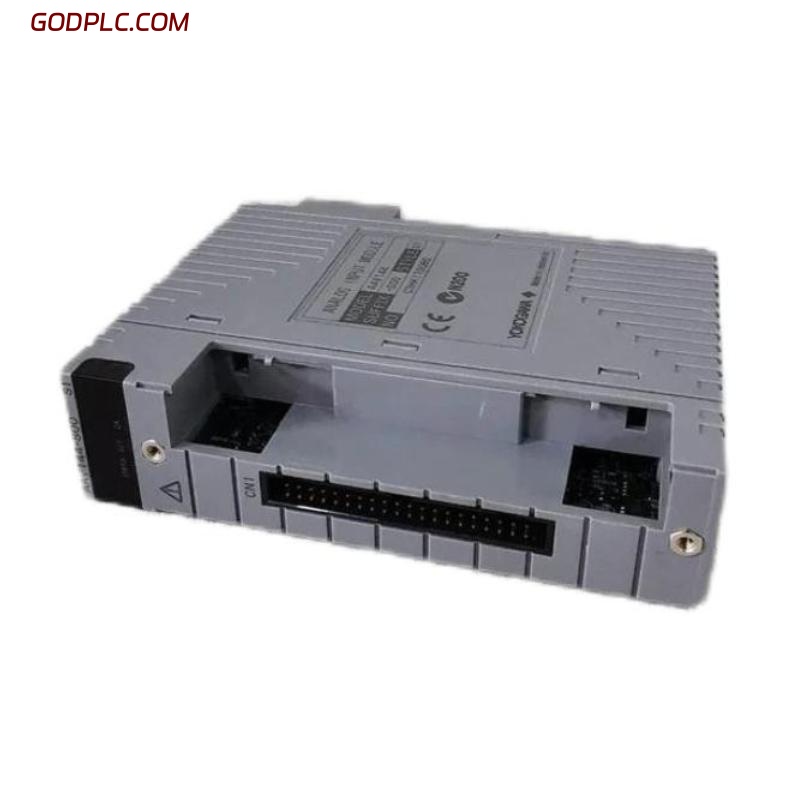

Yokogawa AAV144-SM0 Analog Output Module
Product Overview
The Yokogawa AAV144-SM0 is a precision analog output module designed for industrial process control systems. It converts digital signals from Yokogawa CENTUM VP distributed control systems (DCS) into accurate 4–20 mA analog output signals for field devices. This module provides reliable and stable output performance, enabling precise control of actuators, valves, and other process equipment in critical industrial environments.
_
Main Features
-
4-channel analog output configuration for flexible control
-
High-accuracy 4–20 mA signal output
-
Fast response time for real-time process control
-
Hot-swappable design for maintenance without system shutdown
-
Self-diagnostic and error detection functions to enhance operational reliability
-
CE and UL certified for industrial safety compliance
-
Compact form factor suitable for DIN rail or 19-inch rack mounting
-
Seamless integration with Yokogawa CENTUM VP DCS
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
_
General Information
| Item | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | AAV144-SM0 |
| Product Type | Analog Output Module |
| Mounting | DIN rail or rack mount |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
_
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 4 |
| Output Signal Type | 4–20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Update Rate | 10 ms/channel |
| Load Resistance | 600 Ω max |
| Power Supply | 24V DC ±10% |
_
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 10–90% RH (non-condensing) |
| Vibration | 5–150 Hz, 2G |
| Shock Resistance | 15G, 11 ms |
| Protection Class | IP20 |
_
Industry Applications
The Yokogawa AAV144-SM0 is widely used in:
-
Oil & Gas: Precise control of valve positions and actuators in refineries and pipelines
-
Chemical Plants: Accurate regulation of process flows and reactor parameters
-
Power Generation: Control of fuel, steam, and cooling water valves
-
Pharmaceuticals: Precise process control for production equipment
-
Water Treatment: Automated regulation of pumps and dosing systems
Yokogawa AAV144-SM0 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
