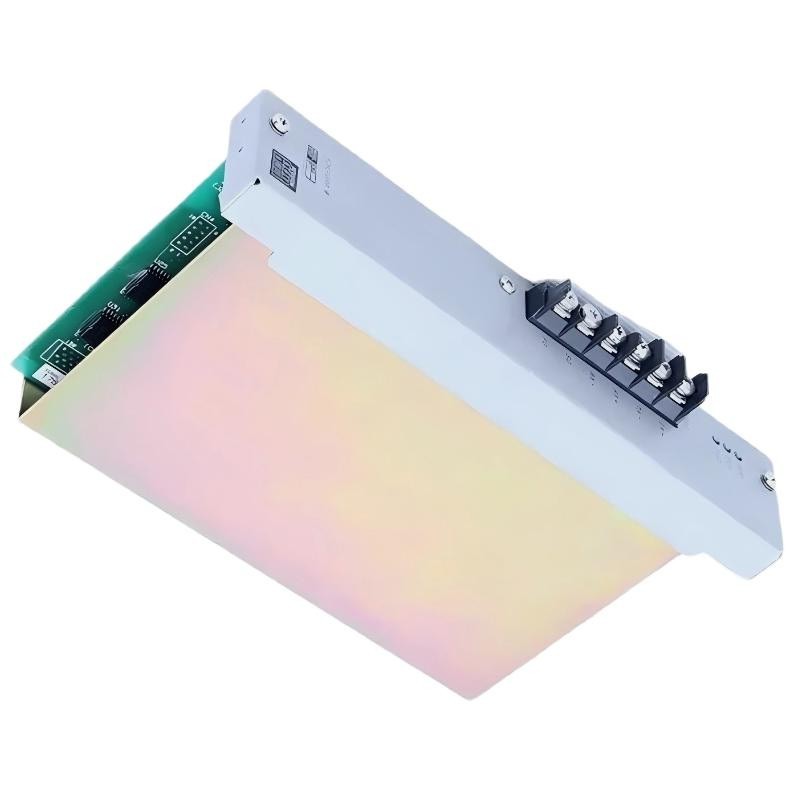

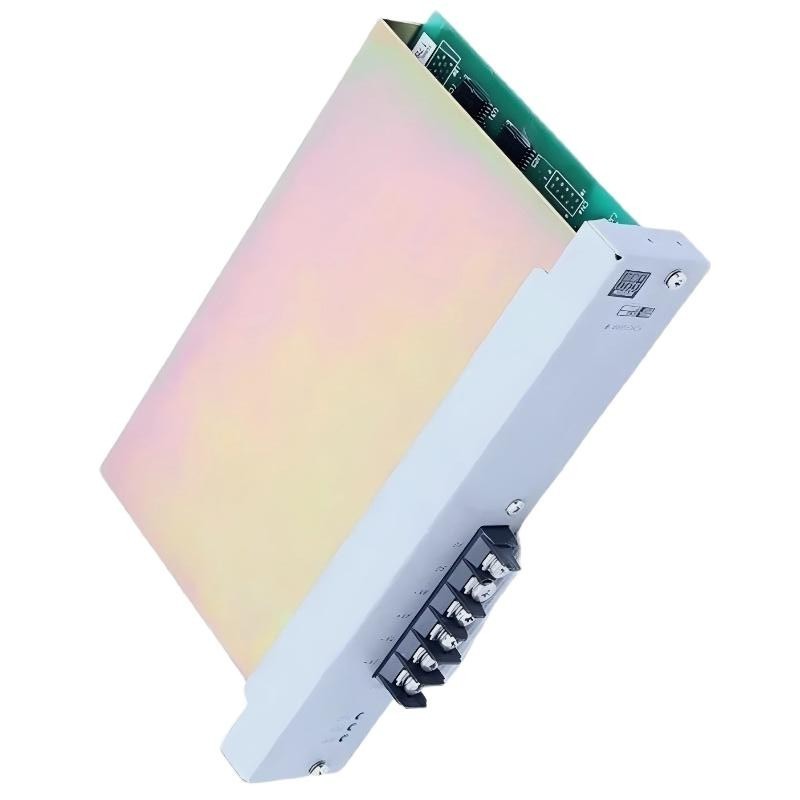

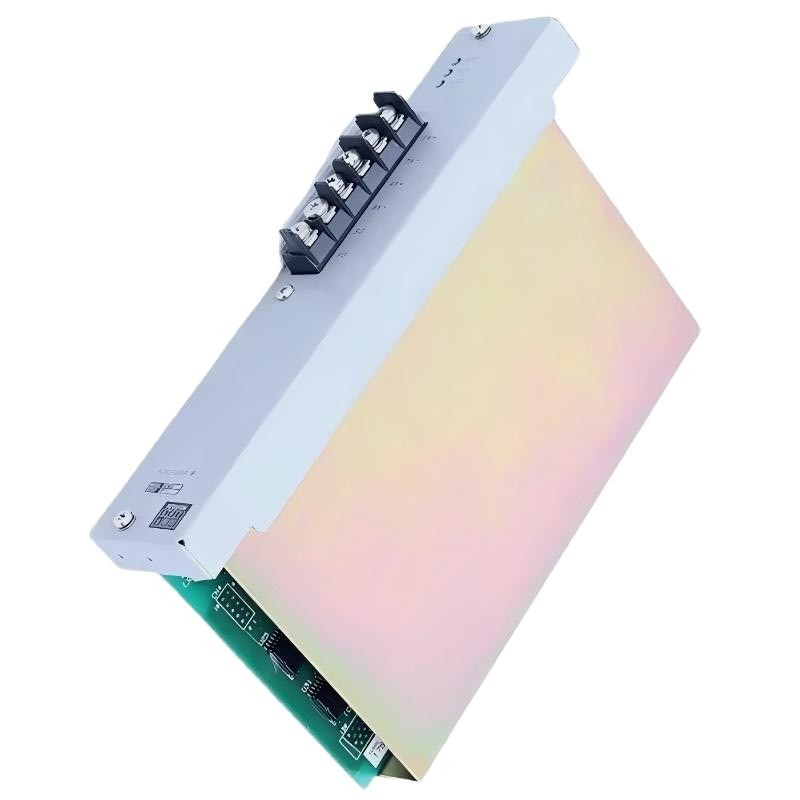

Yokogawa ACM22 RS-422/485 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ACM22 RS-422/485 |
| Communication Interface | RS-422 / RS-485 |
| Transmission Mode | Asynchronous serial communication |
| Network Topology | Multi-drop (RS-485), Point-to-point (RS-422) |
| Baud Rate | Configurable (typically 1200 bps to 115200 bps) |
| Data Bits | 7 or 8 bits selectable |
| Stop Bits | 1 or 2 bits selectable |
| Parity | None, Even, Odd selectable |
| Protocol Support | Modbus RTU / Custom protocol |
| Maximum Nodes | Up to 32 devices (RS-485 typical) |
| Transmission Distance | Up to 1200 meters (depending on baud rate and cable) |
| Electrical Isolation | Yes (signal isolation provided) |
| Power Supply | Supplied from host device |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Mounting | Internal slot-mounted |
| Dimensions | 125 × 130 × 248 mm |
| Weight | 0.14 kg |
FAQ
1. What is the difference between RS-422 and RS-485 in this module?
RS-422 is typically used for point-to-point communication with higher noise immunity, while RS-485 supports multi-drop communication, allowing multiple devices on the same bus.
2. How many devices can be connected in RS-485 mode?
Typically, up to 32 devices can be connected on a single RS-485 network segment, depending on system configuration.
3. What is the maximum communication distance supported?
The module can support communication distances up to 1200 meters, depending on the selected baud rate and cable quality.
4. Does the module support Modbus protocol?
Yes, it supports Modbus RTU, making it suitable for industrial communication systems.
5. Is termination required for RS-485 communication?
Yes, proper termination resistors are recommended at both ends of the RS-485 bus to ensure signal integrity.
6. Can the communication parameters be configured?
Yes, parameters such as baud rate, data bits, parity, and stop bits are configurable.
7. Does it provide protection against electrical noise?
Yes, the module includes electrical isolation to improve reliability in noisy industrial environments.
8. Can RS-422 and RS-485 be used simultaneously?
No, the module is configured to operate in either RS-422 or RS-485 mode at a time, depending on system requirements.
Yokogawa ACM22 RS-422/485 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
