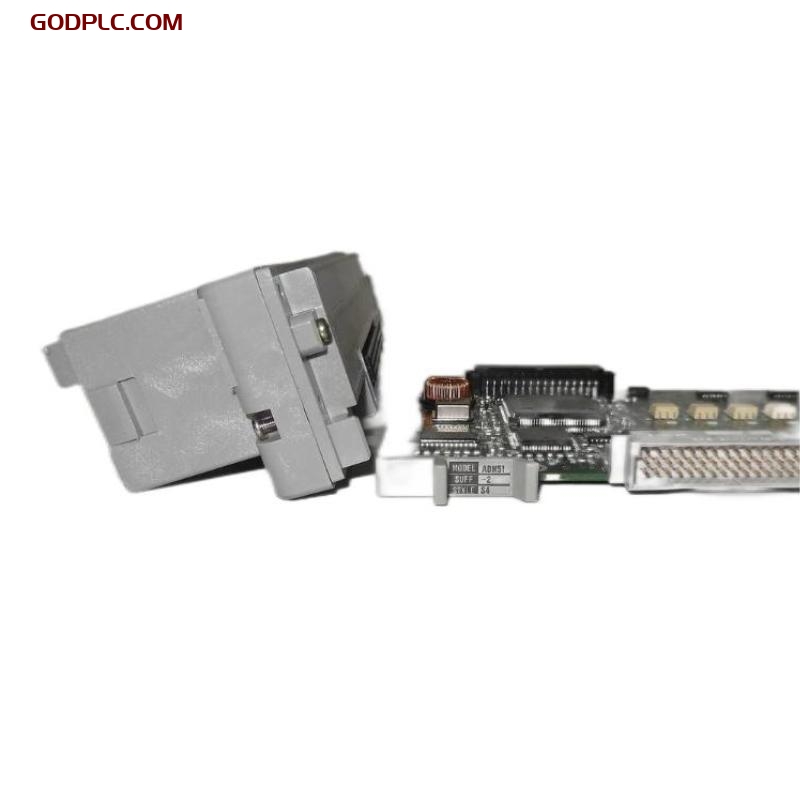

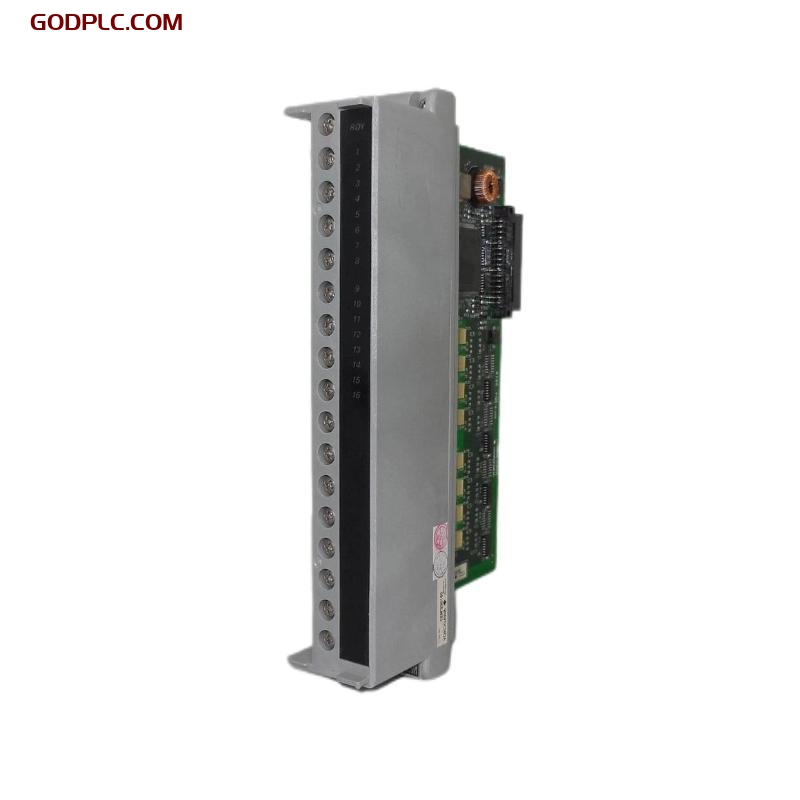

Yokogawa ADM51-2 S4 Contact Output Module
Product Overview
The Yokogawa ADM51-2 S4 Contact Output Module is a high-performance component designed for use in Yokogawa’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). This module is responsible for providing reliable and precise output signals to control external devices such as relays, valves, or other field equipment that requires contact-based output. The ADM51-2 S4 module ensures seamless integration with Yokogawa’s control systems, offering robust performance for a variety of industrial applications where control and automation are critical.
Key Features
-
Contact Output Control: Provides reliable contact-based output signals for controlling external devices such as relays, solenoids, and actuators.
-
Multiple Output Channels: Offers multiple channels for controlling various devices simultaneously, enhancing system flexibility and capacity.
-
Versatile Contact Types: Supports both normally open (NO) and normally closed (NC) contacts, allowing integration with a wide variety of external field devices.
-
Optical Isolation: Each output channel is optically isolated to protect the module and other connected devices from electrical surges, noise, or voltage spikes, ensuring safe and stable operation.
-
Seamless Integration: Easily integrates with Yokogawa’s DCS and PLC systems, ensuring smooth communication and control across industrial applications.
-
Compact and Modular Design: The module’s compact design fits seamlessly into existing control racks, offering efficient space utilization and enabling easy expansion or replacement without system downtime.
-
Built-in Diagnostics: Diagnostic LEDs are available for monitoring the status of each output channel, facilitating real-time troubleshooting and simplifying maintenance tasks.
-
High Reliability: Engineered for durability in harsh industrial environments, the module delivers consistent performance over long periods of operation.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 100 x 60 mm |
| Weight | 0.3 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | ADM51-2 S4 |
| Module Type | Contact Output Module |
| Number of Channels | 8 Channels |
| Mounting | Standard Yokogawa control rack |
| Material | Industrial-grade metal and plastic |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Type | Contact (NO/NC) |
| Output Voltage | 24 V DC |
| Output Current | 1 A per channel (max) |
| Power Consumption | < 6 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Yokogawa DCS and PLC |
| Communication Interface | I/O Bus |
| Software Configuration | Yokogawa control and monitoring tools |
Industry Applications
-
Industrial Automation: Enables control of a variety of field devices such as relays, motors, and actuators, essential for automation systems in manufacturing plants, assembly lines, and machinery control.
-
Power Generation: Provides reliable contact outputs for controlling auxiliary systems, switches, breakers, and other devices in power plants and energy generation facilities.
-
Oil & Gas: Used to control valves, pumps, and safety shutdown systems in upstream and downstream operations, ensuring smooth and efficient processes.
-
Chemical Processing: Manages safety interlocks, process control valves, and other critical components to maintain safe and efficient operations in chemical manufacturing environments.
-
Water and Wastewater Treatment: Facilitates control of valves, pumps, and other critical devices, ensuring the smooth operation of water treatment and distribution systems.
-
Building Automation: Supports the control of HVAC systems, lighting, security devices, and other elements of building management systems.
The Yokogawa ADM51-2 S4 Contact Output Module provides a reliable solution for controlling external devices in a variety of industrial applications. Its robust design, ease of integration, and flexibility make it an excellent choice for enhancing automation and control systems across multiple sectors.
