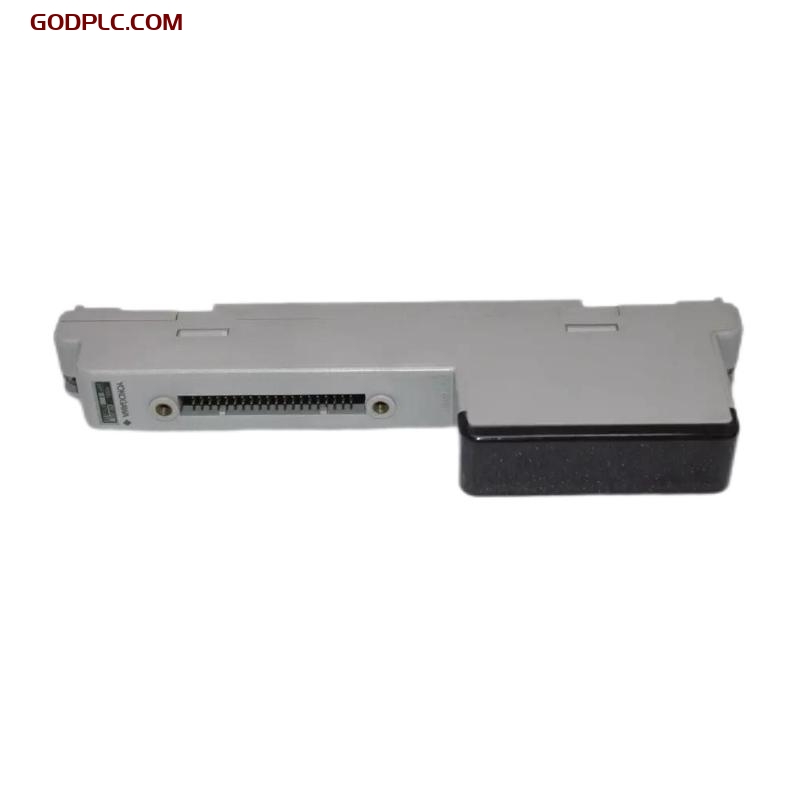

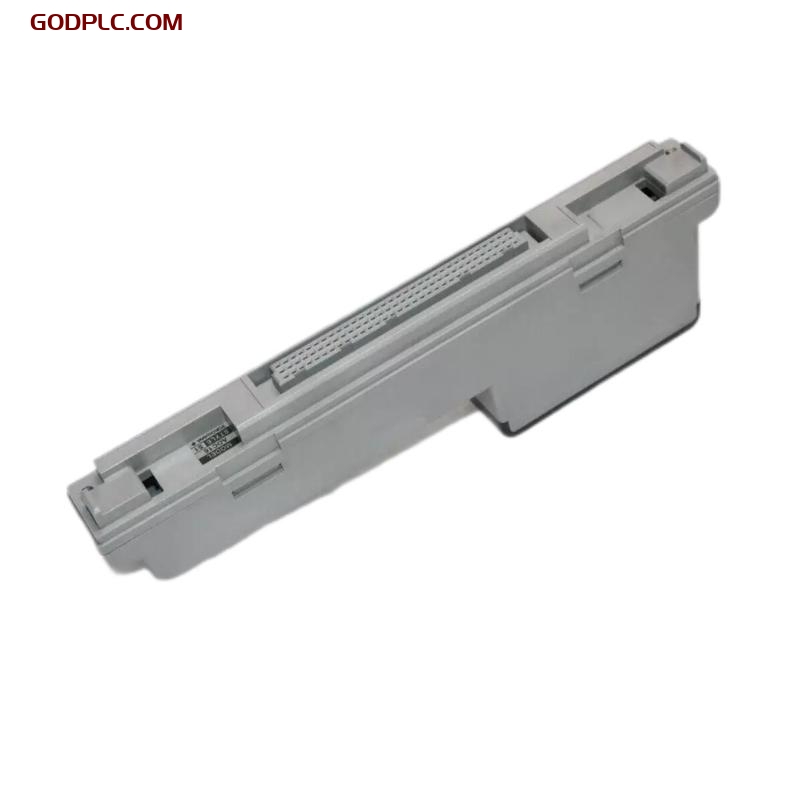

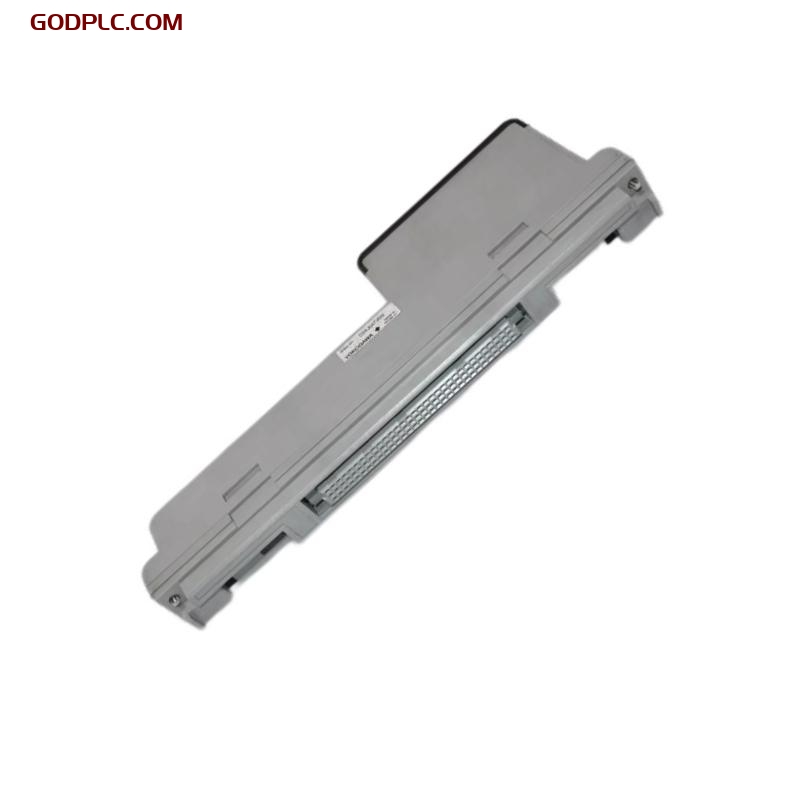

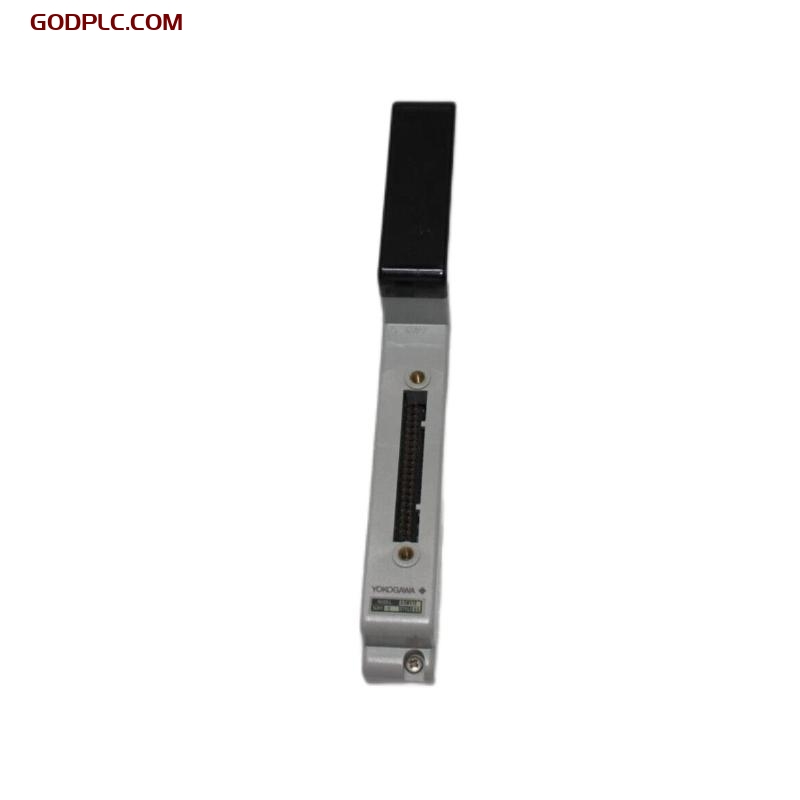

Yokogawa ADM51C-2 Contact Output Module
Product Overview
The Yokogawa ADM51C-2 is a 16-point digital output module designed for integration within Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems (DCS). This module provides reliable transistor contact outputs to control field devices such as relays, solenoids, and alarms. With configurable output modes and seamless communication within a remote I/O (RIO) system, the ADM51C-2 offers a robust solution for industrial automation and safety-critical applications.
Key Features
-
16-Point Digital Output: Provides 16 individually controllable output channels for direct interface with field equipment.
-
Transistor Contact Type: Utilizes open collector transistor outputs suitable for resistive and inductive loads.
-
Pulse Output Capability: Each channel supports configurable pulse width output ranging from 0.1 to 7200 seconds with a resolution of 20 milliseconds.
-
High Reliability: Engineered for use in industrial DCS environments with robust diagnostic and output monitoring features.
-
System Compatibility: Fully compatible with Yokogawa’s CENTUM CS 3000 and CENTUM VP systems and the Remote I/O (RIO) infrastructure.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 30 x 40mm |
| Weight | 0.14 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | ADM51C-2 |
| Module Type | Contact Output Module |
| Output Channels | 16 |
| Mounting | Installed in the I/O module nest |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Type | Open Collector Transistor |
| Rated Voltage | 30 V DC |
| Output Current | Max. 100 mA per channel |
| Pulse Width Range | 0.1 to 7200 seconds |
| Pulse Resolution | 20 milliseconds |
| Current Consumption | 600 mA or less (5.0 V DC) |
| Operating Temp | -10°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 (when installed in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM CS 3000 / CENTUM VP |
| Communication Interface | Remote I/O (RIO) System |
| Software Configuration | Yokogawa System Architect Tools |
Industry Applications
-
Oil & Gas: Controls emergency shutdown and alarm systems in processing plants.
-
Power Generation: Interfaces with relays and protection systems in turbine and boiler operations.
-
Chemical and Petrochemical: Facilitates safe output control for interlocks and solenoid activation.
-
Pharmaceuticals: Manages precision-controlled actuator signals in batch and continuous processing.
-
Water Treatment: Controls output devices for flow management and system automation in utility plants.
The Yokogawa ADM51C-2 Contact Output Module is a high-performance, DCS-integrated output solution ideal for critical industrial applications. Its configurable output behavior, strong system compatibility, and high durability make it a key asset in ensuring operational continuity and system safety.
Yokogawa ADM51C-2 Contact Output Module is in stock. Please contact us for a quick quote and competitive pricing.
