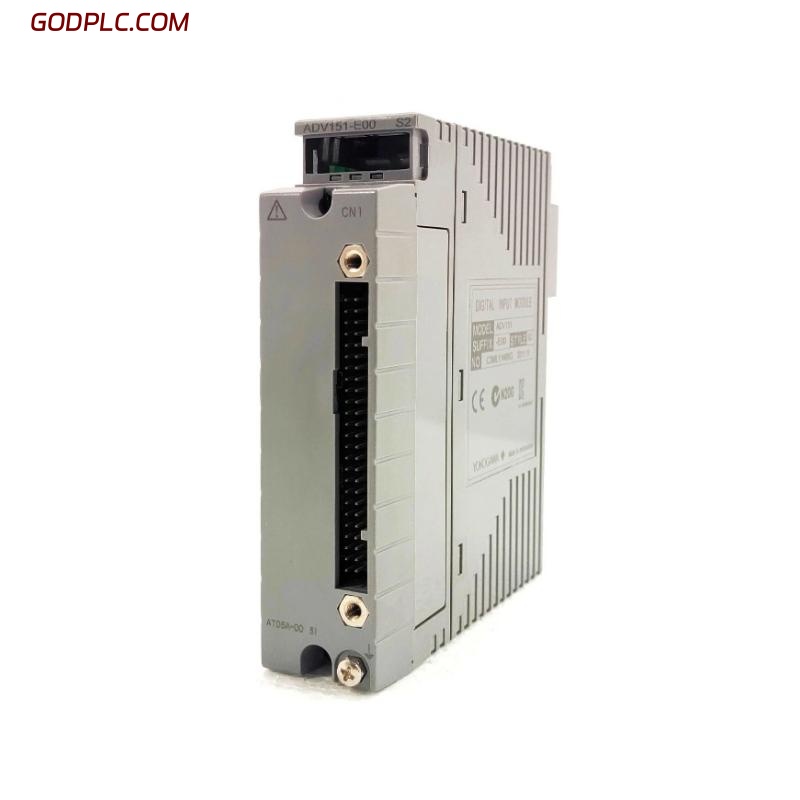

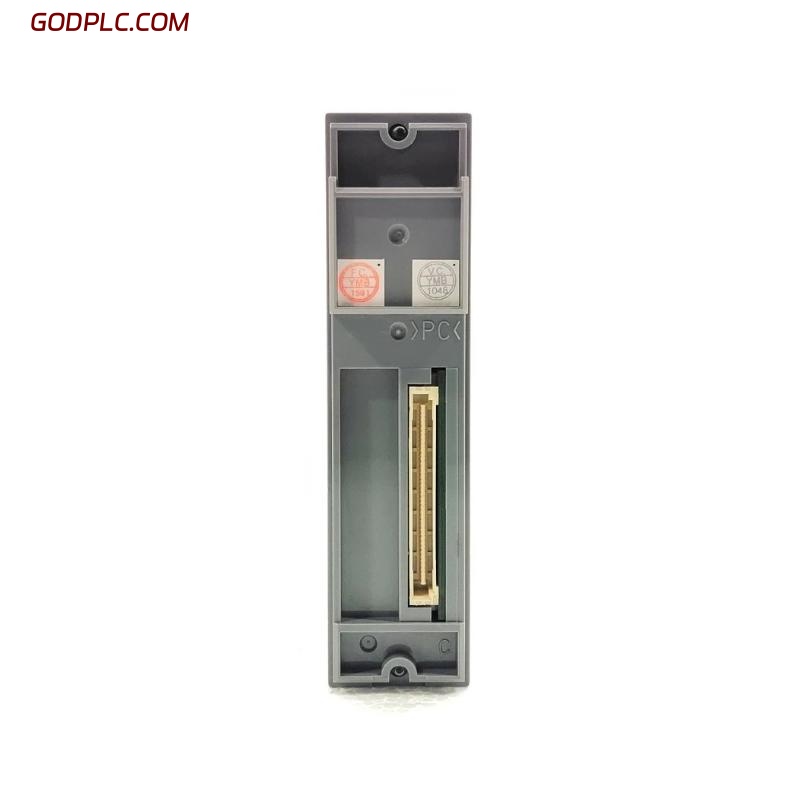

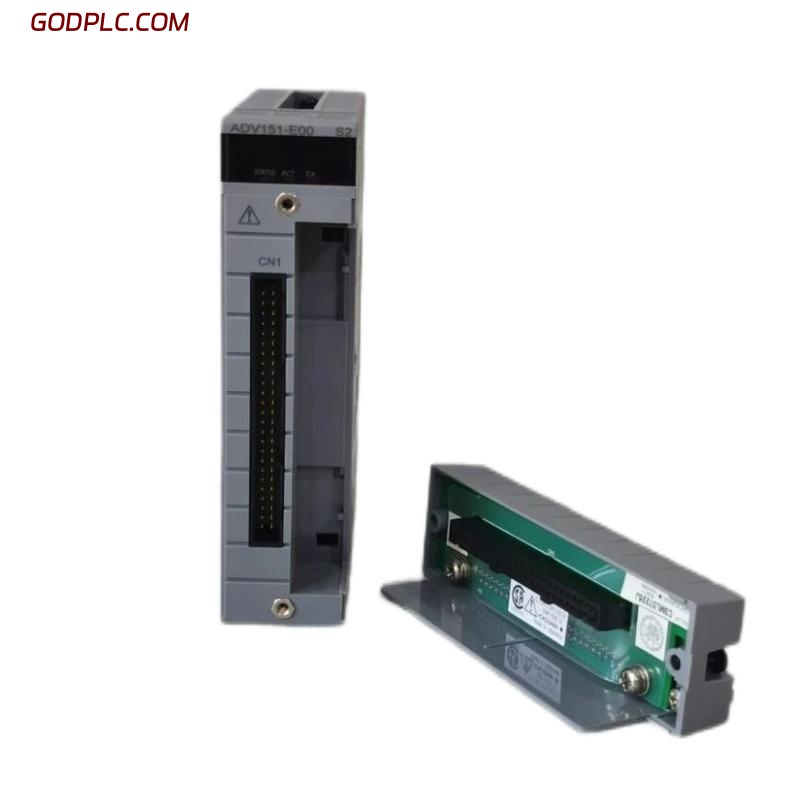

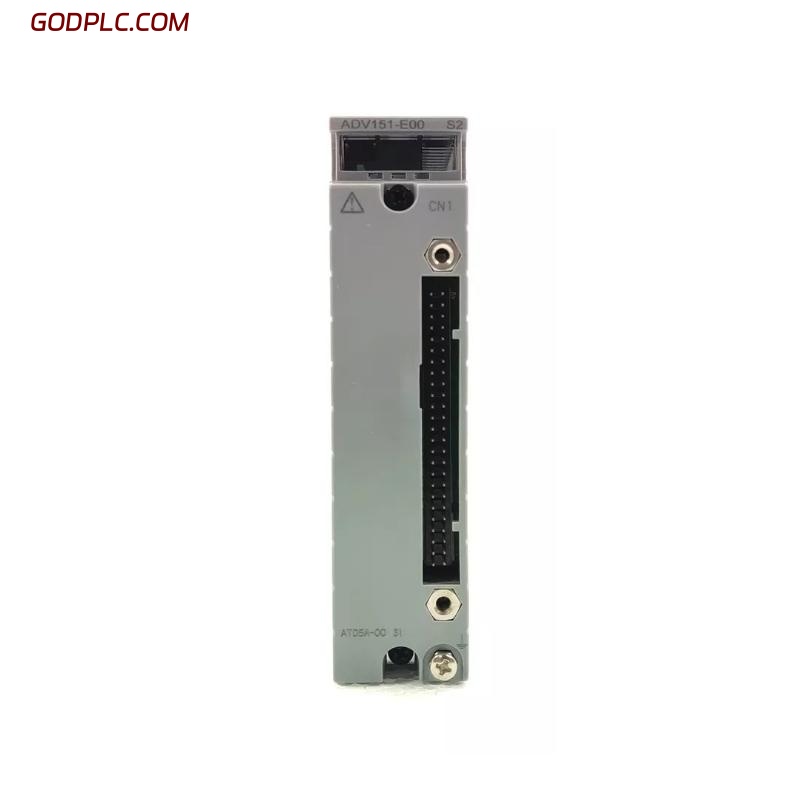

Yokogawa ADV151-E00 S2 Digital Input Module

Product Overview
The Yokogawa ADV151-E00 S2 Digital Input Module is designed for use in Yokogawa’s automation and control systems, providing high-quality digital input capabilities for industrial applications. This module is built to handle a wide range of digital signals, including status signals from various types of field devices such as switches, sensors, and relays. The ADV151-E00 S2 ensures reliable integration into your control systems, supporting high-speed and accurate monitoring of external devices. It is an ideal solution for applications requiring consistent performance in demanding industrial environments.

Key Features

• 16-Channel Digital Inputs – The module provides 16 independent digital input channels, allowing the monitoring of multiple field devices simultaneously

• Wide Input Voltage Range – Supports input voltages ranging from 24 V DC to 110 V AC, making it compatible with various industrial control systems

• High-Speed Processing – Features fast response times, ensuring real-time monitoring and control of digital field signals

• Built-in Diagnostic LEDs – Each channel is equipped with an LED indicator to provide real-time status feedback and simplify system troubleshooting

• Compact Design – The module’s space-efficient design allows for easy integration into control panels and enclosures with minimal footprint

• Enhanced Signal Integrity – Provides excellent noise immunity, ensuring stable operation even in electrically noisy environments

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Process Control – Collects and integrates digital input signals from field devices such as switches, sensors, and relays, ensuring accurate process monitoring and control

• Manufacturing Automation – Monitors machine states and production line inputs for streamlined manufacturing operations

• Safety Systems – Facilitates the integration of emergency stop signals and safety device monitoring for enhanced system safety

• Energy and Utilities – Provides digital input capabilities for monitoring power systems, including relays and protection devices

• Building Automation – Supports integration with building management systems, gathering data from field devices such as motion sensors and alarms

The Yokogawa ADV151-E00 S2 Digital Input Module is an essential component for integrating digital signals from a wide range of field devices into Yokogawa’s control systems. With its advanced features, robust performance, and compatibility with various industrial environments, it ensures reliable and high-speed digital input processing for demanding automation applications.
