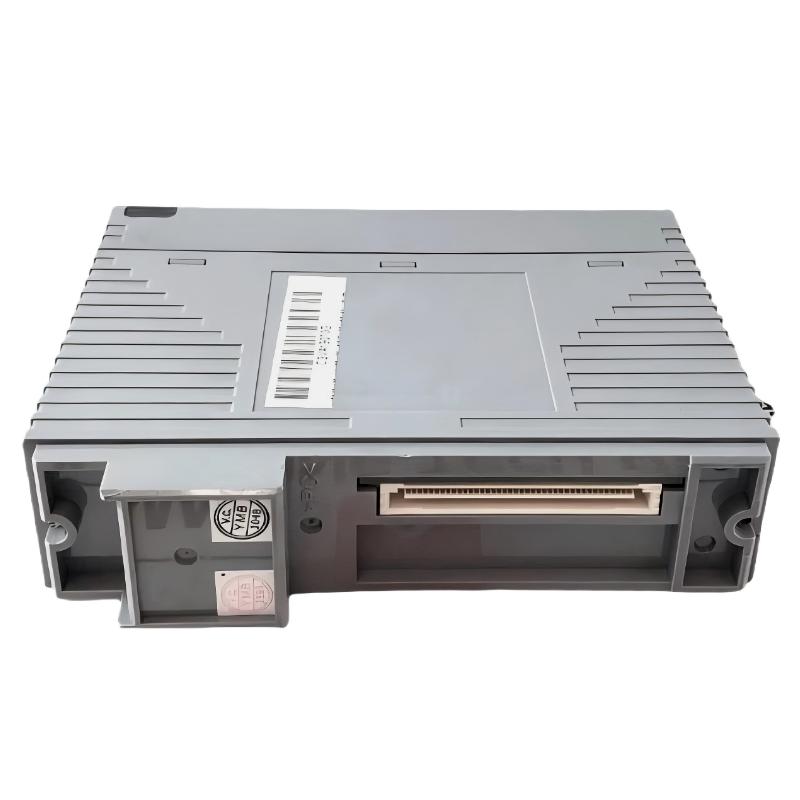

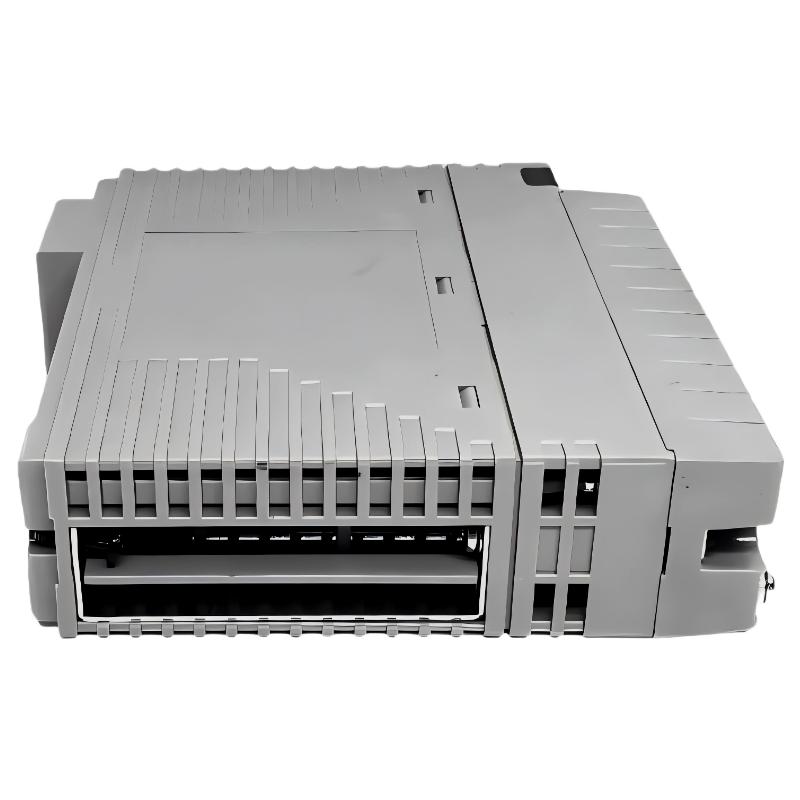

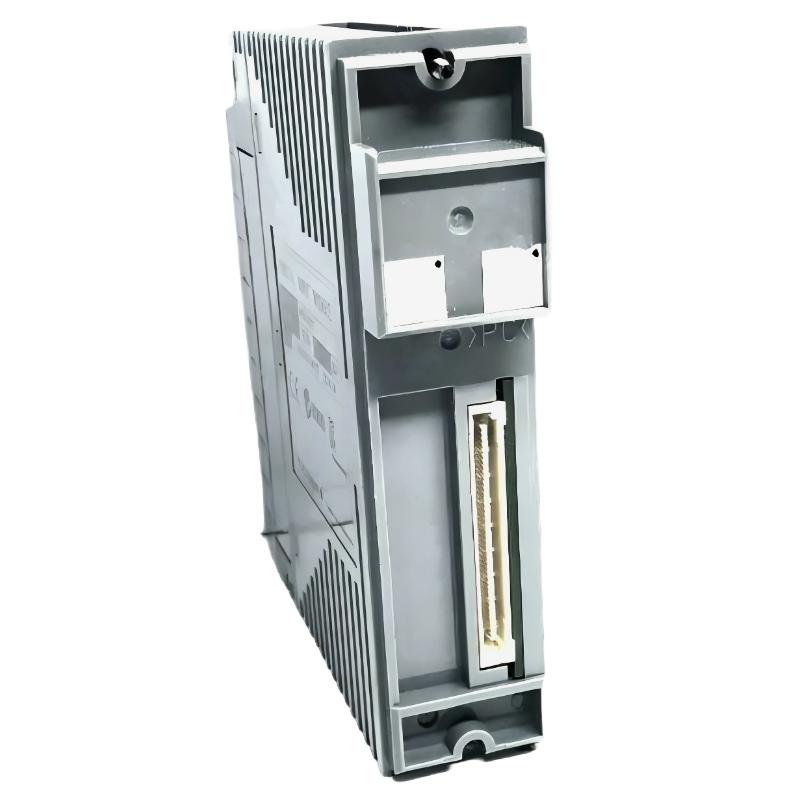

Yokogawa ADV151-E50/B5S00 Numeric Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-E50/B5S00 |
| Module Type | Digital Input Module |
| Input Channels | 32 (isolated) |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage | 18.0 – 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current | 4.1 mA ±20% per channel |
| Maximum Input Voltage | 30 V DC |
| Isolation | 2 kV AC (signal to system); 500 V AC (between commons per 16 channels) |
| Input Response Time | ≤ 8 ms |
| Pushbutton Detection | Min ON time: 20 ms; Max frequency: 25 Hz |
| System Current Consumption | Max. 500 mA @ 5 V DC |
| Interface | B5S00 base (FIO terminal adapter) |
| Terminal Type | Pressure clamp terminal |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5–95% RH (non-condensing) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1: What input types does the module support?
The ADV151-E50/B5S00 supports 24V DC sink and source digital inputs, making it compatible with a wide range of field devices. It can directly interface with relay outputs, proximity switches, or other digital sensors, ensuring reliable and real-time signal acquisition.
2: Does the module support Sequence of Events (SOE) recording?
Yes. This module includes SOE functionality, which records input state changes with high-precision timestamps. This helps track abnormal operations, alarms, or incidents for safety and process analysis purposes.
3: Are the input channels electrically isolated?
Yes. Channels are isolated from the system and from each other (per 16-channel commons), reducing electromagnetic interference and crosstalk. This ensures stable signal acquisition even in electrically noisy environments.
4: What is the maximum input signal frequency the module can handle?
In pushbutton detection mode, the module can handle signals up to 25 Hz. For higher-frequency signals, a specialized high-speed digital input module should be used to maintain accuracy.
5: What is the module’s response time?
The input response time is ≤8 ms, providing fast detection of signal changes and enabling real-time monitoring and control for most industrial automation applications.
6: Which systems is the module compatible with?
It is mainly used in Yokogawa CENTUM VP distributed control systems and FIO-compatible architectures. It mounts directly on standard bases and integrates seamlessly with control logic and fieldbus connections.
7: Does the module have status indicators or explosion-proof design?
No. The module does not have status LEDs and is not designed for explosive environments. Its focus is reliable digital input acquisition and precise SOE recording; for status indication or explosion-proof requirements, a different model should be selected.
8: Is the wiring easy to maintain?
Yes. The module uses pressure clamp terminals, which secure wiring without screws. This design ensures firm connections while simplifying maintenance and module replacement, reducing downtime in the field.
Yokogawa ADV151-E50/B5S00 Numeric Input Module is in stock. Please contact us for a quick quote and competitive pricing.
