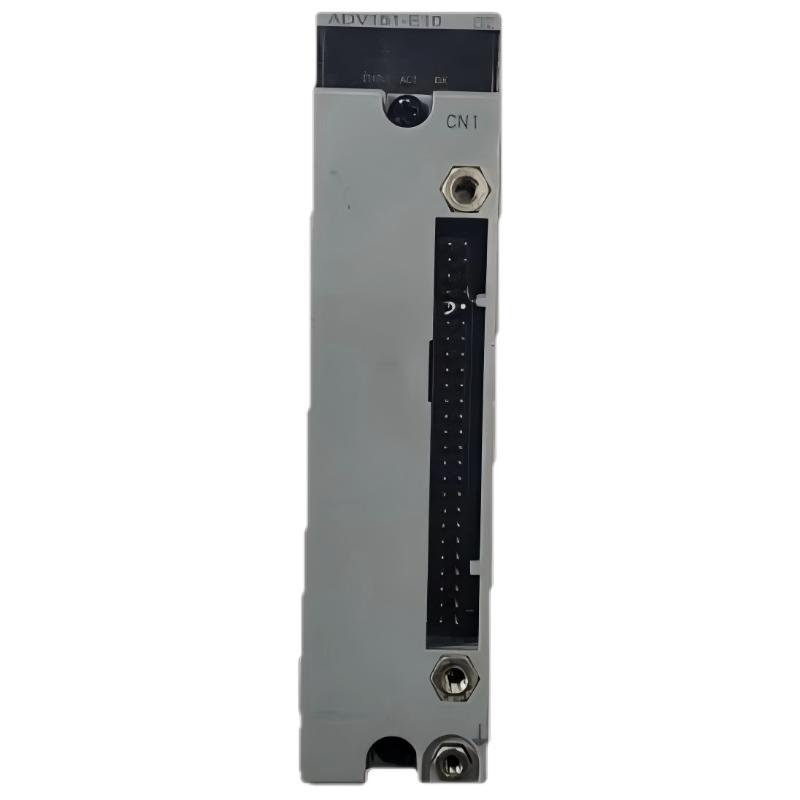

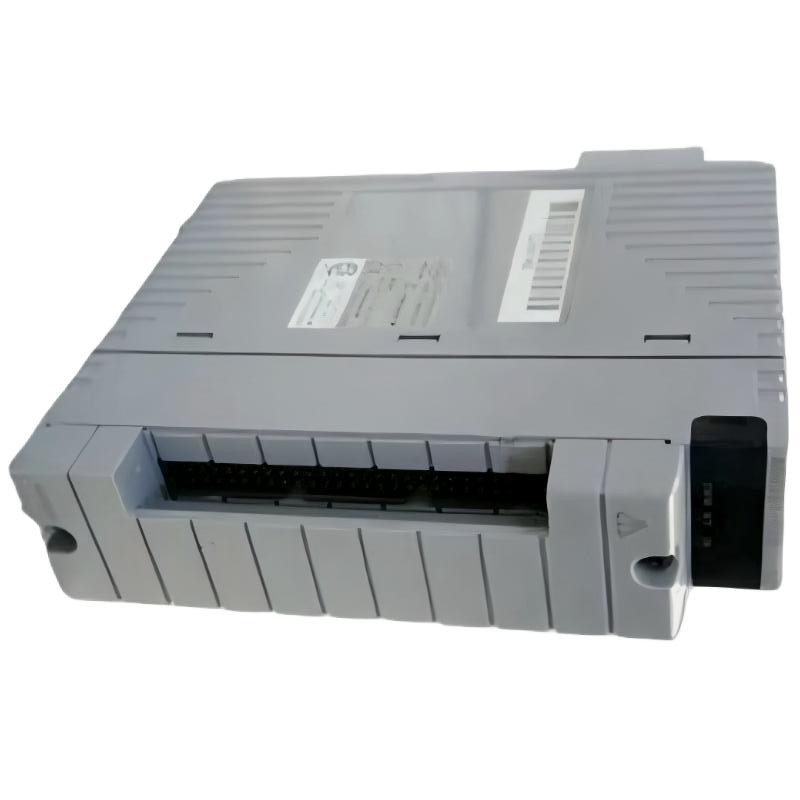

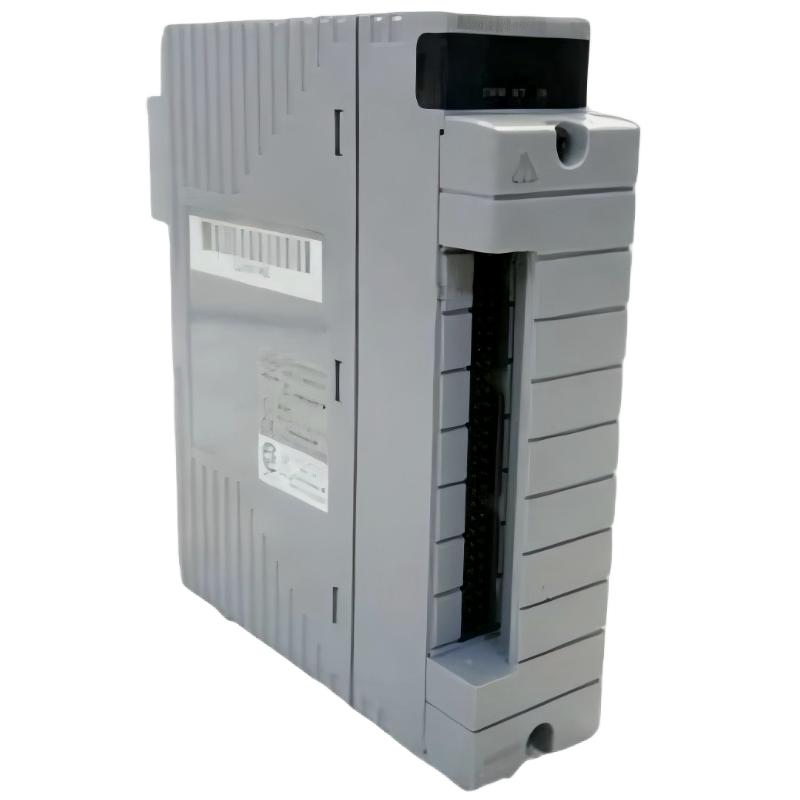

Yokogawa ADV151-E50/D5A00 Numeric Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-E50/D5A00 |
| Module Type | Digital Input Module |
| Input Channels | 32 (isolated) |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage | 18.0 – 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current | 4.1 mA ±20% per channel |
| Maximum Input Voltage | 30 V DC |
| Isolation | 2 kV AC (signal to system); 500 V AC (between commons per 16 channels) |
| Input Response Time | ≤ 8 ms |
| Pushbutton Detection | Min ON time: 20 ms; Max frequency: 25 Hz |
| System Current Consumption | Max. 500 mA @ 5 V DC |
| Interface | D5A00 base (FIO terminal adapter) |
| Terminal Type | Pressure clamp terminal |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5–95% RH (non-condensing) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
1: What input types does the module support?
The ADV151-E50/D5A00 supports 24V DC sink and source digital inputs. It can connect directly to relays, switches, or digital sensors, providing reliable and real-time signal acquisition suitable for various industrial processes.
2: Does the module support Sequence of Events (SOE) recording?
No. The D5A00 variant does not include SOE functionality. It focuses on reliable real-time digital input collection rather than timestamped event recording.
3: Are the input channels electrically isolated?
Yes. The input channels are isolated from the system and from each other (per 16-channel commons), which helps reduce interference and ensures accurate signal detection in noisy industrial environments.
4: What is the maximum input signal frequency the module can handle?
The module can handle pushbutton signals with a maximum frequency of 25 Hz, sufficient for typical switch inputs and low-frequency pulses in process automation.
5: What is the module’s response time?
The input response time is ≤8 ms, ensuring that signal changes are quickly detected and transmitted to the control system for real-time monitoring and control.
6: Which systems is the module compatible with?
It is primarily used in Yokogawa CENTUM VP distributed control systems and FIO-compatible architectures, allowing seamless integration with fieldbus and control logic systems.
7: Does the module have status indicators or explosion-proof design?
No. The module does not feature status LEDs and is not designed for explosive environments. Its design prioritizes stable digital input acquisition in standard industrial settings.
8: Is the wiring easy to maintain?
Yes. The module uses pressure clamp terminals, allowing secure connections without screws. This design simplifies installation and maintenance, reducing the time required for field operations.
Yokogawa ADV151-E50/D5A00 Numeric Input Module is in stock. Please contact us for a quick quote and competitive pricing.
