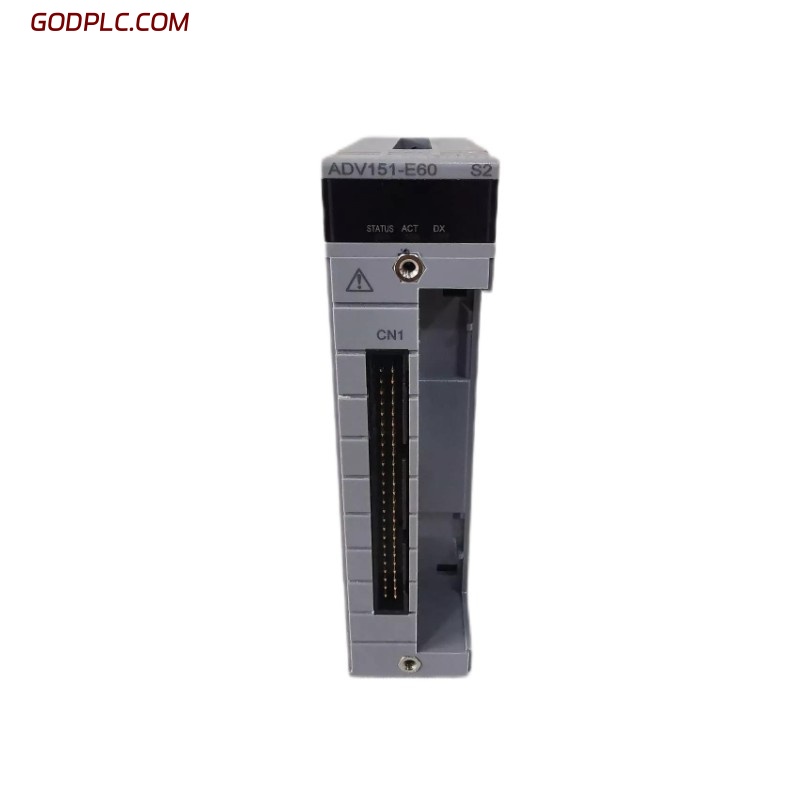

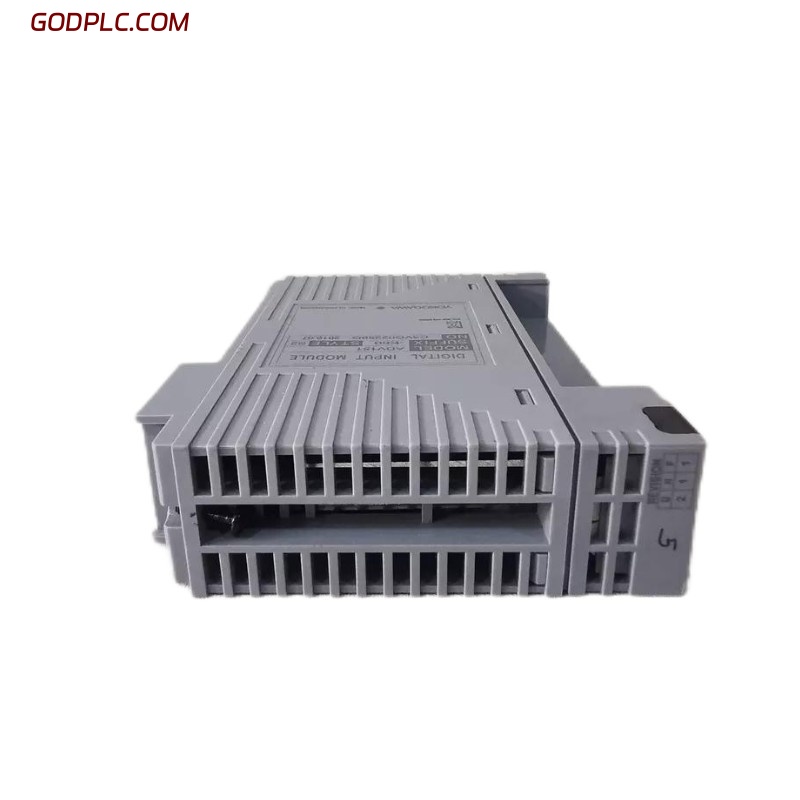

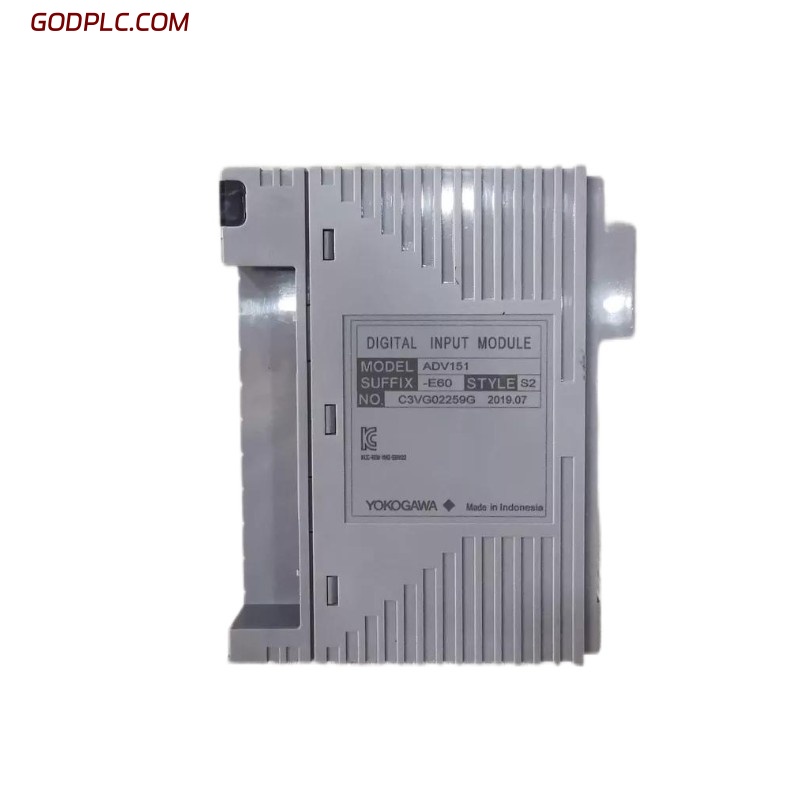

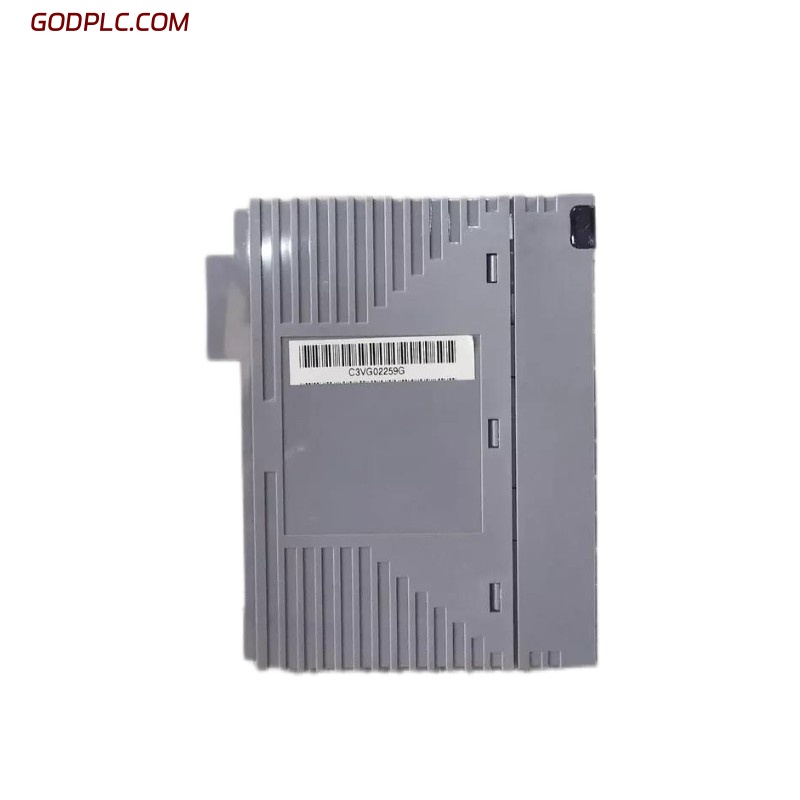

YOKOGAWA ADV151-E60 digital input module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Yokogawa ADV151-E60 is a 32-channel isolated 24 V DC digital input module designed for the Yokogawa FIO (Field Input/Output) system. It is typically used in distributed control systems (DCS) such as CENTUM CS3000 or CENTUM VP, and connects discrete ON/OFF field signals to the control network.
The suffix “E” indicates that the module supports SOE (Sequence of Events) data capture, while “6” denotes a standard version with built-in LED status indication and general-purpose electrical specifications (non-hazardous area type).
This module provides stable and noise-resistant digital signal acquisition, making it ideal for process automation, power generation, and industrial machinery control systems.
Key Features
-
32 isolated digital input channels (24 V DC).
-
Optical isolation between field input and system bus.
-
Supports both status and pushbutton (edge detection) inputs.
-
SOE (Sequence of Events) function included for time-stamped event logging.
-
Built-in LED indicators for channel and power status.
-
High-speed signal response (≤ 8 ms).
-
Compact and lightweight construction suitable for dense I/O panel layouts.
-
Compatible with Yokogawa FIO-based control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-E60 |
| Function | 32-channel isolated digital input module |
| Rated Input Voltage | 24 V DC (sink/source type) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | 4.1 mA ± 20% |
| Maximum Allowable Input Voltage | 30 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Common every 16 channels) | 500 V AC for 1 minute |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Pushbutton Input) | 20 ms |
| Maximum ON/OFF Frequency (Pushbutton Input) | 25 Hz |
| SOE Function | Supported |
| Input Type | Optically isolated DC input |
| External Connections | Pressure-clamp terminal / dedicated cable / MIL connector cable |
| Power Supply | From system I/O bus |
| Operating Temperature | −20 °C to +70 °C |
| Operating Humidity | 5 – 95% RH (non-condensing) |
| Mounting Method | Mounted on FIO baseplate |
| Dimensions (H × D × W) | 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.30 kg (300 g) |
| Status Indicators | LEDs for channel and power indication |
| Cooling Method | Natural air cooling |
| Installation Location | Inside control cabinet (indoor use) |
YOKOGAWA ADV151-E60 digital input module is in stock. Please contact us for a quick quote and competitive pricing.
