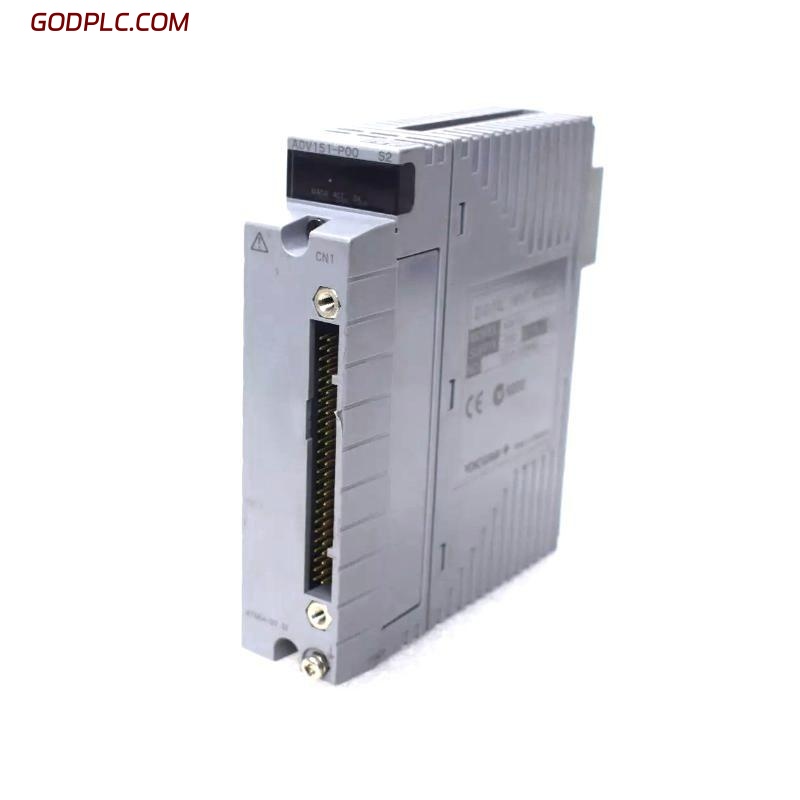

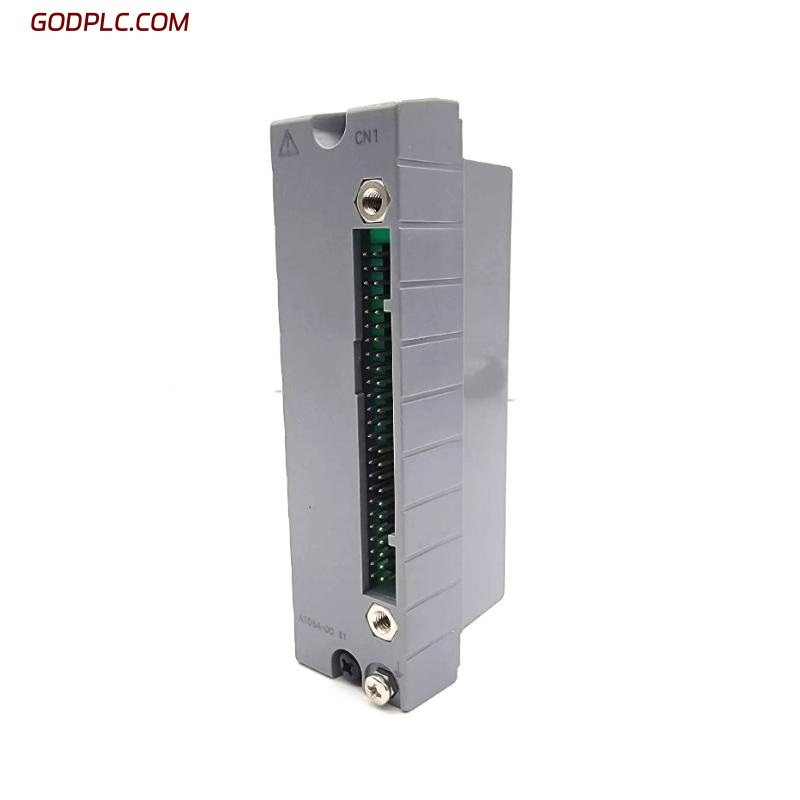

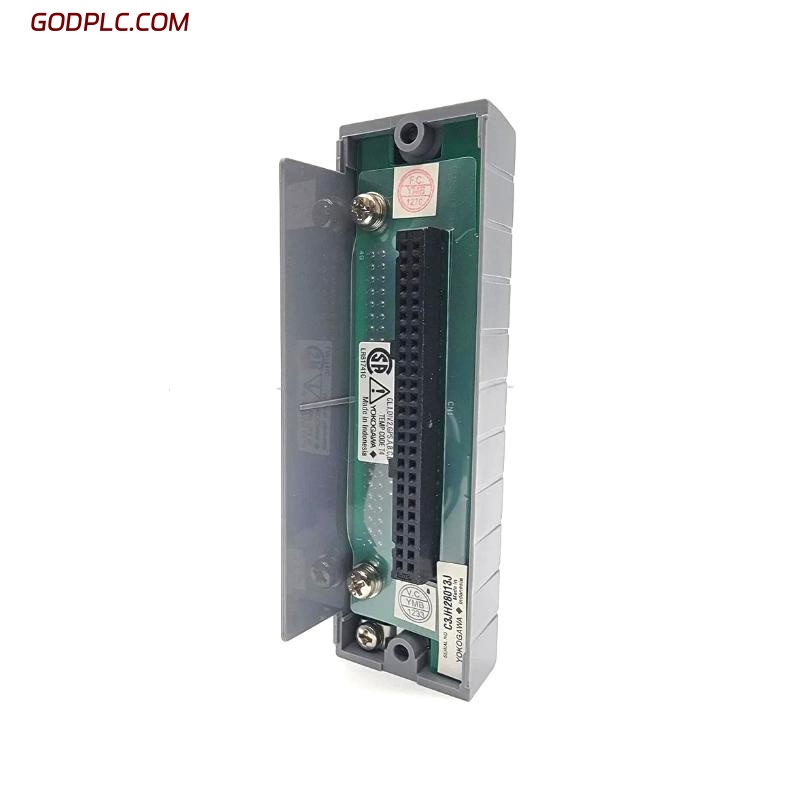

Yokogawa ADV151-P00 S2 ATD5A-00 Digital Input Module
Product Overview
The Yokogawa ADV151-P00 S2 ATD5A-00 Digital Input Module is designed for high-precision, high-speed digital signal processing in industrial automation systems. Ideal for applications requiring reliable on/off signal detection, this module offers versatility and durability in a compact form factor. It ensures seamless integration with Yokogawa’s control systems and provides robust performance across a wide range of industrial sectors, from power generation to manufacturing.
Key Features
-
High-Speed Digital Input – Provides fast and accurate on/off signal detection with minimal delay, ensuring timely control system response.
-
Compact Form Factor – Space-saving design suitable for installation in control panels with limited space.
-
High Noise Immunity – Ensures reliable operation in environments with high electromagnetic interference (EMI), making it ideal for industrial settings.
-
Wide Voltage Range – Supports a broad input voltage range, ensuring compatibility with various industrial sensors and actuators.
-
Easy Integration – Fully compatible with Yokogawa’s control systems, including CENTUM and other DCS platforms.
-
Enhanced Durability – Built to withstand industrial conditions, including fluctuations in temperature and humidity.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Type | Digital Input (Dry contact, TTL) |
| Input Voltage | 24 VDC (nominal) |
| Input Current | 5 mA per channel (maximum) |
| Number of Channels | 16 Input Channels |
| Input Voltage Range | 12 VDC to 24 VDC |
| Isolation Voltage | 500 VDC (channel to channel, channel to ground) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% to 95% RH (non-condensing) |
| Enclosure Rating | IP20 (for panel mounting) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa DCS, CENTUM, and other Yokogawa control systems |
| Connection Type | Screw terminal connections |
| Communication Protocol | Yokogawa proprietary communication protocols |
Industry Applications
-
Power Generation – Monitors digital input signals from turbines, boilers, and generators to ensure safe and efficient operation.
-
Oil & Gas – Ideal for control and monitoring of digital on/off sensors in exploration, production, and refining applications.
-
Manufacturing – Facilitates the integration of limit switches, alarms, and other on/off devices into automated manufacturing processes.
-
Chemical & Petrochemical – Used in safety-critical environments to monitor emergency shutdown systems and critical process signals.
-
Building Automation – Can interface with alarm systems, switches, and other digital input devices in intelligent building control systems.
The Yokogawa ADV151-P00 S2 ATD5A-00 Digital Input Module combines advanced signal processing, high-speed response, and robust design to meet the demands of industrial applications. Its ease of integration with Yokogawa’s control systems and its high reliability in challenging environments make it a preferred choice for critical monitoring and control systems in a wide variety of industries.
Yokogawa ADV151-P00 S2 ATD5A-00 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
