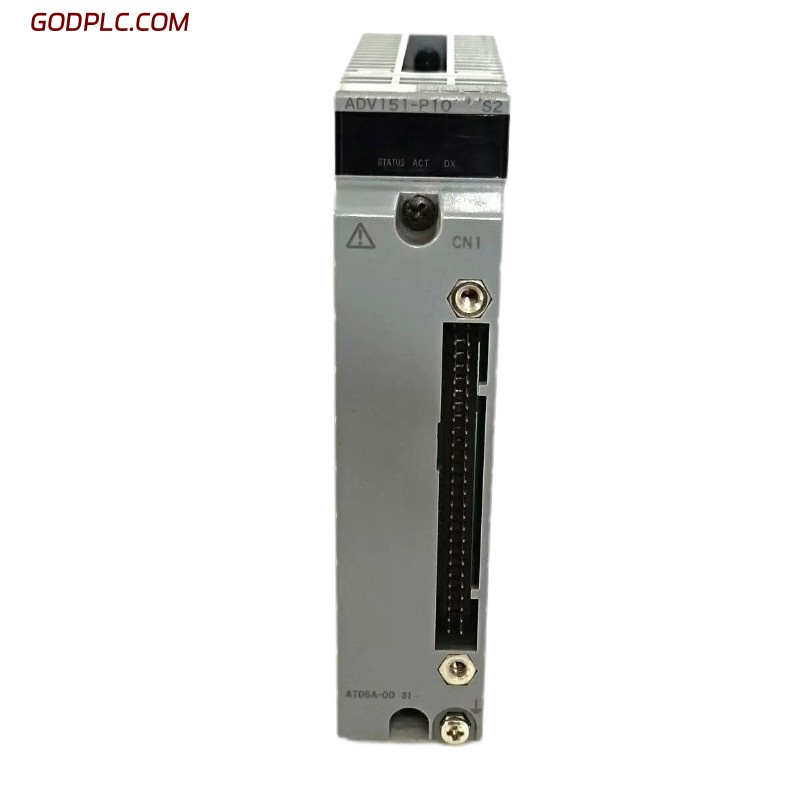

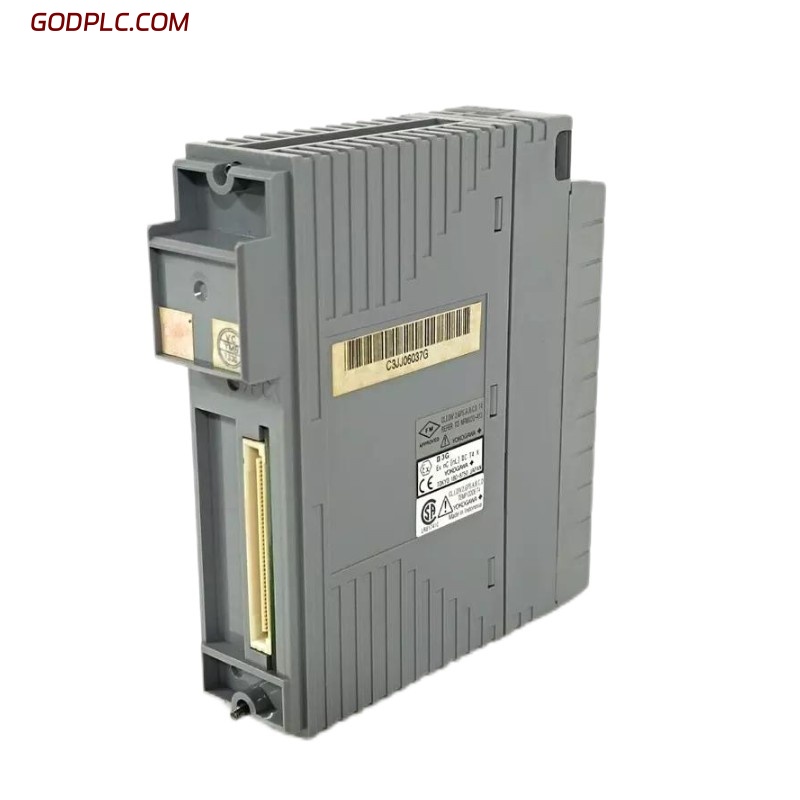

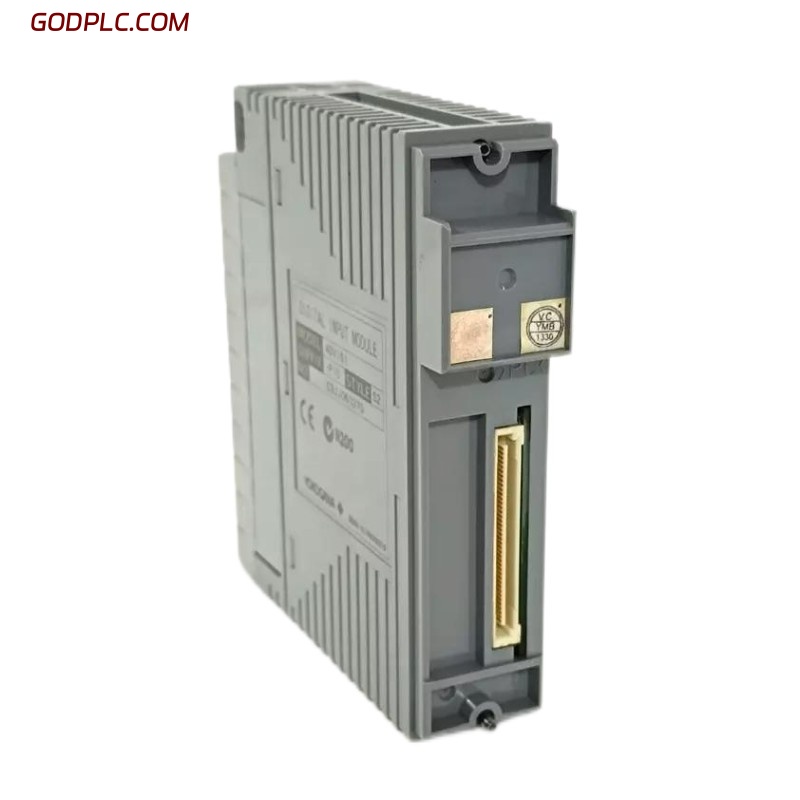

YOKOGAWA ADV151-P10 S2 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ADV151-P10 S2 is a 32-channel isolated 24 V DC digital input module designed for integration into Yokogawa’s FIO (Field Input/Output) system architecture.
Suffix breakdown:
-
“P” denotes support for pushbutton input / edge detection in addition to status input.
-
“10” indicates a specific revision or option set within the P-series.
-
“S2” designates a series/hardware revision version of the module.
This module is engineered for industrial automation and process control applications requiring high-density discrete input acquisition, event logging and robust electrical isolation.
Key Features
-
32 independent digital input channels operating at 24 V DC.
-
Supports both status input (ON/OFF) and pushbutton input (edge counting) modes.
-
Strong isolation between input side and system bus for high noise immunity.
-
Compact form factor suitable for dense panel or rack mounting.
-
Suitable for standard 24 V logic field devices in industrial control environments.
-
Lightweight module facilitating installation and maintenance in control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P10 S2 |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source type) |
| Input ON Voltage | 18 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | ~4.1 mA ±20% |
| Maximum Allowable Input Voltage | 30 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Common every 16 channels) | 500 V AC for 1 minute |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Pushbutton Input) | 20 ms |
| Maximum ON/OFF Cycle (Pushbutton Input) | 25 Hz |
| Maximum Current Consumption (5 V bus) | ~500 mA |
| External Connections | Pressure–clamp terminal / dedicated cable / MIL connector cable |
| Weight | Approx. 0.30 kg |
| Dimensions (H × D × W) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Operating Temperature Range | −20 °C to +60 °C* |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Mounting Method | Module installed on FIO baseplate / rack module inside control cabinet |
YOKOGAWA ADV151-P10 S2 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
