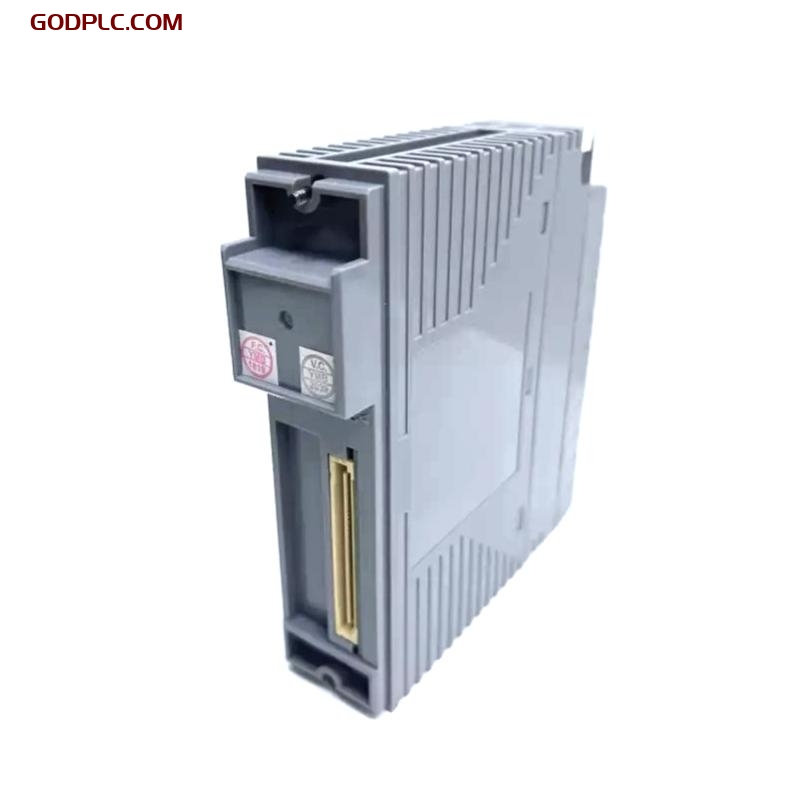

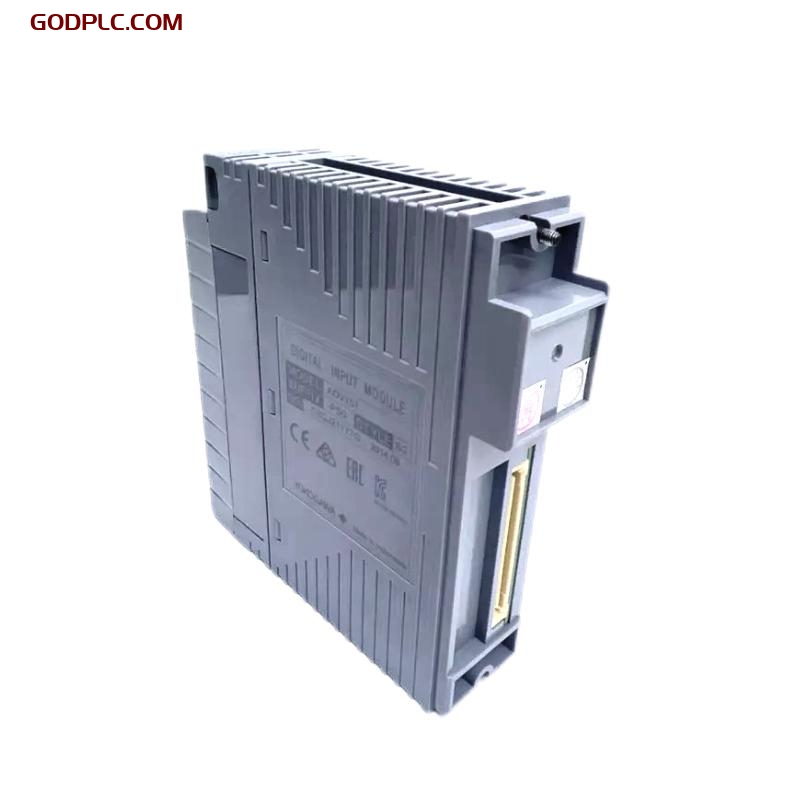

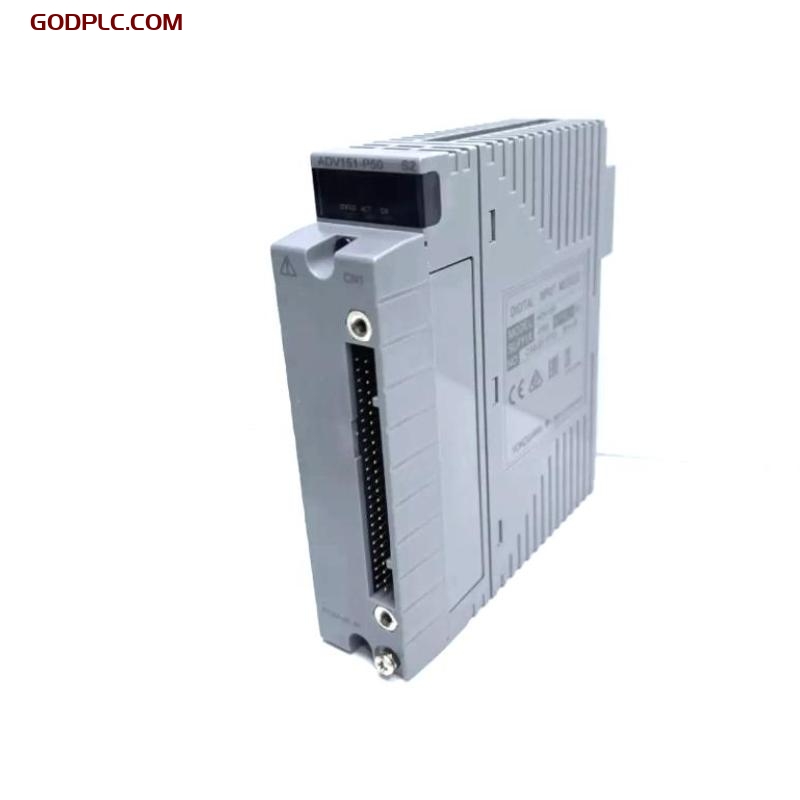

Yokogawa ADV151-P50 Digital Input Module
Product Overview
The Yokogawa ADV151-P50 is a robust and high-density digital input module designed for integration within the Yokogawa CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). This module features 16 isolated channels for 48 VDC digital input signals, offering reliable signal acquisition in demanding industrial environments. With its high input voltage compatibility and precise input status detection, the ADV151-P50 is ideal for mission-critical applications in process automation systems.
Key Features
-
16-Channel 48 VDC Digital Input – Supports 16 isolated digital inputs for high-voltage signal monitoring.
-
Channel Isolation – Each input is optically isolated, enhancing reliability and protecting against field-side transients.
-
High Signal Compatibility – Accepts 48 VDC nominal input, suitable for utilities and large industrial facilities.
-
Hot-Swappable Design – Enables module replacement without disrupting system operation.
-
Integrated Diagnostics – LED indicators and internal diagnostics simplify maintenance and troubleshooting.
-
DCS Integration – Fully compatible with Yokogawa’s FIO and Vnet/IP system architecture.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 isolated digital inputs |
| Input Voltage | 48 VDC nominal (range: 40–60 VDC) |
| Input Current | Approx. 4 mA per channel @ 48 VDC |
| Isolation | Optical isolation, channel-to-channel |
| Power Supply | Supplied via baseplate (internal bus) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Seal | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM VP, CENTUM CS 3000 |
| Mounting | Mounted in FIO base unit (N-IO or FIO) |
Industry Applications
-
Utilities and Energy – Ideal for monitoring high-voltage switchgear and breaker status.
-
Oil & Gas – Interfaces with remote panel signals and field equipment using 48 VDC systems.
-
Chemical & Petrochemical – Used for capturing control panel and ESD input states.
-
Power Generation – Acquires high-voltage discrete input signals from turbine and boiler systems.
-
Metals and Mining – Integrates with remote control stations in rugged industrial environments.
The Yokogawa ADV151-P50 Digital Input Module is built for reliability and flexibility in environments where 48 VDC discrete input monitoring is required. Its robust isolation, diagnostic capabilities, and seamless DCS integration make it a critical component for modern process control systems.
Yokogawa ADV151-P50 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
