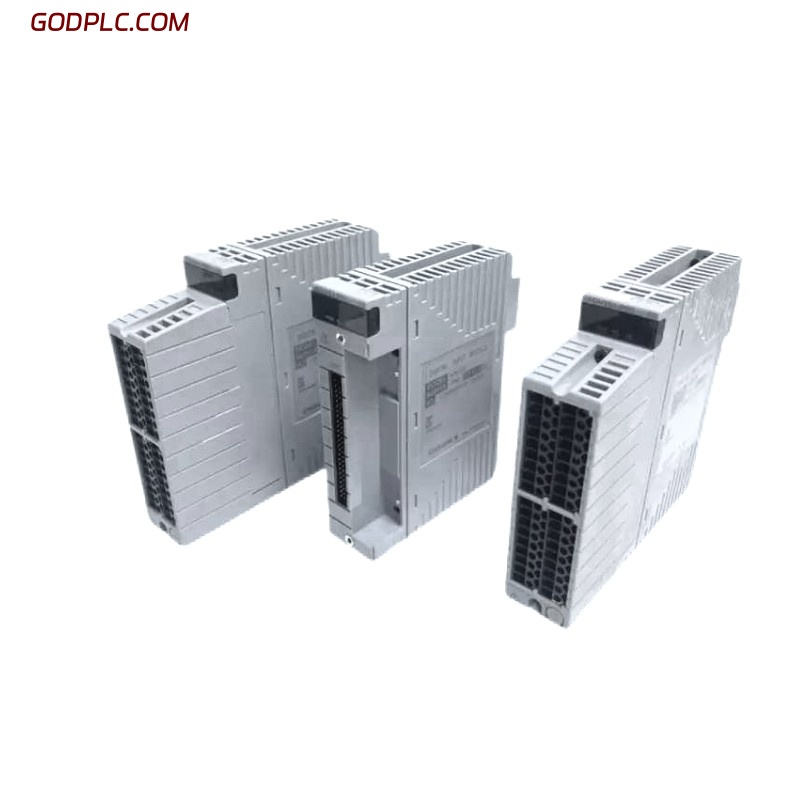

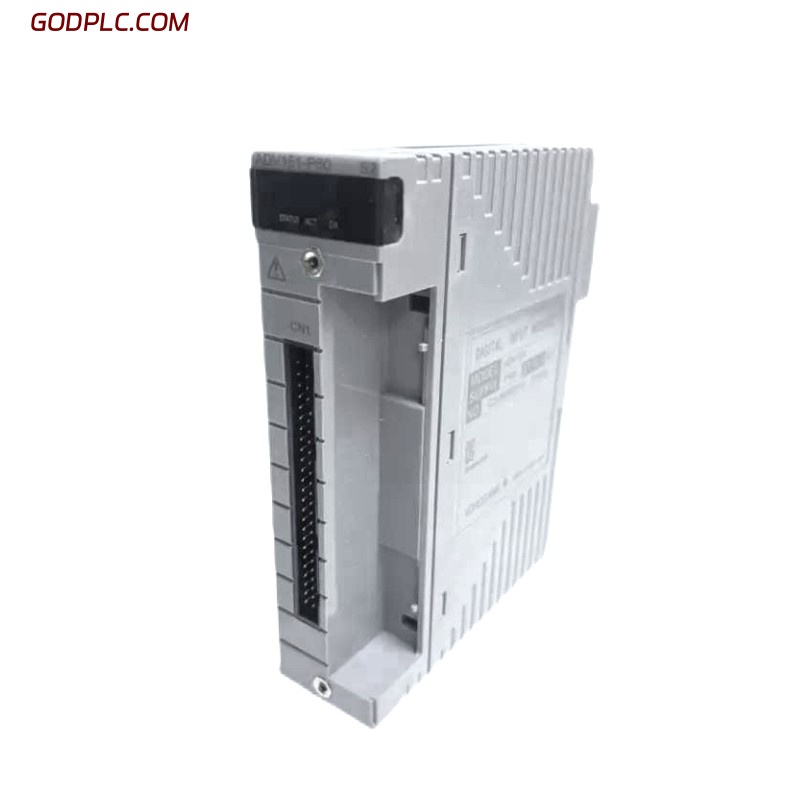

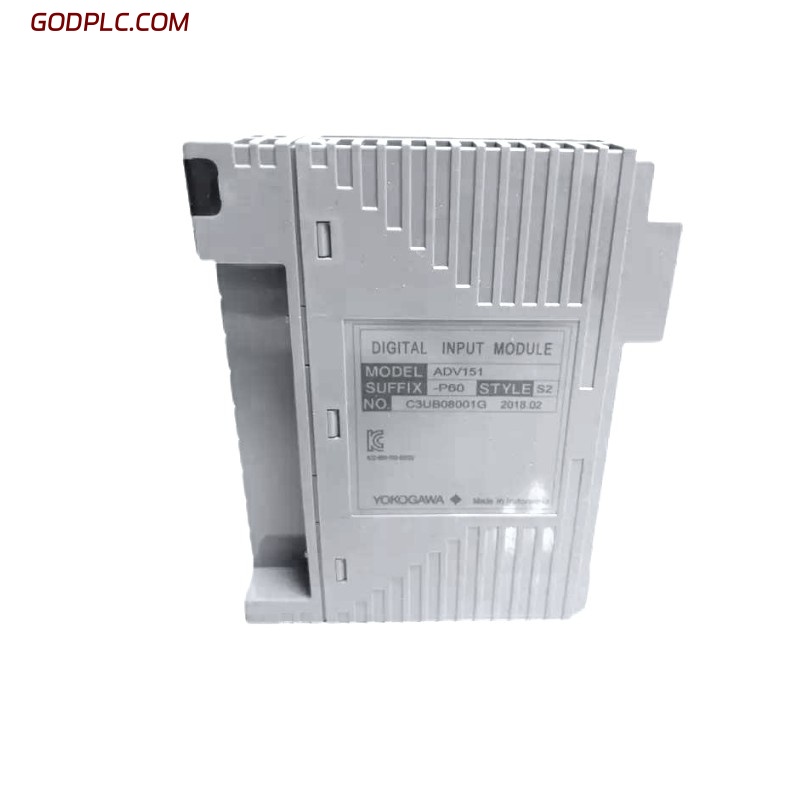

YOKOGAWA ADV151-P60/B5S00 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ADV151-P60/B5S00 is a 32-channel isolated digital input module designed for use in Yokogawa’s FIO (Field Input/Output) system architecture.
-
The suffix “P” indicates the module supports push-button input (edge detection) functionality in addition to standard status input.
-
The suffix “60” designates a version with status display (LED indicators) as part of the P-series.
-
The option code “/B5S00” identifies the module wiring variant using a pressure-clamp terminal block (Model ATB5S-00) for the digital input interface.
This module is intended for industrial automation and process control systems that require high-density 24 V DC discrete input capture, push-button edge detection, and compact, high-integrity module installation.
Key Features
-
32 separate digital input channels for 24 V DC signals.
-
Supports both status input (ON/OFF) and push-button input (edge detection) modes.
-
Each channel is optically (or galvanically) isolated from the system bus for strong noise immunity and safety.
-
Included status display (LED indication) simplifies diagnostics and maintenance.
-
Pressure-clamp terminal block wiring (B5S00 variant) enables secure and convenient field wiring.
-
Compact module footprint suitable for high-density I/O rack or panel installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P60/B5S00 |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink or source type) |
| Input ON Voltage | 18 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | Approx. 4.1 mA ±20 % |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Common every 16 ch) | 500 V AC for 1 minute |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Push-button) | 20 ms |
| Maximum ON/OFF Cycle (Push-button) | 25 Hz |
| External Connection Type | Pressure-clamp terminal block (B5S00 variant) |
| Dimensions (H × D × W) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.30 kg |
| Operating Temperature Range | -20 °C to +70 °C (typical for the module family) |
| Operating Humidity | 5 % to 95 % RH (non-condensing) |
| Mounting Method | Mounted on FIO baseplate / rack within control cabinet |
YOKOGAWA ADV151-P60/B5S00 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
