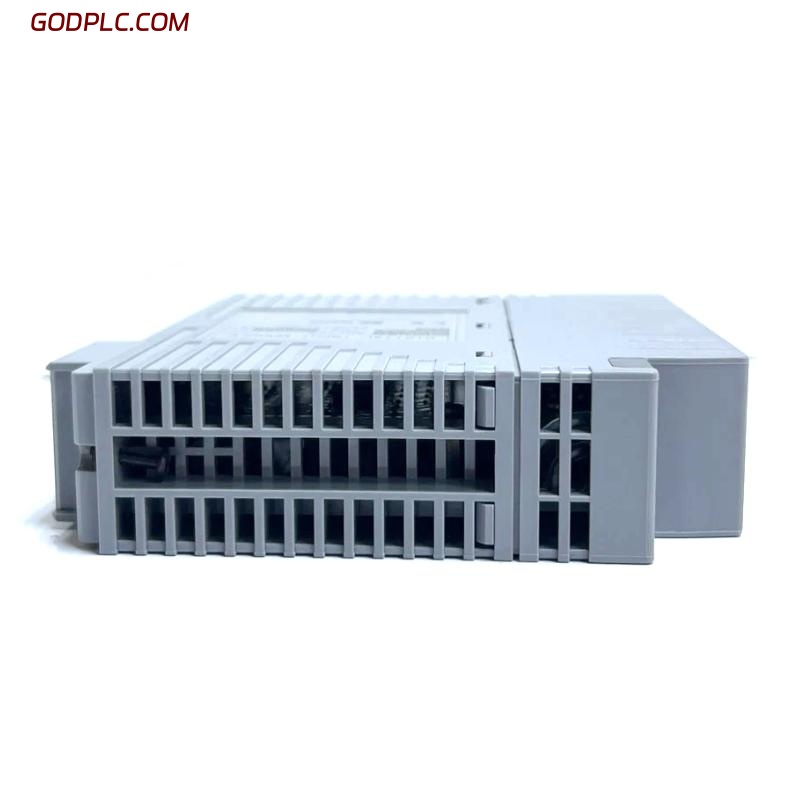

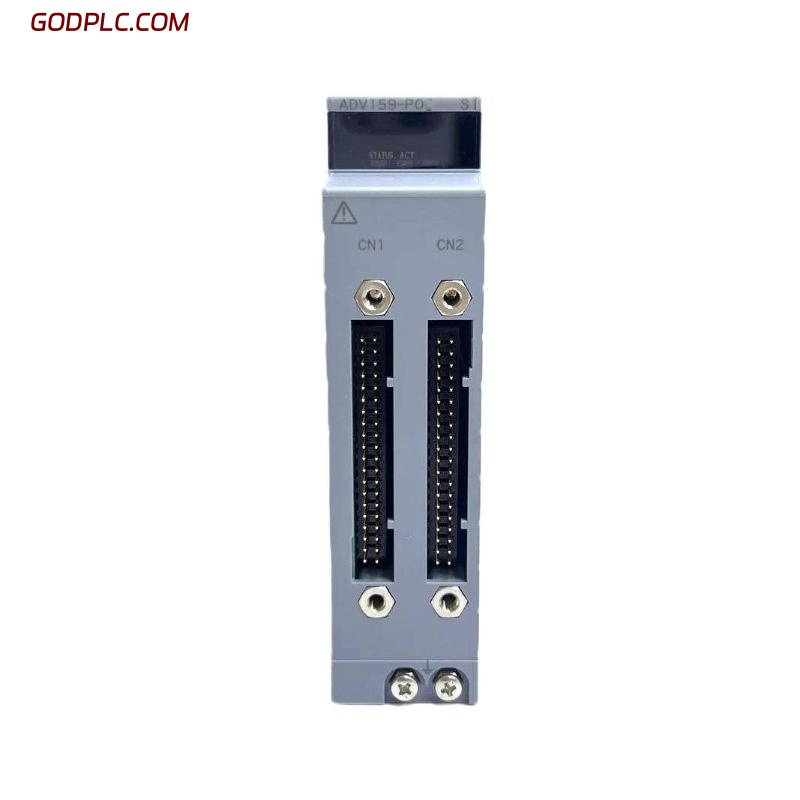

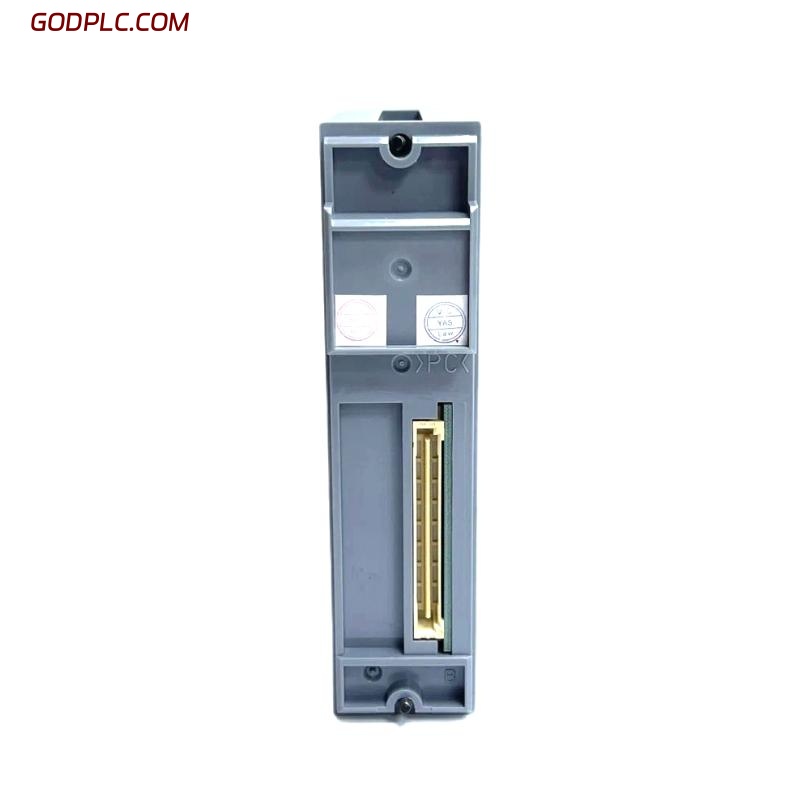

YOKOGAWA ADV159-P01 S1 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Yokogawa ADV159-P01 S1 is a 32-channel isolated digital input module designed for use in ST3-type distributed control systems. It supports both contact and voltage input types and offers enhanced edge-detection capability for push-button applications. With its high noise immunity and robust isolation, it is ideal for reliable discrete signal acquisition in industrial automation systems.
The suffix “P” indicates push-button input capability, “01” represents the G3 environmental specification option (extended temperature and humidity tolerance), and “S1” denotes the series revision or supply variant.
Key Features
-
32 isolated digital input channels
-
Supports both contact input and voltage input types
-
Edge-detection (push-button) input capability
-
High-speed input response and reliable noise isolation
-
Compact design suitable for dense cabinet installation
-
Fully compatible with Yokogawa ST3 I/O baseplates and systems
-
Suitable for high-reliability process and factory automation applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV159-P01 S1 |
| Number of Channels | 32 isolated input channels |
| Input Signal Types | Contact input and voltage input |
| Contact Input – OFF Condition | ≥ 100 kΩ |
| Contact Input – ON Condition | ≤ 200 Ω |
| Minimum Current (Contact Shorted) | ≥ 1.25 mA |
| Voltage Input – OFF Range | 4.5 V to 25 V DC |
| Voltage Input – ON Condition | ±1 V DC threshold, ≤ 200 Ω |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Push-button Input) | ≈ 20 ms |
| Maximum ON/OFF Cycle (Push-button Input) | ≈ 25 Hz |
| Rated Input Voltage | 24 V DC (sink/source type) |
| Maximum Allowable Input Voltage | 30 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Common for Each 16 Channels) | 500 V AC for 1 minute |
| Power Supply Voltage | 5 V DC |
| Power Consumption | Approx. 330 mA |
| Dimensions (H × D × W) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.40 kg |
| Operating Temperature Range | −20 °C to +70 °C (G3 environmental standard) |
| Operating Humidity Range | 5 % to 95 % RH (non-condensing) |
| Mounting Method | Mounted on ST3-compatible baseplate or I/O rack |
YOKOGAWA ADV159-P01 S1 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
