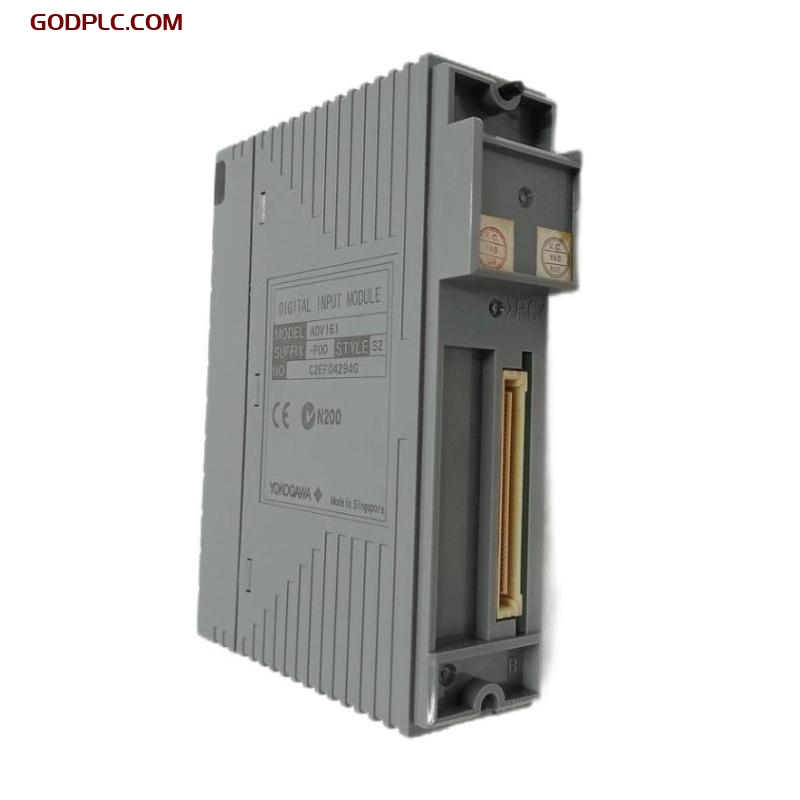

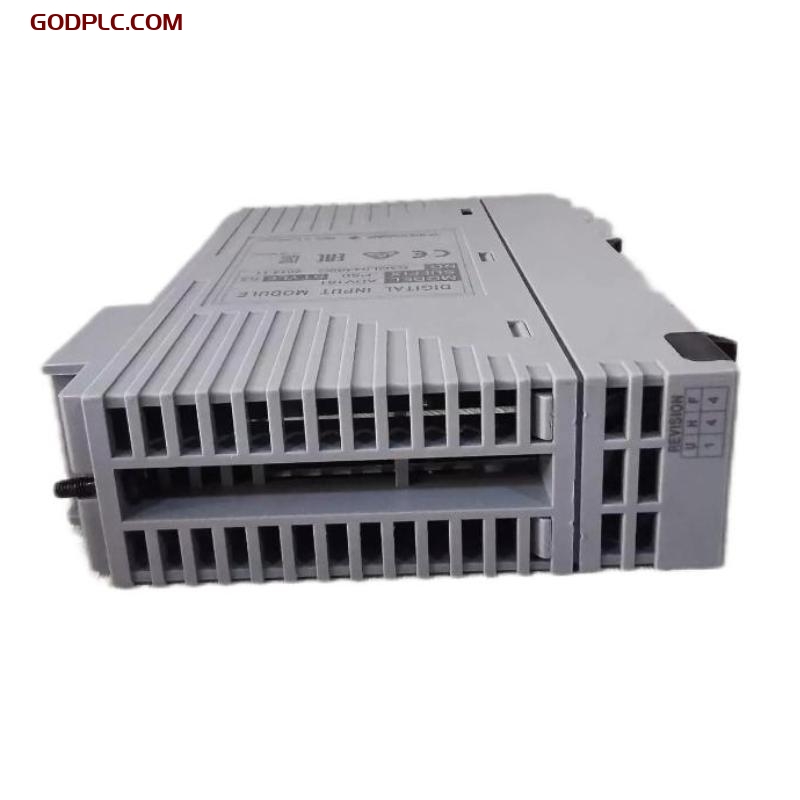

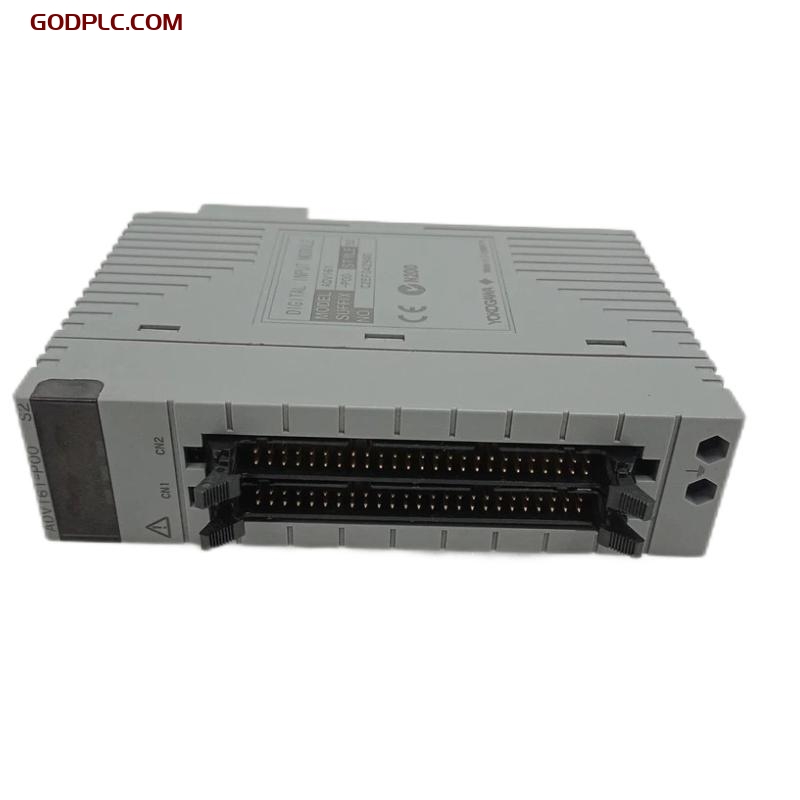

Yokogawa ADV161 Digital Input Module
Product Overview
The Yokogawa ADV161 Digital Input Module is a reliable 16-channel input module designed for use in Yokogawa’s CENTUM VP and CS 3000 distributed control systems (DCS). This module provides real-time acquisition of discrete signals from various field devices such as push buttons, limit switches, and relays, and transfers them securely to the DCS for monitoring and control.
With robust electrical isolation, fast response time, and fault-tolerant design, the ADV161 is well-suited for use in industrial automation, safety systems, and mission-critical applications. It integrates seamlessly with Yokogawa’s I/O subsystems, offering flexible installation and high signal accuracy.
Key Features
-
16-Channel Digital Input: Supports monitoring of up to 16 discrete signals
-
Fast Input Response: Designed for time-sensitive operations with quick signal acquisition
-
Electrical Isolation: Optical isolation between channels for enhanced safety and noise reduction
-
DIN Rail or Base Mounting: Supports flexible installation within I/O cabinets
-
Real-Time Monitoring: Provides reliable state feedback to control logic
-
Hot-Swappable: Can be replaced during system operation without shutdown
-
Compatible with CENTUM VP/CS 3000: Fully integrates with Yokogawa’s control platforms
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 119.9 x 32.8mm |
| Weight | 0.3 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model Number | ADV161 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Digital Input Module |
| Number of Channels | 16 Channels |
| Mounting Method | Mounted on N-IO or dedicated base |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC (nominal) |
| Input Voltage Range | 18–30 V DC |
| Input Type | Sink Type |
| Input Impedance | Approx. 4.7 kΩ |
| Response Time | 1 ms |
| Isolation | Optical isolation, channel-to-channel |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
| Power Supply | Supplied via base unit |
Industry Applications
-
Manufacturing Plants: Captures operator and machine input signals for status monitoring
-
Power Utilities: Monitors breaker states, switch positions, and alarm signals
-
Chemical and Petrochemical: Interfaces with interlocks and alarms for process safety
-
Oil & Gas: Used in onshore and offshore platforms for equipment state monitoring
-
Pharmaceutical Industry: Supports control systems with validated digital input capture
-
Water and Wastewater: Monitors digital feedback from pumps, valves, and float switches
The Yokogawa ADV161 Digital Input Module delivers dependable and accurate signal acquisition for critical industrial automation tasks. Its compact design, isolation capability, and system compatibility make it a valuable component for building efficient and reliable control architectures.
Yokogawa ADV161 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
