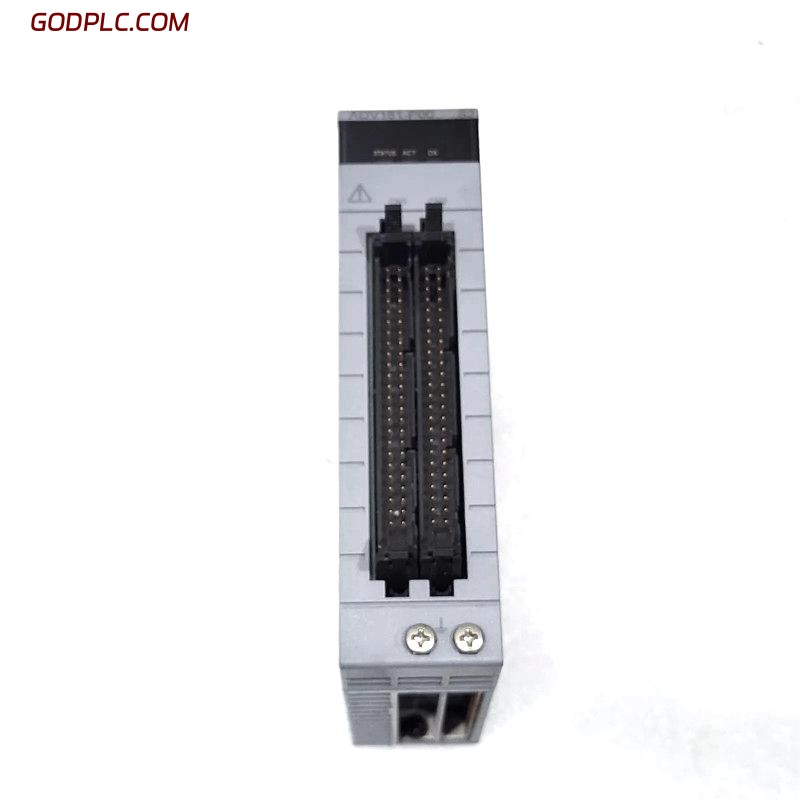

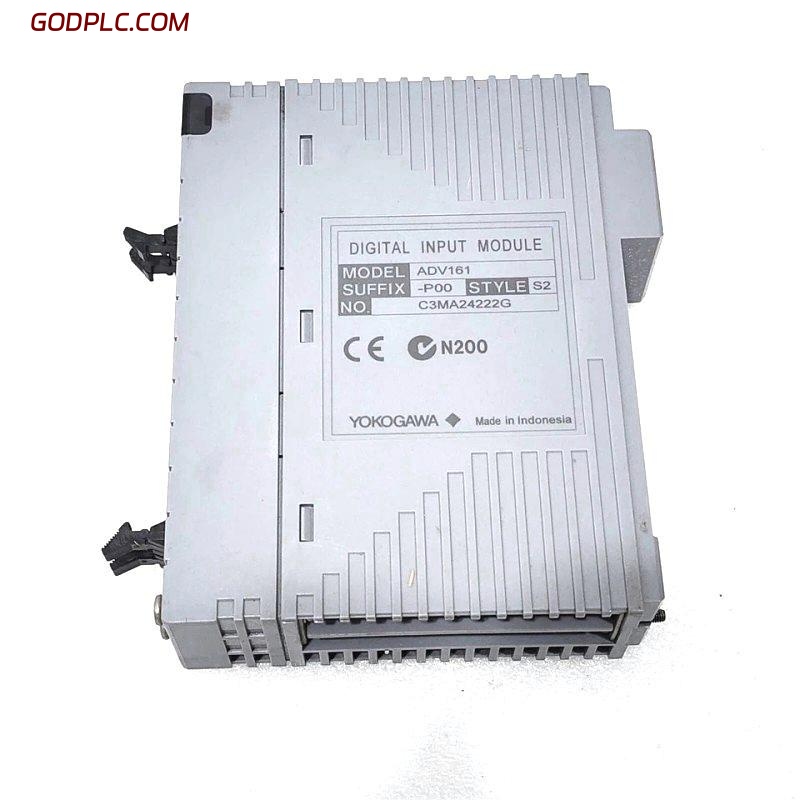

YOKOGAWA ADV161-P00 S2 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ADV161-P00 S2 is a 64-channel isolated 24 V DC digital input module designed for Yokogawa’s FIO (Field Input/Output) system architecture.
-
The model prefix “ADV161” indicates the 64-channel variant in Yokogawa’s digital input range.
-
The suffix “P” signifies that it supports pushbutton input (edge detection) functionality, in addition to normal status input.
-
The code “00” indicates the basic zero-feature version (no display, no explosion-protection).
-
The series suffix “S2” is a hardware/revision designation.
This module is suitable for industrial automation or process-control systems requiring high-channel-count discrete input acquisition with strong isolation and edge-detection capability.
Key Features
-
64 individual optically isolated digital input channels at 24 V DC.
-
Supports both status input (ON/OFF) and pushbutton input (edge detection) modes.
-
High noise immunity via channel isolation and system-bus separation.
-
Compact design for dense rack or panel mounting.
-
Designed for use in high-channel-count control systems and I/O installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV161-P00 S2 |
| Number of Input Channels | 64 |
| Rated Input Voltage | 24 V DC (sink or source type) |
| Input ON Voltage | 20 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | 2.5 mA ± 20 % |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Isolation Voltage (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Voltage (Between commons) | 500 V AC for 1 minute (common every 16 channels) |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Pushbutton) | 20 ms |
| Maximum ON/OFF Cycle (Pushbutton) | 25 Hz |
| Maximum Current Consumption (5 V bus) | 550 mA |
| Weight | Approx. 0.30 kg |
| Dimensions (H × D × W) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Operating Temperature Range | -20 °C to +70 °C (depending on revision) |
| Operating Humidity | 5 % to 95 % RH (non-condensing) |
| Mounting Method | Module mounted on FIO baseplate or rack inside control cabinet |
YOKOGAWA ADV161-P00 S2 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
