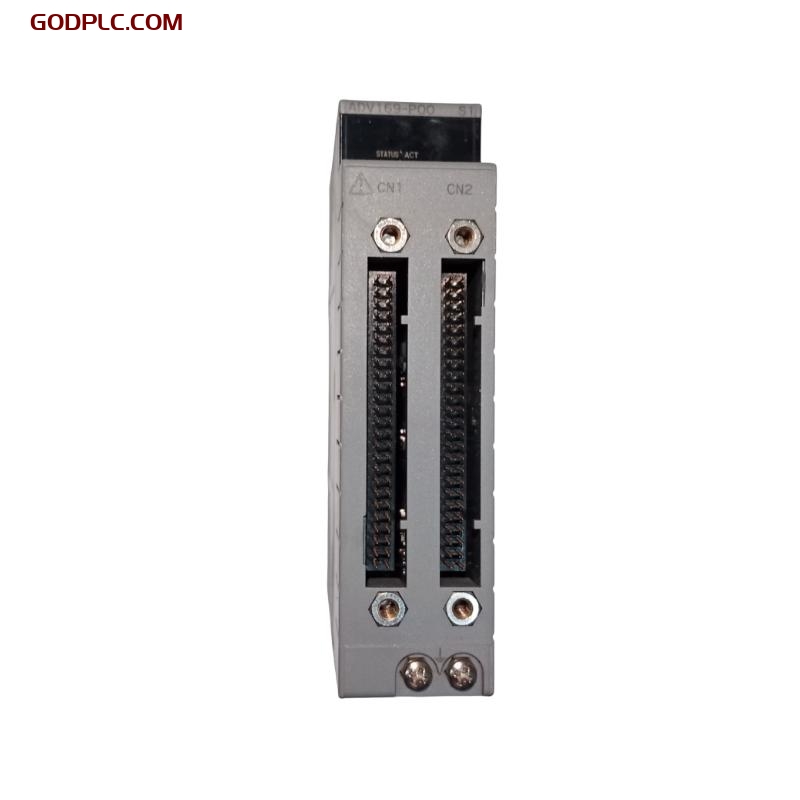

Yokogawa ADV169 Digital Input Module – Detailed Product Information
Product Overview
The Yokogawa ADV169 is a high-performance digital input module designed for industrial automation and control systems. It is a part of Yokogawa’s renowned ADV series, offering reliable and efficient input signal processing for critical applications. This module is specifically designed to handle digital input signals with high precision, ensuring accurate data acquisition in complex industrial environments.
The ADV169 module is widely used in various industries, including power generation, chemical processing, oil and gas, and manufacturing automation. It features a compact form factor, robust design, and excellent electromagnetic compatibility (EMC), making it suitable for use in harsh industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV169 |
| Product Type | Digital Input Module |
| Number of Channels | 16 |
| Input Signal Type | Digital (Dry Contact/Wet Contact) |
| Input Voltage | 24V DC (nominal) |
| Input Current | ≤10mA per channel |
| Isolation | Optical isolation between input channels and system |
| Response Time | ≤5ms |
| Power Consumption | ≤3W |
| Diagnostic Function | Self-diagnosis and status monitoring |
| Connector Type | Screw terminal block |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Vibration Resistance | 5 to 500 Hz, 2G |
| Shock Resistance | 10G |
| Compliance Standards | IEC 61131-2, CE, RoHS |
| Mounting Method | Rack-mounted |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
Product Advantages
-
High Reliability – The ADV169 module is designed for long-term operation in industrial environments with minimal maintenance requirements.
-
Optical Isolation – Ensures strong protection against voltage surges, minimizing the risk of damage from external electrical noise.
-
Fast Response Time – Quick signal processing enhances real-time monitoring and control accuracy.
-
Wide Operating Range – Supports a broad temperature and humidity range, making it suitable for various industrial applications.
-
Compact & Lightweight – Its small footprint allows for easy integration into existing control systems.
-
Self-Diagnostic Function – Built-in status monitoring helps in predictive maintenance and fault detection.
-
Compatibility – Seamless integration with Yokogawa’s control systems and other industry-standard platforms.
Applications
-
Power Plants – Used in distributed control systems (DCS) to monitor and manage power generation processes.
-
Oil & Gas – Provides reliable signal acquisition for pipeline control and safety systems.
-
Chemical & Petrochemical – Ensures accurate monitoring of process parameters in refineries and chemical plants.
-
Water Treatment – Helps in monitoring pumps, valves, and other control elements in wastewater treatment facilities.
-
Manufacturing Automation – Facilitates real-time monitoring in PLC-based production lines and robotic control.
Recommended Related Models
| Model | Description |
|---|---|
| ADV161 | 16-channel digital input module |
| ADV161-P00 | Digital input module with enhanced performance |
| ADV161-P50 | Advanced digital input module with improved isolation |
| ADV151 | 8-channel digital input module |
| ADV551 | Digital output module, 16 channels |
| ADV561 | Digital output module, high-speed switching |
| ADV859 | High-density digital input/output module |
| ADV569 | Digital input module with high immunity to noise |
| AAB841 | Analog input/output module for hybrid control applications |
| AAI135 | Analog input module with high-precision signal processing |
Yokogawa ADV169 Digital Input Module One-year warranty is in stock. Please contact us for a quick quote and competitive pricing.
