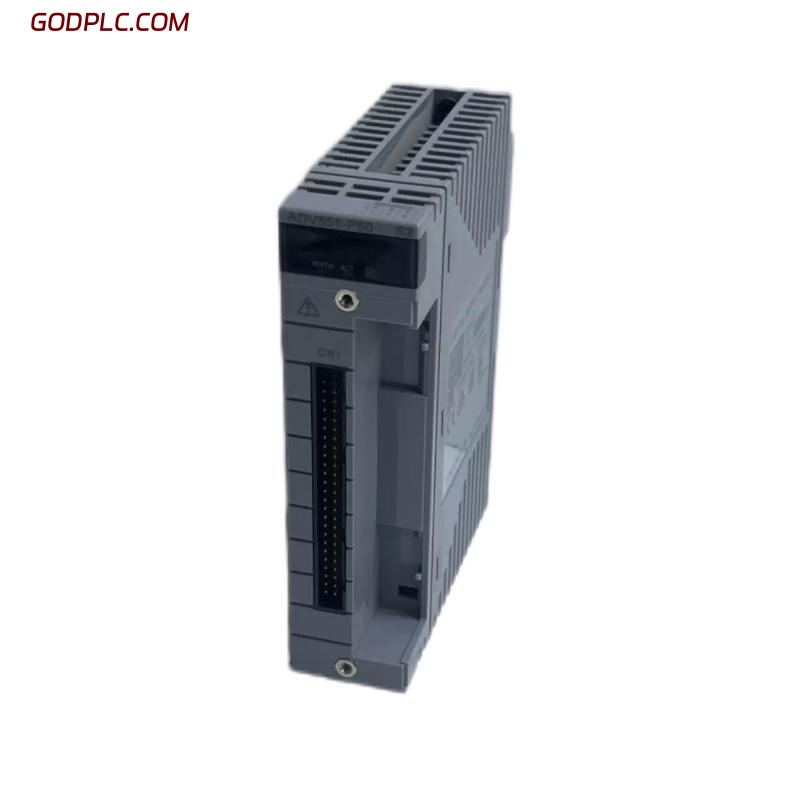

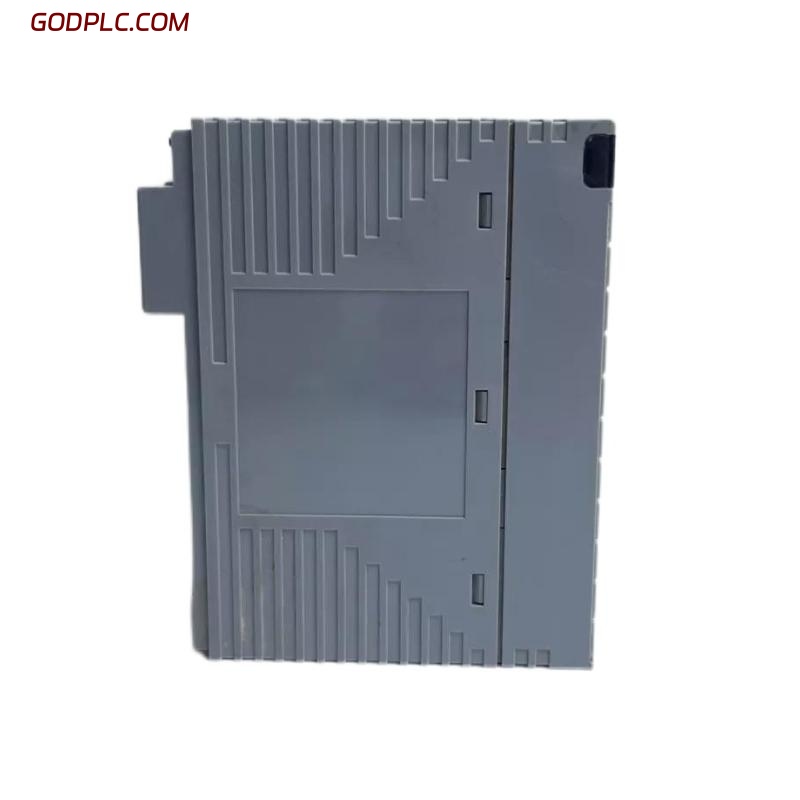

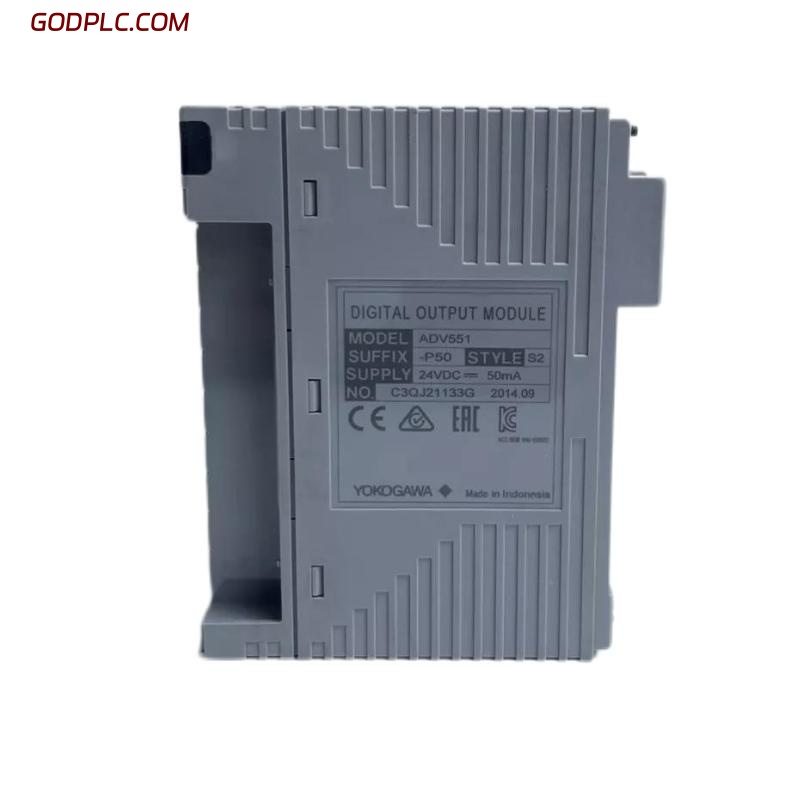

YOKOGAWA ADV551-P50/D5S00 digital output module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Yokogawa ADV551-P50/D5S00 is a 32-channel digital output module used in Yokogawa distributed control systems (DCS) such as the CENTUM VP, ProSafe-RS, and STARDOM series.
It provides isolated current-sink type 24 V DC outputs for controlling relays, solenoids, lamps, and other field devices.
The “P50” indicates the base model with pulse-width/time-proportional output function, while the “/D5S00” specifies a pressure clamp terminal block type connection.
This module is designed for high reliability, fast response, and compact installation in industrial environments.
Key Features
-
32 channels of independent 24 V DC digital outputs.
-
Current-sink type output suitable for industrial field loads.
-
High-speed response and pulse-width output capability.
-
Optical isolation between system and field side.
-
Compact, lightweight plug-in design for Yokogawa FIO base.
-
Maintenance-friendly pressure clamp terminal connection (D5S00).
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | ADV551-P50/D5S00 |
| Product Type | Digital Output Module |
| Number of Channels | 32 output channels |
| Output Type | 24 V DC, current-sink |
| External Power Supply Voltage | 24 V DC nominal (20.4 V – 26.4 V DC range) |
| Maximum Load Current per Channel | 100 mA (at 26.4 V DC) |
| Output ON Voltage (max) | ≤ 2 V DC |
| OFF-state Leakage Current | ≤ 0.1 mA |
| Response Time | ≤ 3 ms (status output), ≤ 10 ms (pulse output) |
| Pulse Width Output Range | 8 ms to 7,200 s (8 ms resolution) |
| Withstanding Voltage | 2 kV AC between output and system, 500 V AC between commons |
| Isolation Method | Optical isolation between field and system bus |
| Field Power Supply | External 24 V DC supply |
| Internal Power Consumption | Approx. 50 mA |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 10 % to 90 % RH (non-condensing) |
| Terminal Type | Pressure clamp terminal block (D5S00 option) |
| Mounting Method | Plug-in type for Yokogawa FIO base or node rack |
| Dimensions (Approx.) | 130 mm (H) × 100 mm (D) × 30 mm (W) |
| Weight (Approx.) | 0.20 kg |
| Material / Finish | Industrial-grade resin housing with conformal coating |
| Certifications | CE, CSA, NRTL compliant |
YOKOGAWA ADV551-P50/D5S00 digital output module is in stock. Please contact us for a quick quote and competitive pricing.
