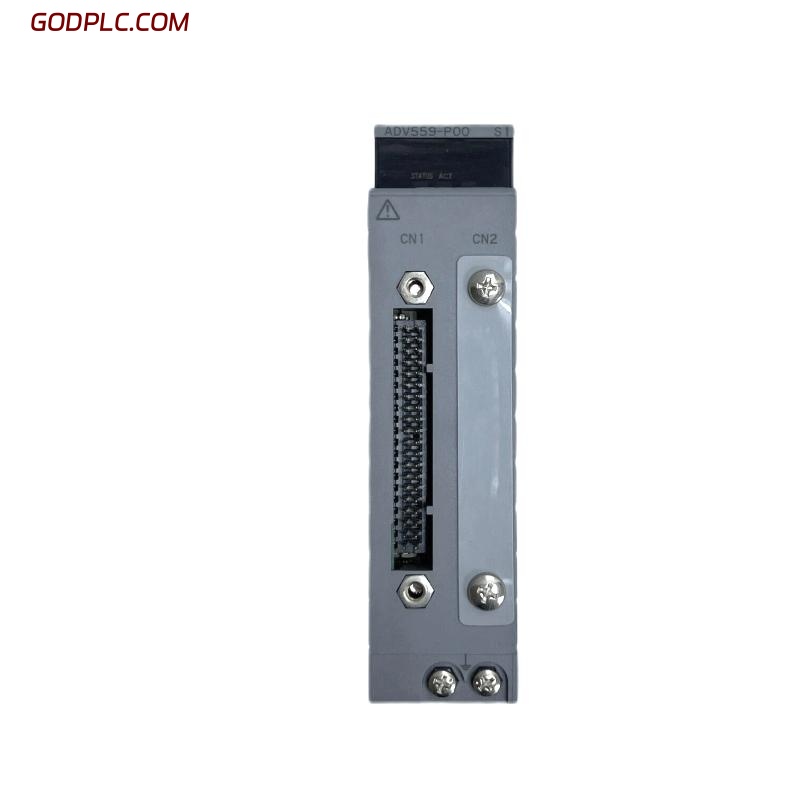

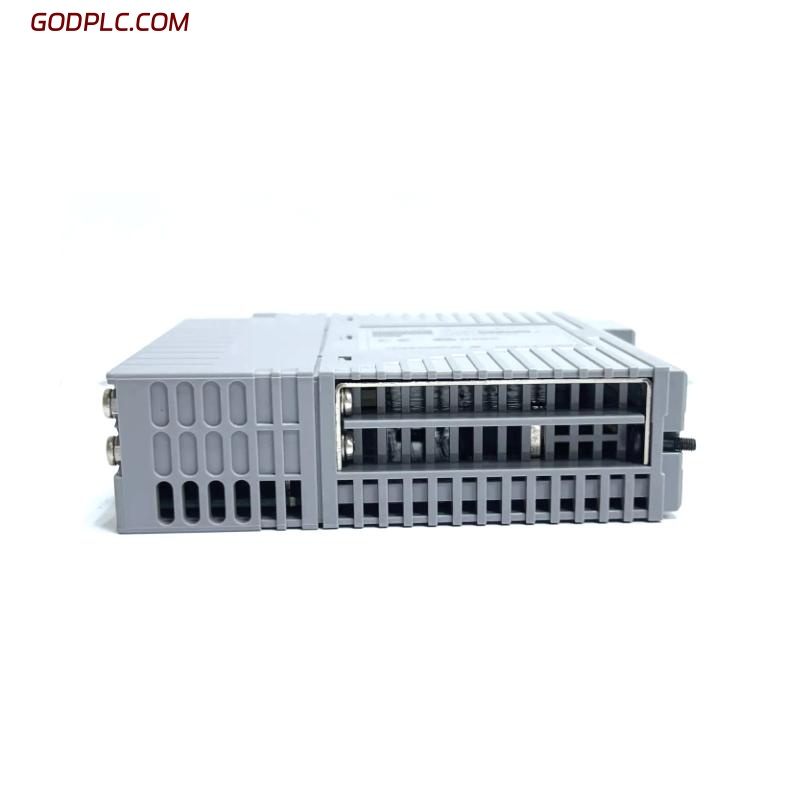

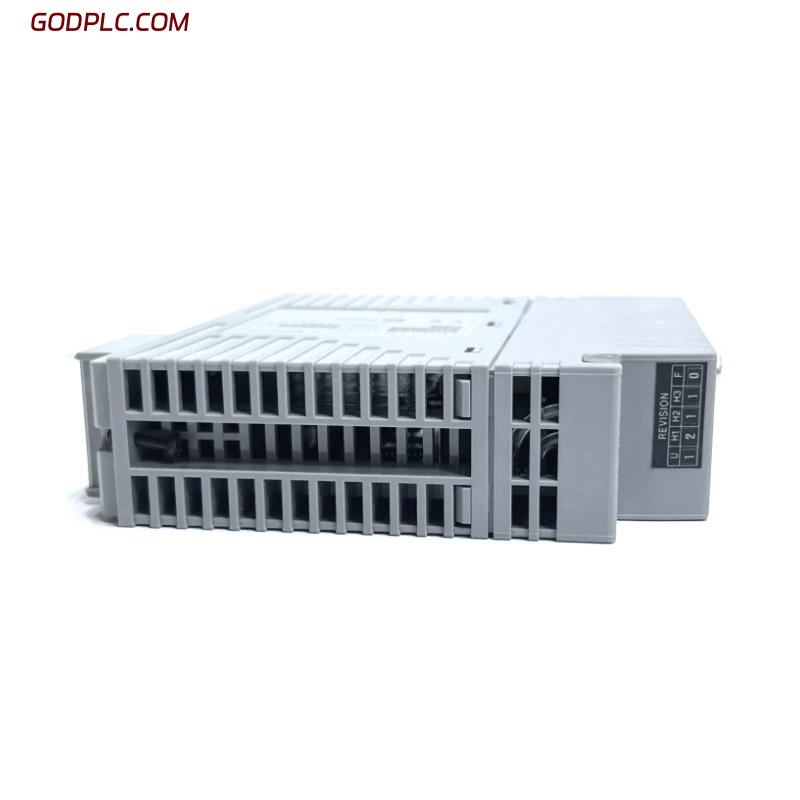

YOKOGAWA ADV559 digital output module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Yokogawa ADV559 is a 32-channel isolated digital output module used in process control and industrial automation systems. It is designed for applications requiring reliable, high-density digital outputs such as solenoids, relays, indicators, and alarms.
The module provides 24 V DC transistor contact (current-sink) outputs with electrical isolation between the system and field circuits. It is widely used in Yokogawa’s CENTUM and FIO series systems for both standard and redundant configurations.
Technical Specifications
| Parameter | Specification / Description |
|---|---|
| Model Number | ADV559 |
| Product Family | Yokogawa Digital Output Module |
| Number of Output Channels | 32 channels |
| Rated Applied Voltage | 24 V DC |
| External Field Supply Voltage Range | 20.4 V DC to 26.4 V DC |
| Output Type | Transistor contact (current-sink) |
| Maximum Load Current per Channel | 100 mA per channel |
| Output ON Voltage (max) | ≤ 2 V DC |
| Leakage Current (Output OFF) | ≤ 0.1 mA |
| Output Response Time | ≤ 16 ms |
| Pulse-Width Output Range (if applicable) | 8 ms to 7,200 s |
| Withstanding Voltage | 2 kV AC (1 minute) between output signal and system circuits 500 V AC between channel commons (every 16 channels) |
| Operating Ambient Temperature | −20 °C to +70 °C |
| Relative Humidity | Up to 95 % (non-condensing) |
| Power Consumption (Typical) | Approx. 570 mA at 5 V DC |
| Mounting Method | Plug-in module for FIO rack or node base |
| Terminal Type | KS-type or dedicated field wiring adapter |
| Dimensions (Approx.) | Height 130 mm × Depth 100 mm × Width 30 mm |
| Weight (Approx.) | 0.30 kg |
YOKOGAWA ADV559 digital output module is in stock. Please contact us for a quick quote and competitive pricing.
