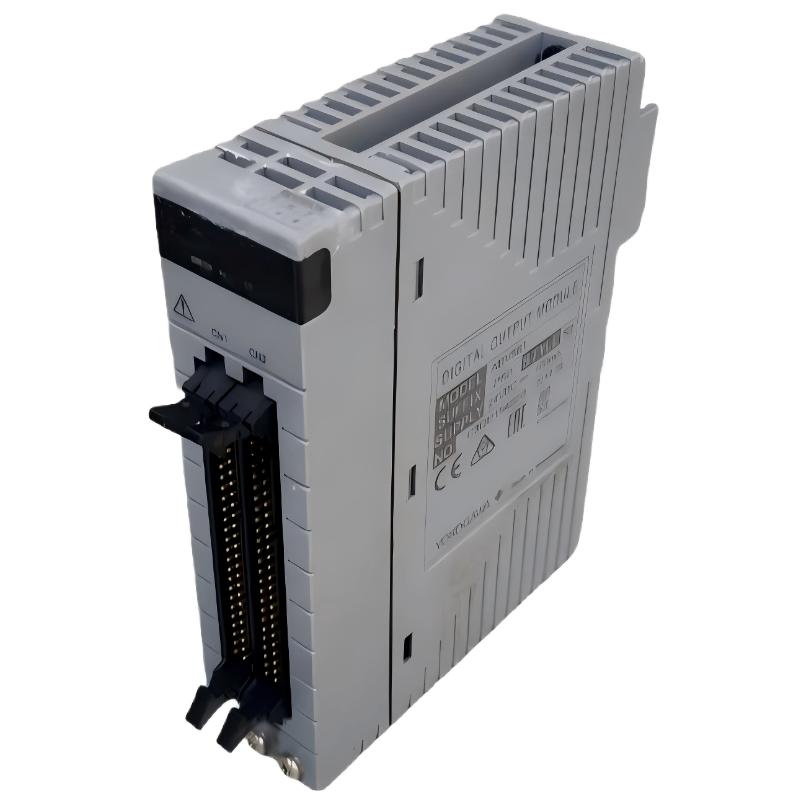

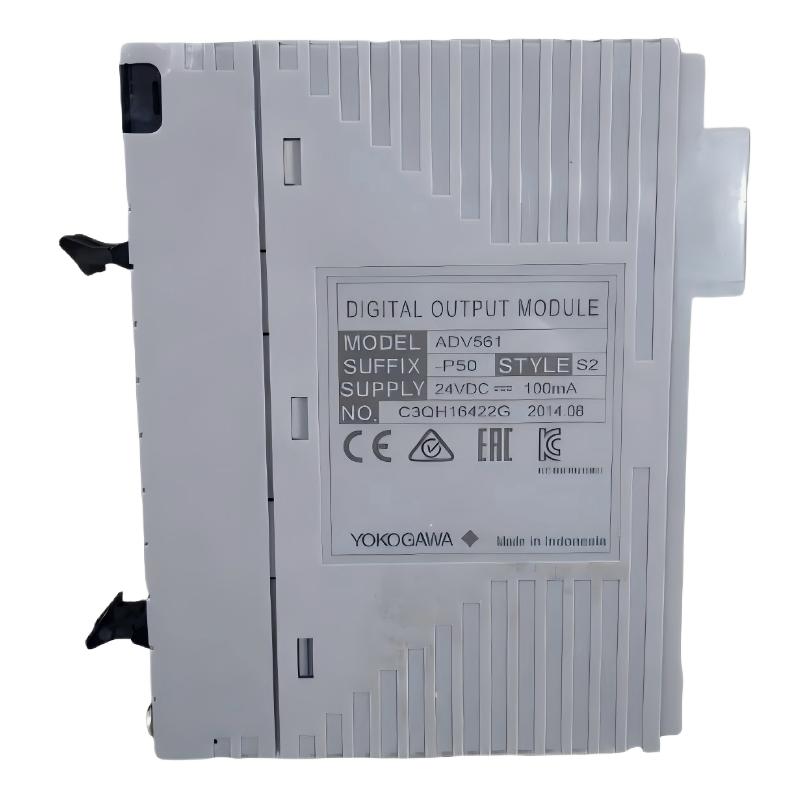

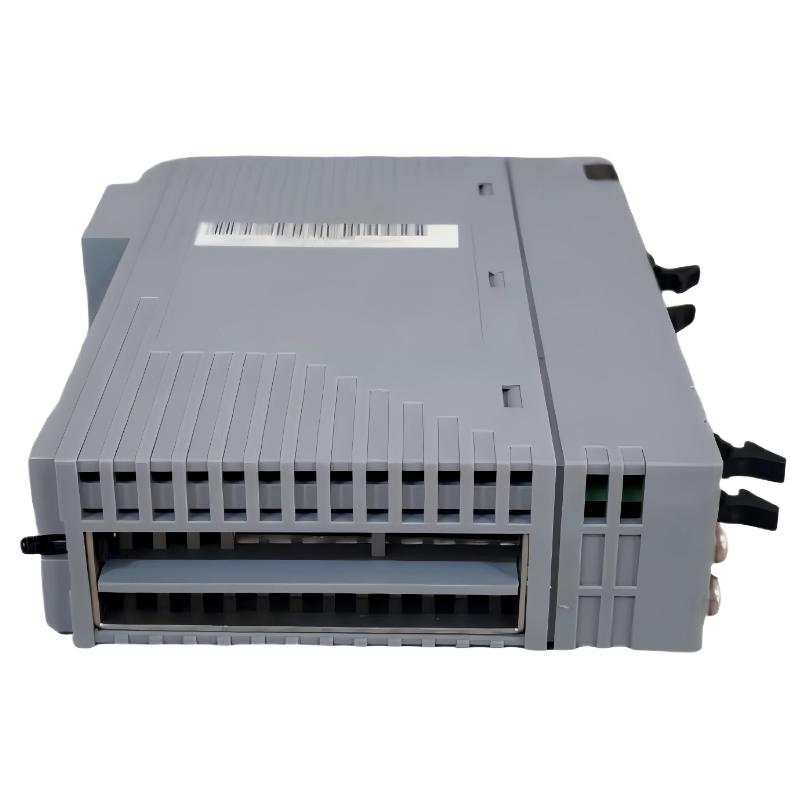

Yokogawa ADV561-P50 S2 Digital Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | ADV561-P50 S2 |
| Product Type | Digital Output Module |
| Manufacturer | Yokogawa |
| Function | Digital signal output control for industrial automation systems |
| System Compatibility | Yokogawa CENTUM VP / CS systems |
| Output Channel Type | Digital output channels |
| Output Signal Type | ON/OFF switching signals |
| Output Form | Relay or transistor output (depending on configuration) |
| Channel Isolation | Inter-channel electrical isolation |
| Load Capability | Industrial-grade load driving capacity |
| Response Characteristics | High-speed switching response |
| Power Supply | System backplane power |
| Power Consumption | Low-power design |
| Diagnostic Function | Channel status monitoring and fault diagnostics |
| Redundancy Support | Supported in redundant architectures |
| Installation Type | Rack-mounted plug-in module |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +75°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Maintenance Type | Low-maintenance modular design |
| Dimensions | 130 x 119.9 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
1. What is the primary function of the ADV561-P50 S2 Digital Output Module?
The module converts control system logic signals into digital ON/OFF outputs used to control field devices such as solenoid valves, relays, and alarm systems in industrial automation environments.
2. How does the ADV561-P50 S2 differ from other ADV561 variants?
The ADV561-P50 S2 represents a specific configuration within the ADV561 series, typically tailored for particular system requirements such as channel configuration or redundancy integration, while maintaining the same core output functionality.
3. What types of outputs are supported?
It supports digital ON/OFF outputs and can be configured for relay or transistor output depending on application requirements and system design.
4. Does the module include channel isolation?
Yes, it provides inter-channel electrical isolation, which reduces interference between channels and improves overall system reliability and safety.
5. Is it compatible with redundant control systems?
Yes, the module is designed to operate within Yokogawa redundant system architectures, ensuring high availability and fault tolerance in critical process applications.
6. Does it provide diagnostic capabilities?
Yes, the module includes built-in diagnostics that monitor output channel status and report faults or abnormal conditions to the control system.
7. What should be considered during installation?
The module should be securely installed in the appropriate rack slot with proper backplane connection. Correct grounding and separation of signal and power wiring are essential to ensure stable operation.
8. Does the module require routine maintenance?
The module is designed for low-maintenance operation, but periodic inspection of output channels, wiring integrity, and system diagnostics is recommended to ensure long-term performance and reliability.
Yokogawa ADV561-P50 S2 Digital Output Module is in stock. Please contact us for a quick quote and competitive pricing.
