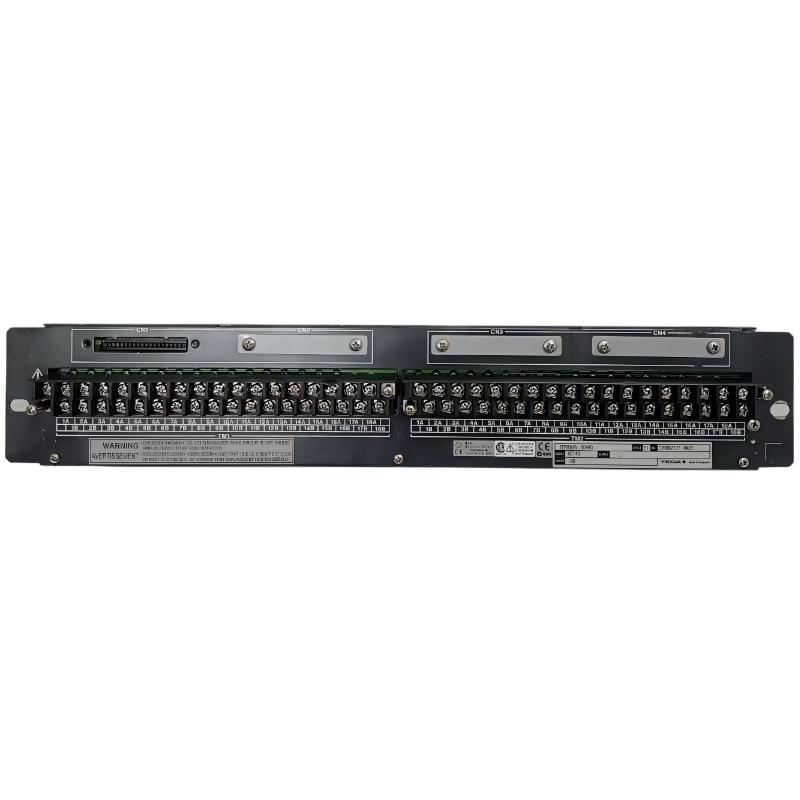

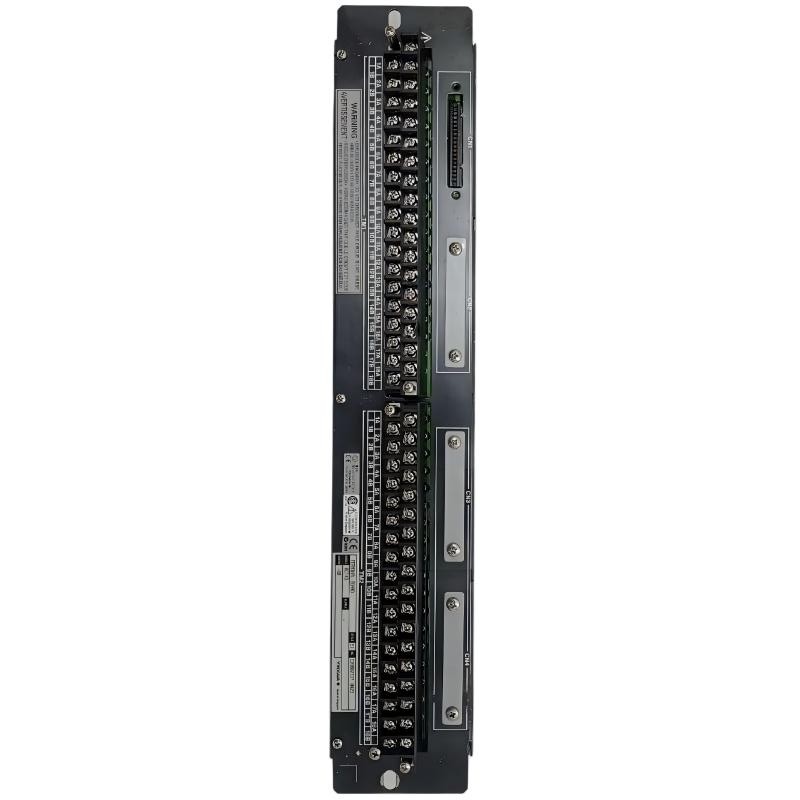

Yokogawa AET4D-00 Thermocouple Terminal Block
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Thermocouple Terminal Block |
| Model | AET4D-00 |
| Manufacturer | Yokogawa |
| Product Type | Thermocouple Terminal Block |
| Function | Provides interface for thermocouple signal connection and distribution |
| Application | Industrial temperature measurement and control systems |
| System Compatibility | Yokogawa DCS and temperature acquisition systems |
| Signal Type | Low-level thermocouple millivolt signals |
| Wiring Method | Screw terminal connections |
| Installation Type | Rack-mounted / control cabinet installation |
| Insulation | Industrial-grade high insulation design |
| EMI Protection | High electromagnetic interference resistance |
| Cold Junction Compensation | Supported via system-level configuration |
| Operating Temperature | -20°C to +70°C |
| Environment | Industrial control cabinet environments |
| Dimensions | 482.6 × 88.1 × 85 mm |
| Weight | 1.8 kg |
FAQ
1. What is the main function of the AET4D-00 Thermocouple Terminal Block?
The AET4D-00 is used to connect thermocouple sensors to control systems, enabling stable signal collection and distribution for industrial temperature measurement applications.
2. What types of signals does it handle?
It is specifically designed for low-level thermocouple millivolt signals, typically from thermocouples such as Type K, J, T, or others depending on system configuration.
3. Where is this terminal block typically used?
It is widely used in Yokogawa distributed control systems (DCS) and industrial temperature monitoring systems as a field signal interface module.
4. How does it ensure accurate temperature measurement?
The design minimizes electrical noise and interference, helping preserve the integrity of weak thermocouple signals during transmission to the control system.
5. Does it support cold junction compensation?
Yes, cold junction compensation is supported at the system level to ensure accurate temperature readings.
6. What are the advantages of screw terminal connections?
Screw terminals provide secure, vibration-resistant connections and allow easy maintenance, rewiring, and troubleshooting in industrial environments.
7. What should be considered during installation?
Proper polarity must be maintained, wiring should be securely tightened, and signal cables should be routed away from high-power lines to reduce interference.
8. How does this terminal block improve system reliability?
By providing stable signal interfaces and reducing noise interference, it helps prevent signal drift and wiring errors, improving overall temperature measurement reliability.
Yokogawa AET4D-00 Thermocouple Terminal Block is in stock. Please contact us for a quick quote and competitive pricing.
