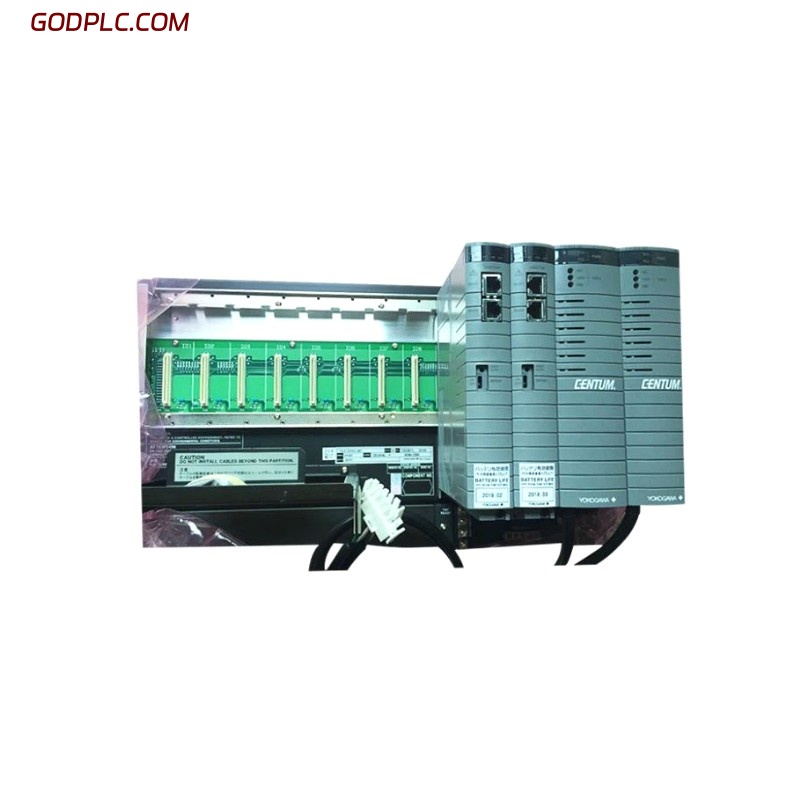

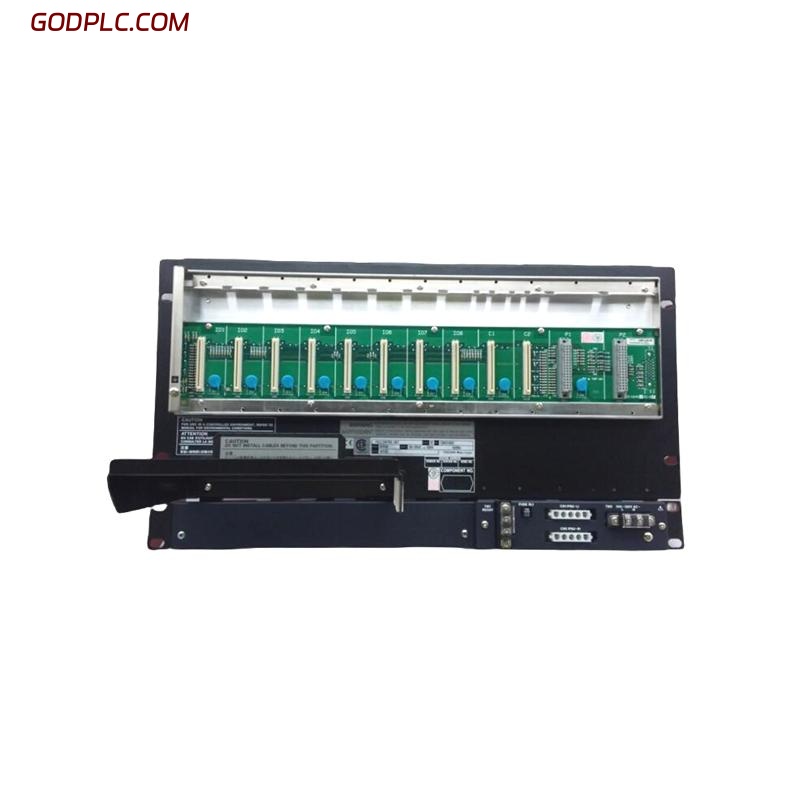

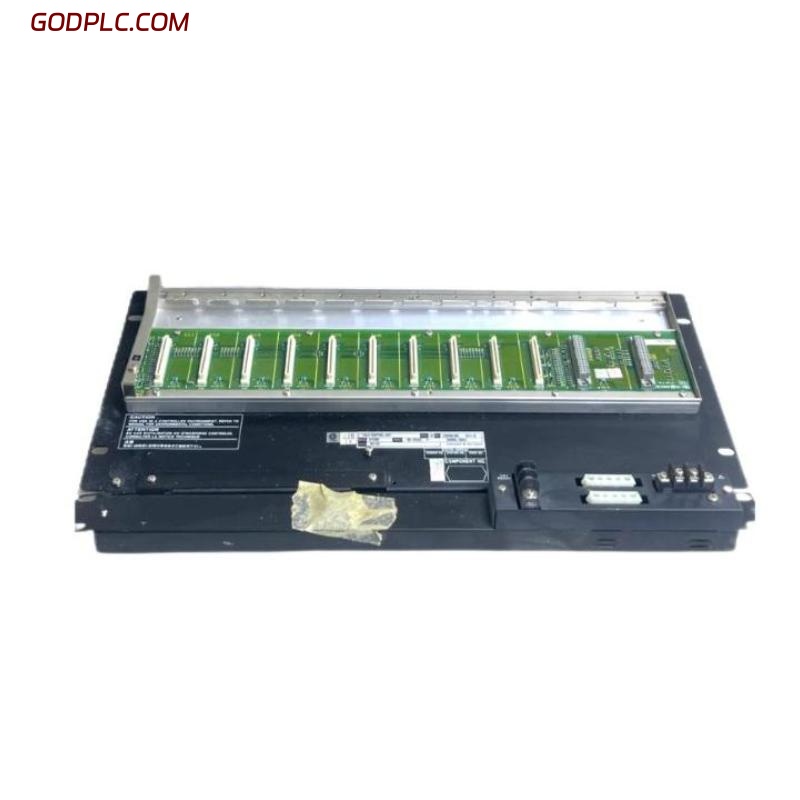

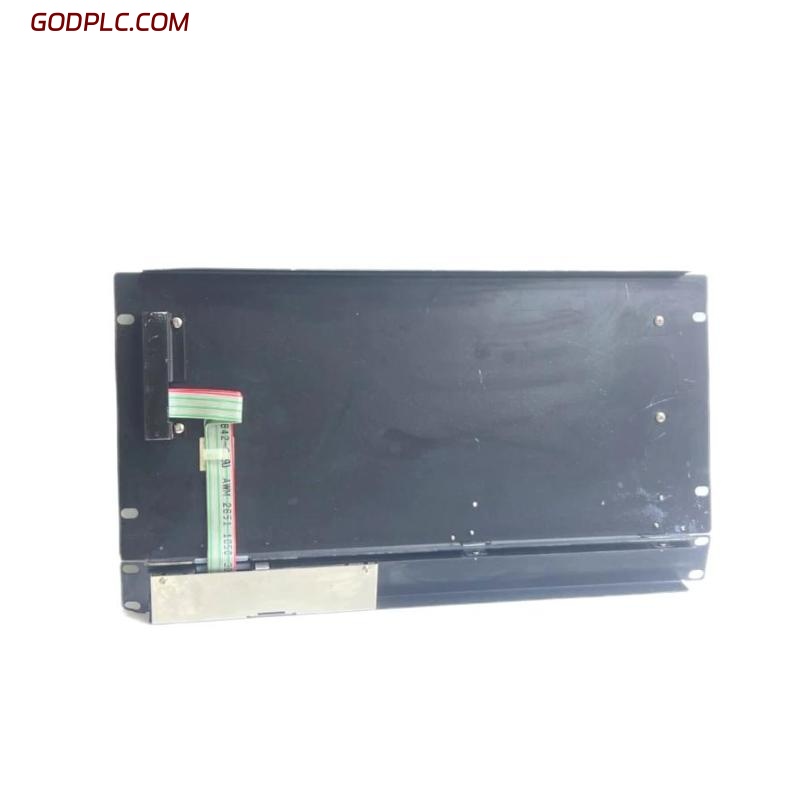

Yokogawa AFV30D-S41152 Duplexed Field Control Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AFV30D‑S41152 |
| Type | Duplexed Field Control Unit (for Vnet/IP and FIO, 19‑inch rack mountable) |
| Processor | VR5532 (~350 MHz) |
| Main Memory Capacity | 128 MB |
| Memory Retention During Power Failure | Up to 72 hours with battery‑backed main memory |
| Communication Interface | Dual‑redundant Vnet/IP |
| Number of Node Units Connectable | Maximum 13 per FCU |
| Power Supply Option | 100‑120 V AC input (as indicated by suffix “1”) |
| External Dimensions | Width ≈ 482.6 mm × Depth ≈ 465.1 mm × Height ≈ 207 mm |
| Weight | Approx. 8.0 kg |
FAQ
Q1: What does the suffix “‑S41152” in AFV30D‑S41152 represent?
A1: The suffix “S41152” decodes as: “S” for the CP461‑based standard duplexed version, “4” indicating dual‑redundant Vnet/IP and dual power supply, “1” for 100‑120 V AC power supply, “5” meaning basic type with no explosion protection, and “2” denoting revision R6.01 or later.
Q2: Is the AFV30D‑S41152 designed for redundancy in both network communication and power supply?
A2: Yes — being a “D” (duplexed) model, it supports dual redundant Vnet/IP communication channels and dual‑redundant power supply modules to maintain system availability.
Q3: What are the physical dimensions and weight of the AFV30D‑S41152?
A3: The unit’s external dimensions are approximately 482.6 mm in width, 465.1 mm in depth, and 207 mm in height. The weight is around 8.0 kg.
Q4: How many node units can be connected to this Field Control Unit (FCU)?
A4: Up to 13 node units may be connected to this FCU under the specified system configuration.
Q5: What power input does the suffix “1” in the model number indicate?
A5: The “1” in the suffix indicates the unit is configured for a 100‑120 V AC power supply input.
Q6: How long will the memory retain data if there is a loss of power?
A6: The main memory is battery‑backed and capable of retaining data for up to 72 hours during a power interruption.
Q7: Is this FCU appropriate for mission‑critical industrial process control systems?
A7: Yes. Its duplexed architecture with dual redundancy in power and network, combined with robust memory backup and large memory capacity, makes it suitable for high‑availability industrial control applications.
Q8: Where can I find detailed installation, wiring and configuration guidance for this unit?
A8: Installation and configuration instructions, including suffix‑code interpretation and system wiring guidance, are provided in the manufacturer’s hardware specification documents for the AFV30D series.
Yokogawa AFV30D-S41152 Duplexed Field Control Unit is in stock. Please contact us for a quick quote and competitive pricing.
