Technical Specifications
| Parameter | Specification |
|---|---|

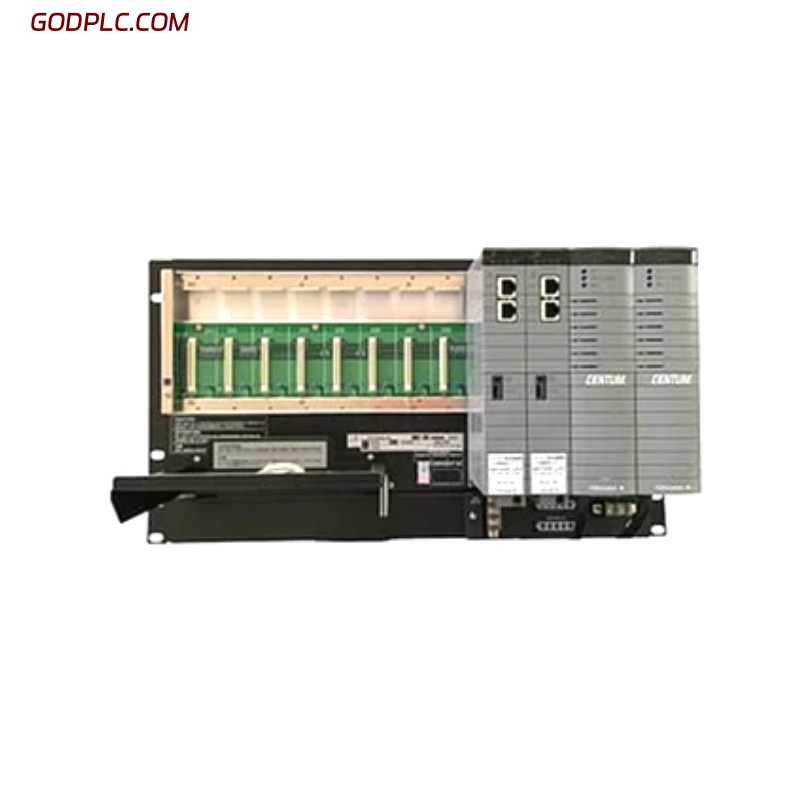

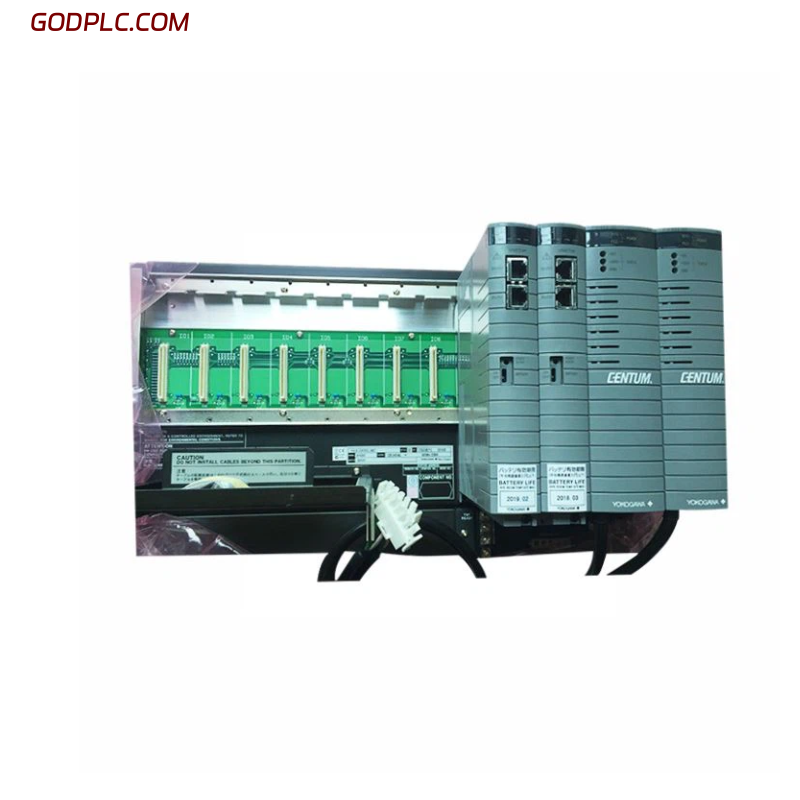

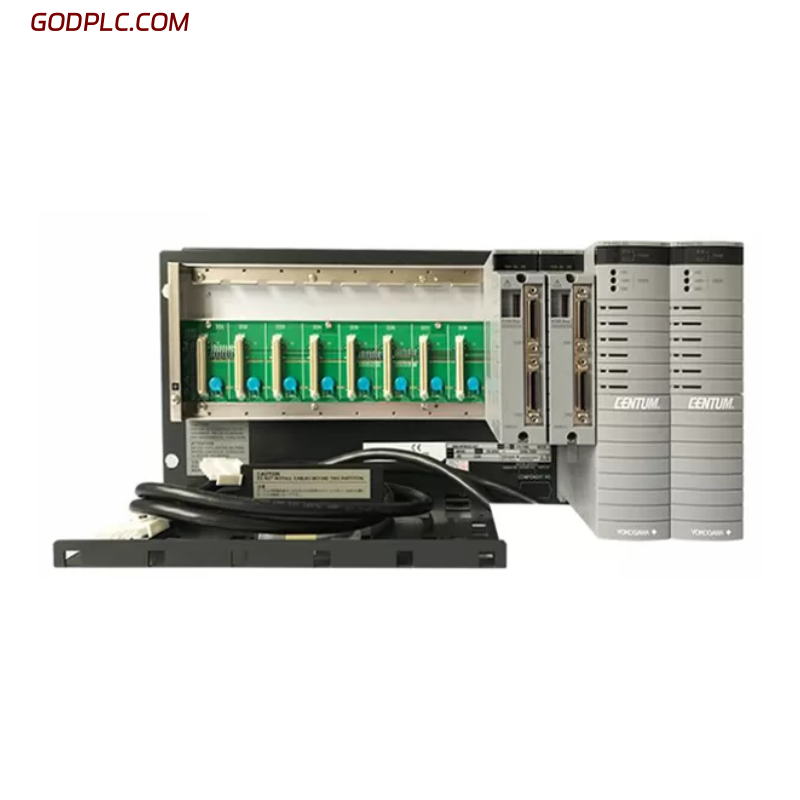

| Model | AFV30S‑S41151 |
| Type | Single Field Control Unit (for Vnet/IP and FIO, 19‑inch rack‑mountable) |
| Memory Protection During Power Failure | Battery‑backed main memory (up to 72 hours) |
| Communication Interface | Dual‑redundant Vnet/IP |
| Power Supply Inputs | 100‑120 V AC / 220‑240 V AC / 24 V DC |
| External Dimensions | Width ≈ 482.6 mm × Depth ≈ 465.1 mm × Height ≈ 207 mm |
| Weight | Approx. 7.0 kg |
FAQ
Q1: What does the suffix “‑S41151” in AFV30S‑S41151 indicate?
A1: The suffix “S41151” suggests the unit is a standard single‑controller version (“S”), supports dual‑redundant communication and power (“4”), is the first version of that configuration (“1”), uses 100‑120 V AC input (“1”), belongs to basic type without explosion protection (“5”), and is the first revision (“1”).
Q2: Does this model support redundant power and communication paths?
A2: Yes. Although defined as a single‑controller version (S), it retains dual–redundant Vnet/IP links and power supply input options, which improve fault tolerance.
Q3: What are the physical size and weight of the unit?
A3: The AFV30S‑S41151 has dimensions of approximately 482.6 mm (width) × 465.1 mm (depth) × 207 mm (height) and weighs about 7.0 kg.
Q4: What power input options does this unit support?
A4: It supports 100‑120 V AC, 220‑240 V AC or 24 V DC input, depending on the specific suffix code applied to the model.
Q5: How long can the memory retain data during a power outage?
A5: The main memory is backed by a battery and can preserve data for up to ~72 hours if primary power is lost.
Q6: How many node units can be connected to this Field Control Unit?
A6: The specification allows for a maximum of 13 node units to be connected to the FCU in standard configuration.
Q7: Is this unit suitable for mission‑critical industrial process control systems?
A7: Yes — it is designed for industrial automation environments requiring reliability, with redundant communication interfaces and advanced memory protection.
Q8: Where can I find detailed installation and configuration documentation?
A8: Full installation guides, wiring diagrams, and suffix‑code interpretation information are provided in the manufacturer’s hardware specification manuals for the AFV30S series.
