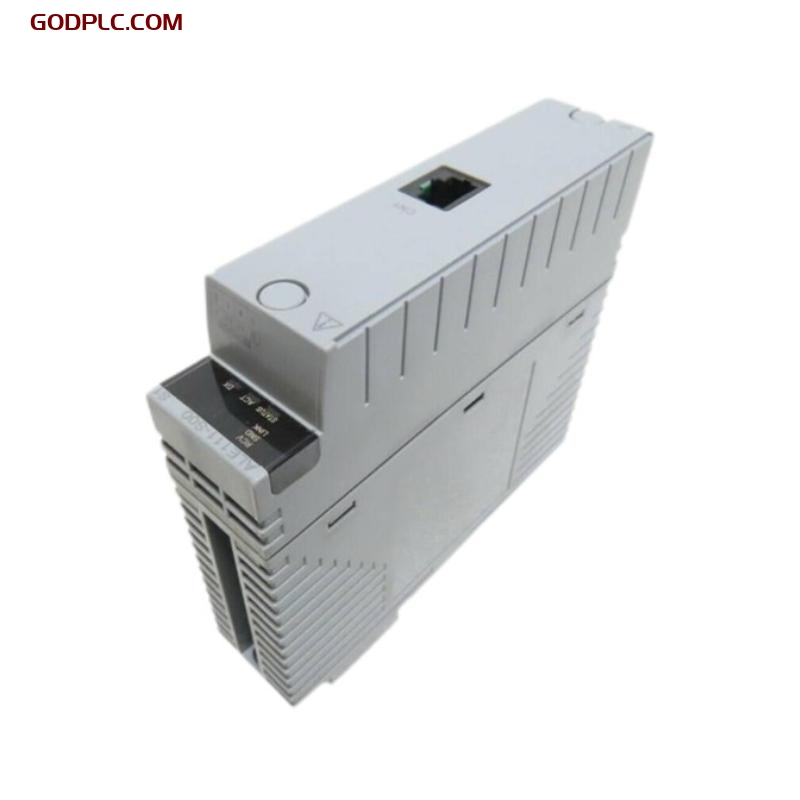

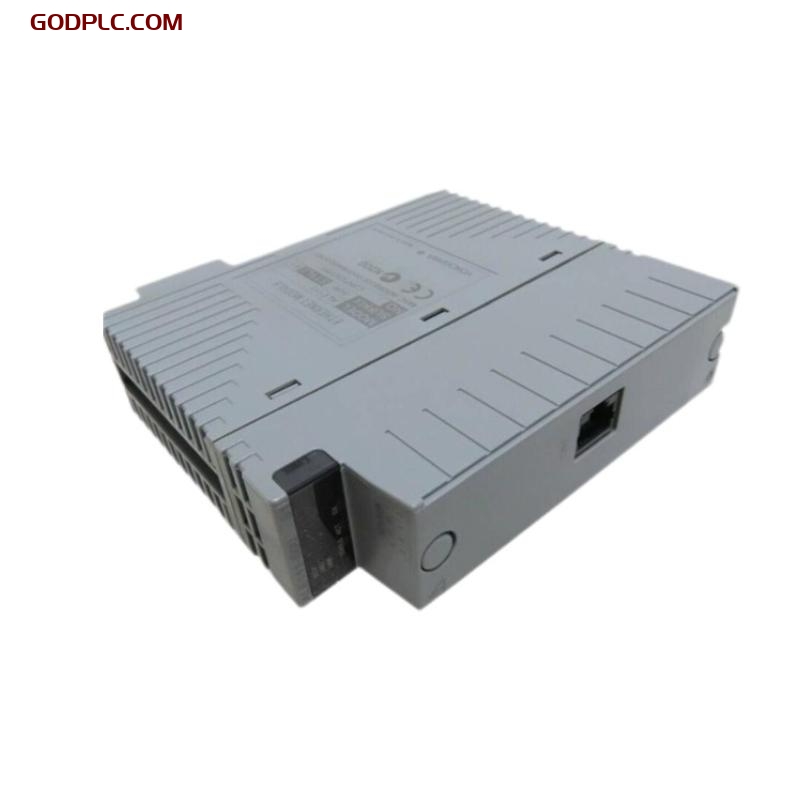

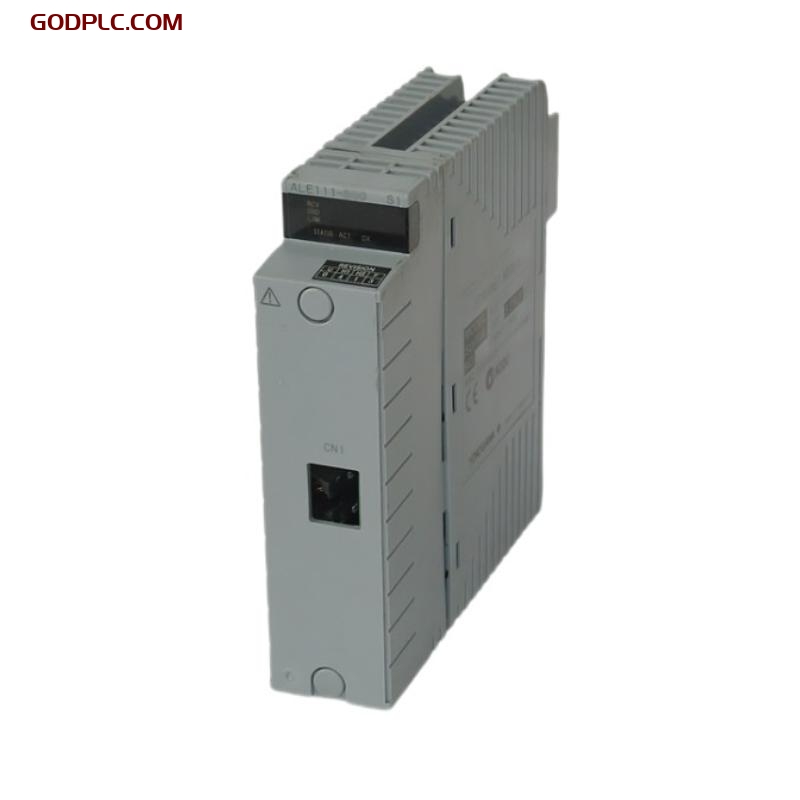

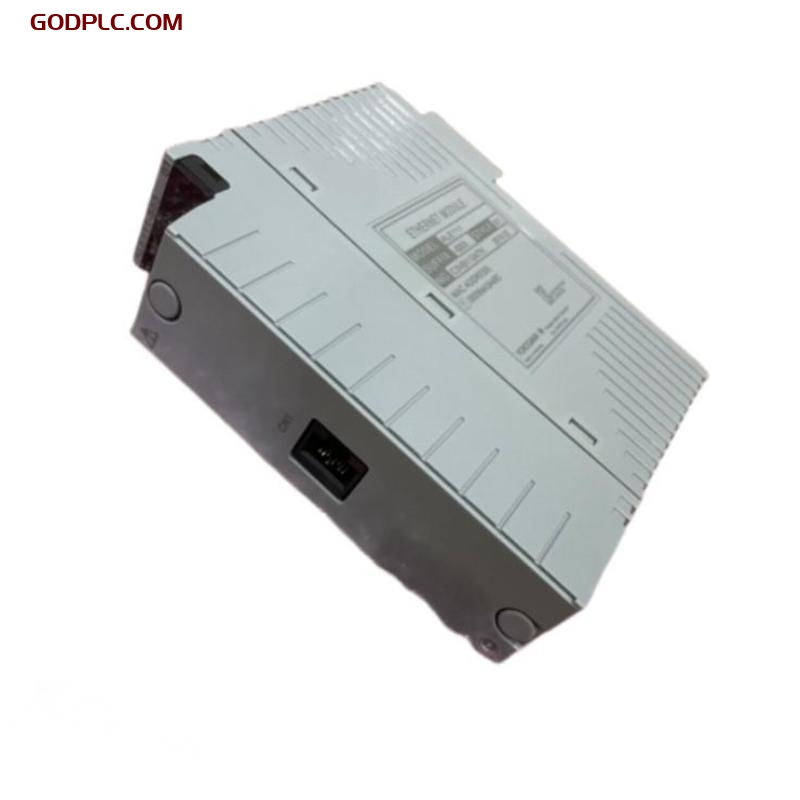

Yokogawa ALE111-S00 Ethernet Communication Module
1. Product Overview
The Yokogawa ALE111-S00 Ethernet Communication Module is a high-performance industrial networking module designed for seamless data exchange between control systems and field devices. Specifically engineered for integration with Yokogawa’s CENTUM VP and ProSafe-RS systems, this module supports the IEEE 802.3 10BASE-T standard, offering reliable and consistent communication across various automation networks.
With support for multiple industrial protocols and robust design features, the ALE111-S00 enables stable long-distance data transmission and efficient network configuration. It ensures effective peer-to-peer communication, critical for real-time control and monitoring in diverse industrial environments such as power generation, oil & gas, chemicals, and water treatment systems.
2. Key Features
-
Standards-Based Ethernet Communication: Supports IEEE 802.3 10BASE-T protocol for robust data transmission.
-
Protocol Versatility: Compatible with FA-M3, Modbus, MELSEC, PLC-5/SLC500, and other industrial systems.
-
Industrial Reliability: Engineered for high EMI resistance and stable performance in harsh environments.
-
Modular Design: Easily integrates into existing Yokogawa systems using rack-based installation.
-
Long-Distance Communication: Enables peer-to-peer communication with up to 100 meters transmission range.
-
Plug-and-Play Integration: Installs directly into supported Yokogawa modules with no external power supply required.
-
Status Indication LEDs: Provides real-time operational feedback through module LED indicators.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 125.5 x 32.8 mm |
| Weight | 0.3 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | ALE111-S00 |
| Manufacturer | Yokogawa Electric Corporation |
| Installation | Rack-mounted on ANB10, ANB11, ANR10, AFF50, etc. |
| System Compatibility | CENTUM VP, ProSafe-RS |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Communication Specifications
| Item | Specification |
|---|---|
| Communication Type | Ethernet (IEEE 802.3 10BASE-T) |
| Communication Speed | 10 Mbps |
| Connector Type | RJ-45 |
| Max Cable Length | 100 meters |
| Supported Protocols | FA-M3, Modbus, YFGW, MELSEC, PLC-5, etc. |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Supplied via system backplane |
| Voltage | 5 V DC |
| Power Consumption | Approx. 0.5 A |
| Status Indicators | LEDs for link, activity, error |
4. Industry Applications
-
Oil & Gas: Facilitates communication between control centers and field instruments in exploration and refining.
-
Chemical & Pharmaceutical: Provides network communication for batch and continuous process automation systems.
-
Power Generation: Ensures high-reliability data exchange between DCS components in thermal and renewable plants.
-
Water & Wastewater Treatment: Connects field sensors and actuators for remote monitoring and control.
-
Manufacturing: Enhances production line automation and real-time data collection for industrial processes.
The Yokogawa ALE111-S00 module offers a robust, flexible solution for industrial Ethernet communication, supporting real-time performance and system expandability in modern control environments.
Yokogawa ALE111-S00 Ethernet Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
